Removal And Installation: Radiator: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the cooling module. Refer to: Cooling Module .
Detach the harness retainer, remove the bolts, and the cooling fan assembly.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

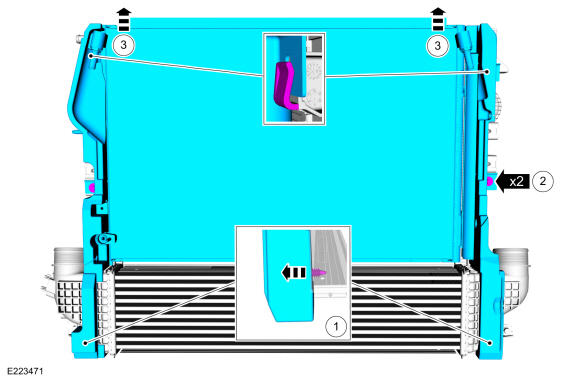

1. Detach the pin-type retainers securing the condenser seals.
2. Remove the bolts.
  Torque: 55 lb.in (6.2 Nm)
3. Remove the condenser and the seals.
Courtesy of FORD MOTOR COMPANY

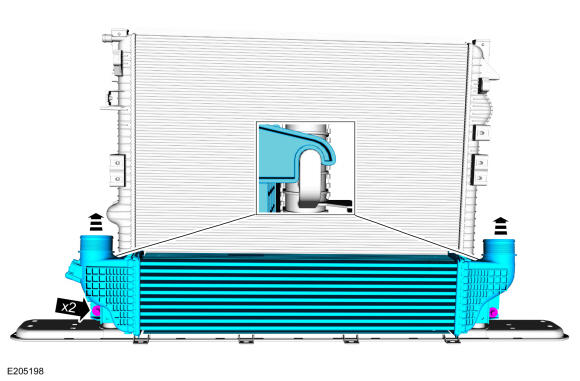

Remove the bolts and CAC
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

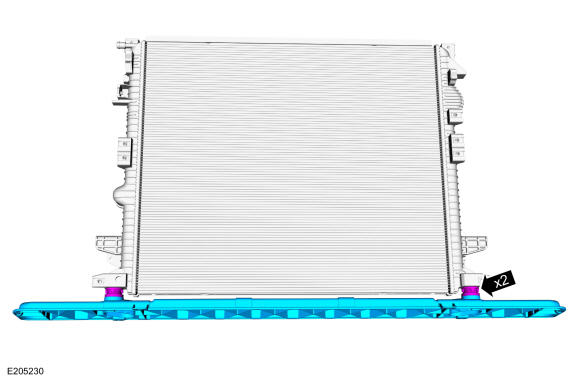

Remove the lower radiator support.

Courtesy of FORD MOTOR COMPANY
Remove the lower isolators and upper mounts.

Courtesy of FORD MOTOR COMPANY
