Hot Market with Start/Stop
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

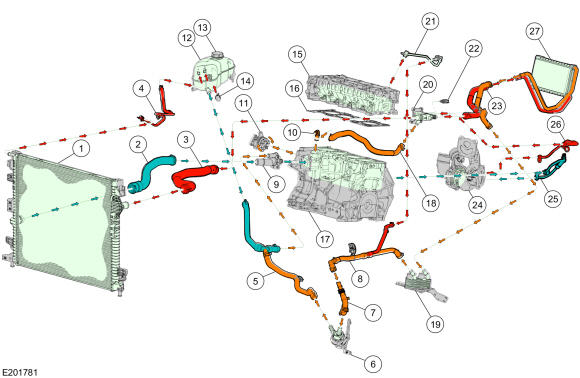

| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Upper radiator hose |
| 4 | Radiator-to-degas bottle hose |
| 5 | Heater outlet hose |
| 6 | Cabin heater coolant pump |
| 7 | Cabin heater coolant pump inlet hose |
| 8 | Transmission oil warmer outlet hose |
| 9 | Thermostat Housing |
| 10 | Coolant bypass connector |
| 11 | Coolant pump |
| 12 | Degas bottle |
| 13 | Pressure relief cap |
| 14 | Degas bottle cap |
| 15 | Cylinder head |
| 16 | Cylinder head gasket |
| 17 | Cylinder block |
| 18 | Coolant bypass hose |
| 19 | Transmission oil cooler |
| 20 | Coolant outlet adapter |
| 21 | Coolant outlet tube |
| 22 | ECT sensor |
| 23 | Heater hose |
| 24 | Turbocharger |
| 25 | Turbocharger inlet tube |
| 26 | Turbocharger outlet tube |
| 27 | Heater core |
