Upper Intake Manifold: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

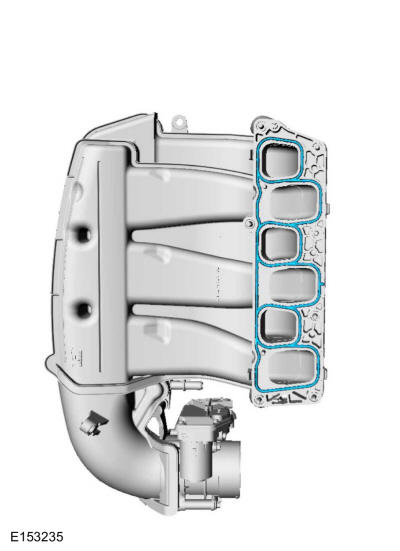

Install the new upper intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY
Install the intake manifold and the bolts.
Torque: Stage 1: Tighten bolts 1 and 3-7 to 10 Nm (89 lb-in) plus an additional: 45 deg. Stage 2: Tighten bolt 2 to 10 Nm (89 lb-in) plus an additional: 90 deg.

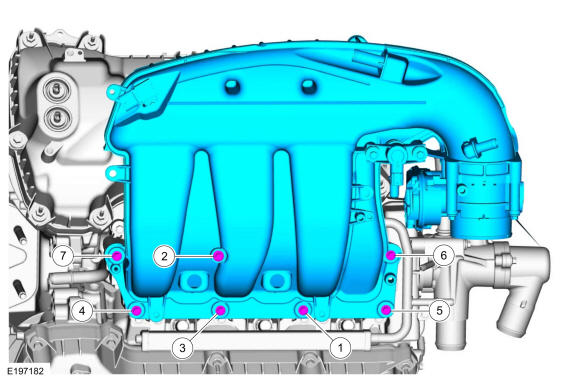

Fig 1: Upper Intake Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY

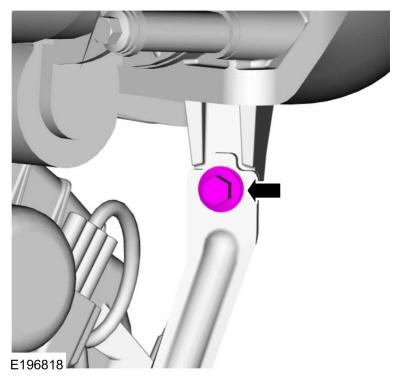

Install the upper intake manifold support bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the coolant hose and connect the retainers.

Courtesy of FORD MOTOR COMPANY

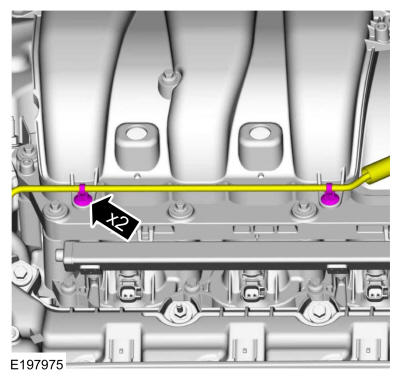

Connect the vacuum hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

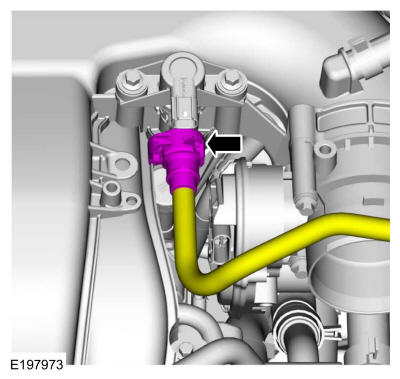

Connect the EVAP tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

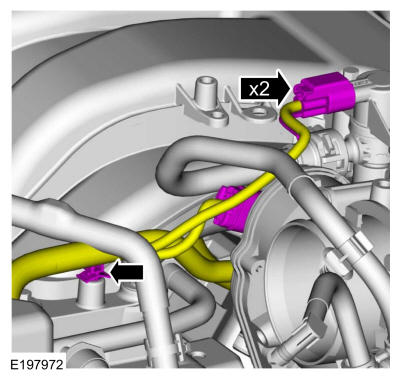

Connect the electrical connectors and the wire retainer.

Courtesy of FORD MOTOR COMPANY

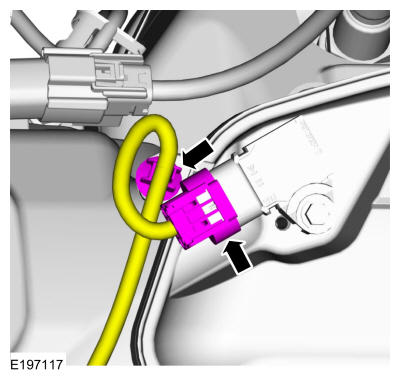

Connect the electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
