Oil Pump: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

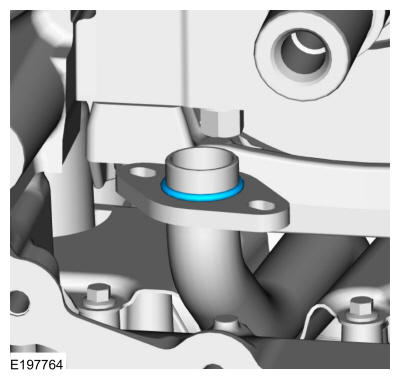

Install a new O-ring on the oil pickup tube.

Courtesy of FORD MOTOR COMPANY
Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

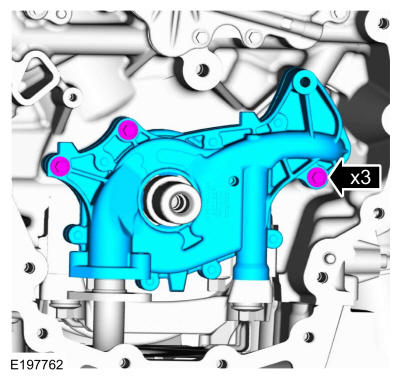

Install the oil pump and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the oil pickup tube and install the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the crankshaft sprocket with the timing mark out.

Courtesy of FORD MOTOR COMPANY
NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY
Install the lower LH timing chain guide and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
1. Position the tensioner in a soft-jawed vise.
2. Using pliers, squeeze the ends of the ratchet wire clip together.
3. Using the soft-jawed vise, compress the plunger to the reset position.
4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.
Courtesy of FORD MOTOR COMPANY
NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.
1. Install the timing chain tensioner and the bolts.
  Torque: 89 lb.in (10 Nm)
2. Remove the lockpin.
Courtesy of FORD MOTOR COMPANY
- As a post-check, verify correct alignment of all timing marks.
- There are 48 links in between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
- There are 35 links in between LH intake VCT assembly colored link (2) and the 2 crankshaft sprocket links (3).
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY
Install the RH oil tube and the bolts.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 60 deg.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1248 Camshaft holding tools.

Courtesy of FORD MOTOR COMPANY
Install the LH oil tube and the bolts.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 60 deg.

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .
