Oil Pressure Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Vehicles equipped with an oil cooler
Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Remove the Cooling Fan Motor and Shroud. Refer to: Cooling Fan Motor and Shroud .
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
- Disconnect the engine oil cooler inlet hose retainer.
- Remove the nut and the position aside the A/C compressor inlet tube bracket.
Courtesy of FORD MOTOR COMPANY
Disconnect the A/C pressure switch and retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.
- Remove the nut and the position aside the A/C compressor inlet tube.
- Remove and discard the O-ring seal.
Courtesy of FORD MOTOR COMPANY

Vehicles not equipped with an oil cooler
Remove the retainers and the upper air deflector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the cooling module is secure before removing the bottom cooling module support panel.
1. Remove the upper cooling module support brackets.
2. Using cable ties or mechanic wire through the upper location holes support the cooling module. Use the General Equipment: Cable Ties
Courtesy of FORD MOTOR COMPANY
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the front underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the cooling module support module.

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Vehicle with oil cooler shown.

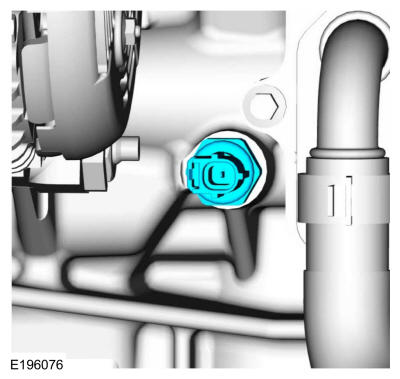

Disconnect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the oil pressure switch.

Courtesy of FORD MOTOR COMPANY
