Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Apply thread sealant with PTFE to the oil pressure switch threads prior to installation.

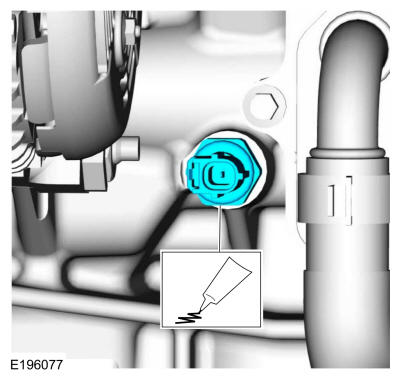

Install the oil pressure switch.

Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Torque: Stage 1: 124 lb.in (14 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY

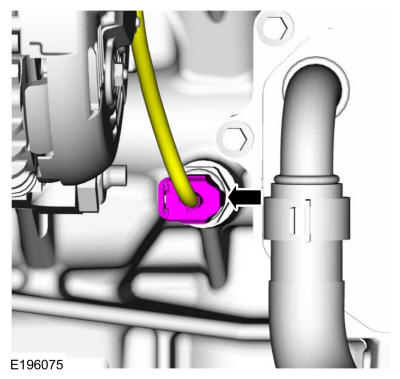

Connect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY

Vehicles not equipped with an oil cooler
Install the cooling module support panel and the retainers.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Install the front underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
1. Remove the cable ties or the mechanics wire.
2. Install the upper cooling support brackets.
Courtesy of FORD MOTOR COMPANY
Install the upper air deflector and retainers.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with an oil cooler
NOTE: Only use the specified material to lubricate the seals.
- Install a new O-ring seal.
  Material: Motorcraft® PAG Refrigerant Compressor Oil / YN-12-D (WSH-M1C231-B)

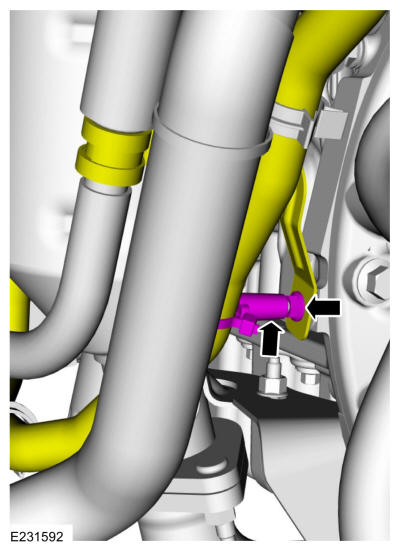

- Position back the A/C compressor inlet tube and install the nut.
  Torque: 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

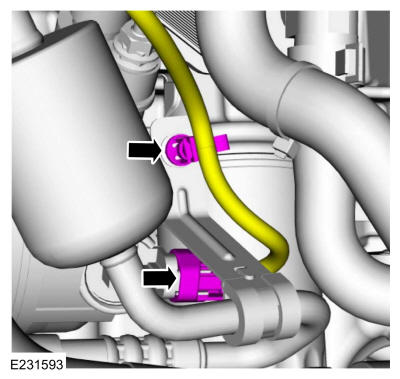

Connect the A/C pressure switch and retainer.

Courtesy of FORD MOTOR COMPANY
- Position back the A/C compressor inlet tube bracket and install the nut.
  Torque: 97 lb.in (11 Nm)

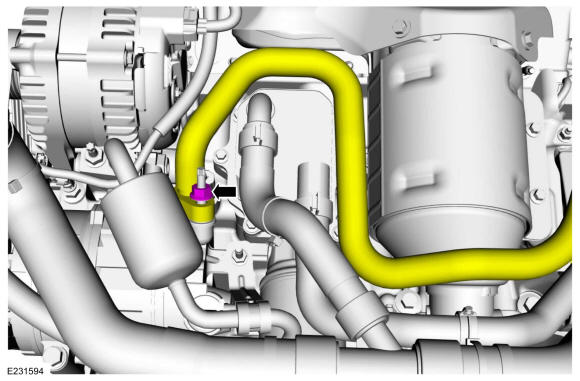

- Connect the engine oil cooler inlet hose retainer.
Courtesy of FORD MOTOR COMPANY
Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the Cooling Fan Motor and Shroud. Refer to: Cooling Fan Motor and Shroud .
Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
