Oil Pan: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

LHD AWD/LHD FWD

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

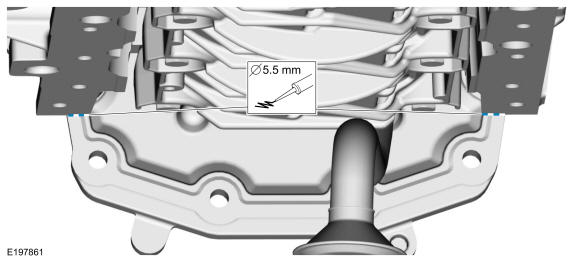

Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft engine front cover-to-cylinder block joint areas.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: The oil pan and the 4 specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

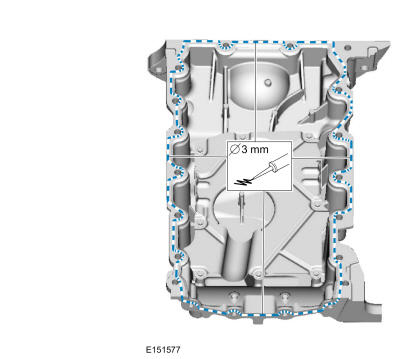

Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

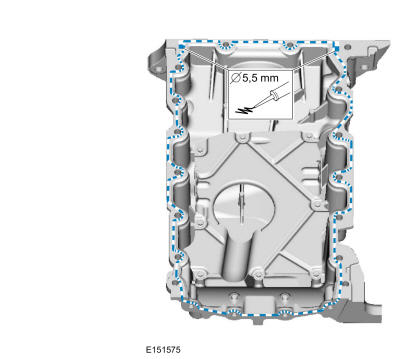

Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: The oil pan and the 4 specified bolts must be installed within 4 minutes of the start of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

Install the oil pan and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not torque at this time.

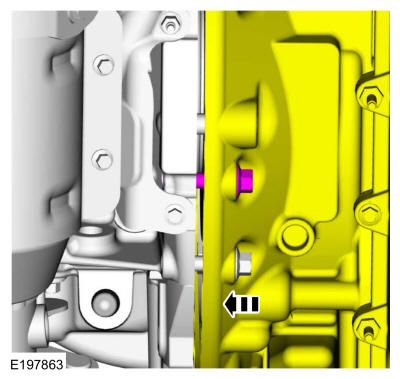

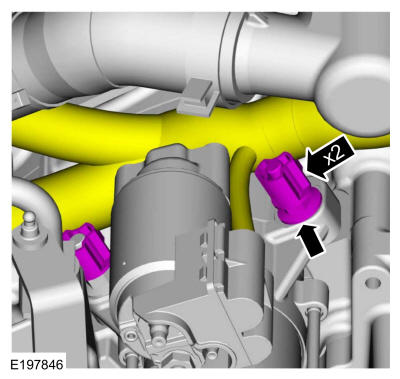

Draw the bellhousing up to the engine by tightening the LH bellhousing-to-engine bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: AWD vehicle shown, FWD similar. Parts removed from graphic for clarity.

NOTE: Do not torque at this time.

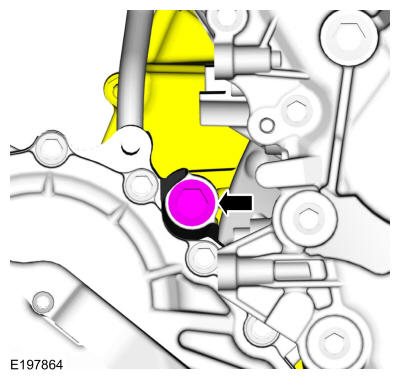

Draw the bellhousing up to the engine by tightening the RH engine-to-bellhousing bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not torque at this time.

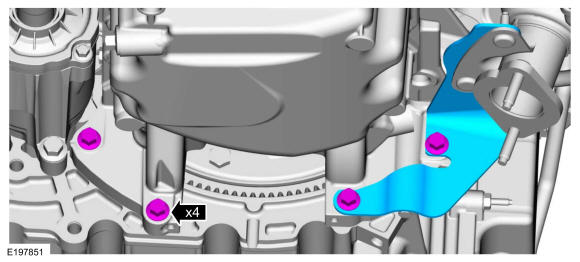

Install the LH catalytic converter bracket and the oil pan-to-bellhousing bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not torque at this time.

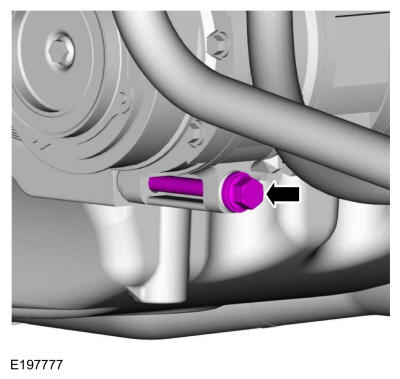

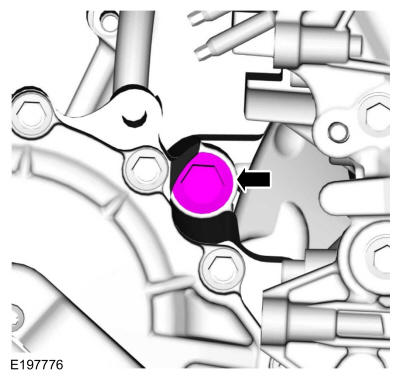

Install the A/C compressor bolt finger tight.

Courtesy of FORD MOTOR COMPANY

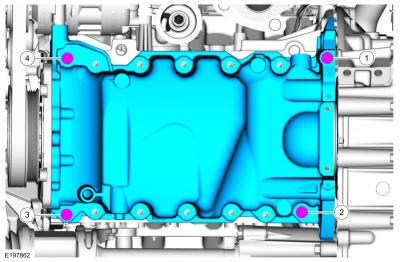

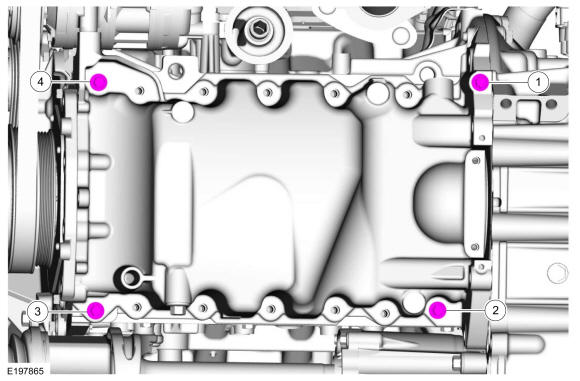

Tighten the oil pan bolts in the sequence shown.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

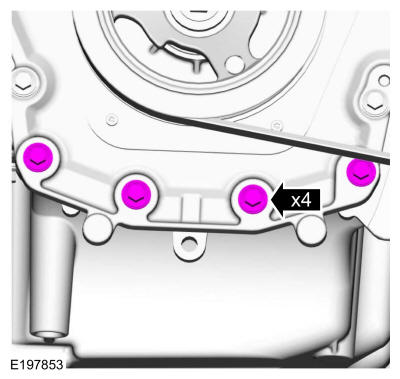

Install the engine front cover bolts finger tight.

Courtesy of FORD MOTOR COMPANY

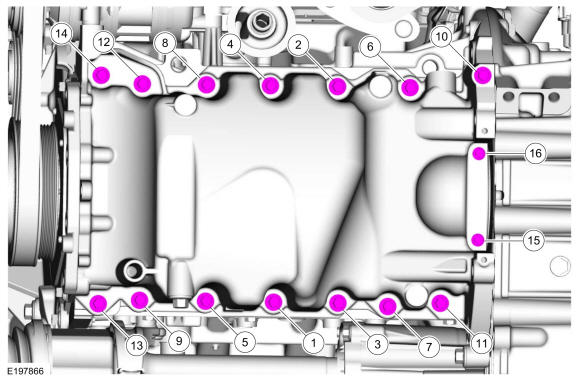

Install the remaining bolts and tighten in the sequence shown.
Torque: Stage 1: Tighten bolts 1-9 and 11-14 to: 18 lb.ft (24 Nm) Stage 2: Tighten bolt 10 to: 177 lb.in (20 Nm) Stage 3: Tighten bolt 10 an additional: 90 deg. Stage 4: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Tighten the engine front cover bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the A/C compressor bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

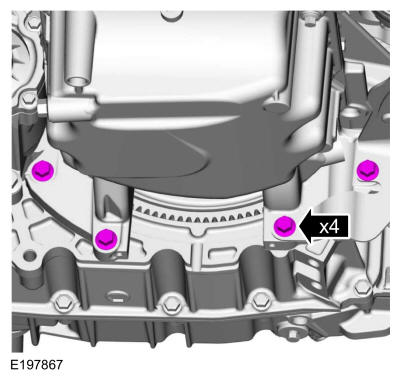

Tighten the oil pan-to-bellhousing bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

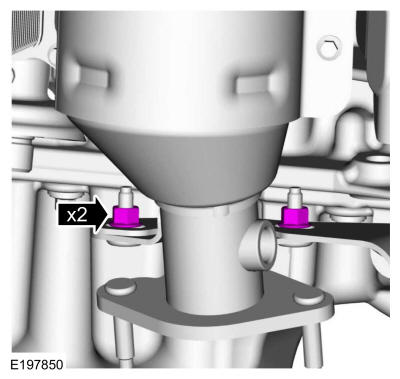

Install the nuts for the LH catalytic converter bracket.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: AWD vehicle shown, FWD similar. Parts removed from graphic for clarity.

Tighten the RH engine-to-bellhousing bolt.

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

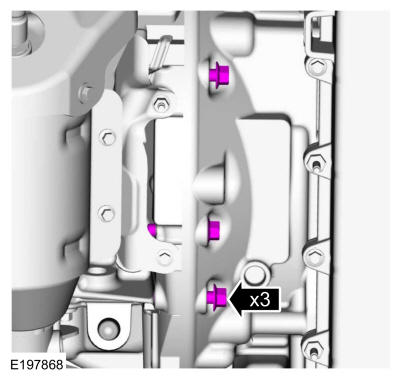

Tighten the LH bellhousing-to-engine bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the inspection cover and the retainers.

Courtesy of FORD MOTOR COMPANY

LHD AWD

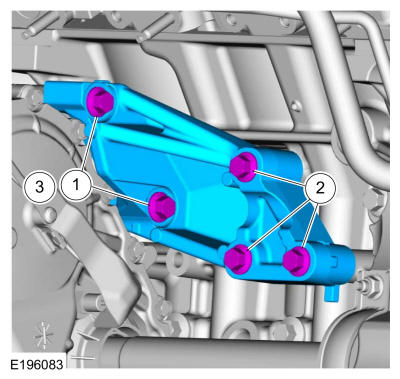

1. Install the PTU bracket and hand start the bolts at the PTU.
2. Install the bolts at the cylinder block.
  Torque: 35 lb.ft (48 Nm)
3. Tighten the bolts at the PTU.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the RH wheel and tire. Refer to: Wheel and Tire .
2. Install the RH catalytic converter. Refer to: Catalytic Converter RH .
LHD AWD/LHD FWD
NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.

Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the roll restrictor. Refer to: Roll Restrictor RH - 3.5L Duratec (212kW/278PS) .
2. Install the exhaust Y-pipe. Refer to: Exhaust Y-Pipe .
Install the splash shields and the retainers.

Courtesy of FORD MOTOR COMPANY

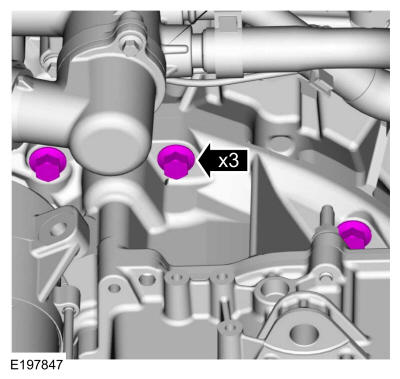

Tighten the upper bellhousing-to-engine bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the starter stud bolt.
  Torque: 20 lb.ft (27 Nm)
- Position back the engine wire harness and connect the retainers.
Courtesy of FORD MOTOR COMPANY
Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the battery tray. Refer to: Battery Tray .
2. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
3. Install the air cleaner. Refer to: Air Cleaner .
NOTE: Do not expose the Motorcraft® High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the oil pan. Failure to follow these instructions may cause engine oil leakage.

Fill the engine with clean engine oil. Refer to: Specifications .

Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
