Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.
- Install the flexplate and the bolts.
  Torque: 59 lb.ft (80 Nm)
- Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

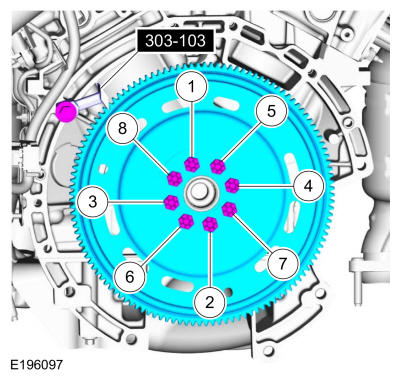

Fig 1: Flexplate Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: Transmission - 3.5L Duratec (212kW/278PS) .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
