Engine Mount: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the retainers and the underbody shield.
-

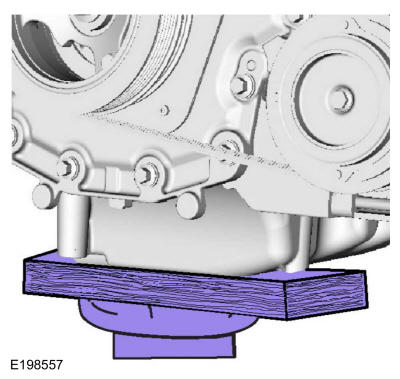

NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.
Support the engine with a floor jack and a wooden block. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack

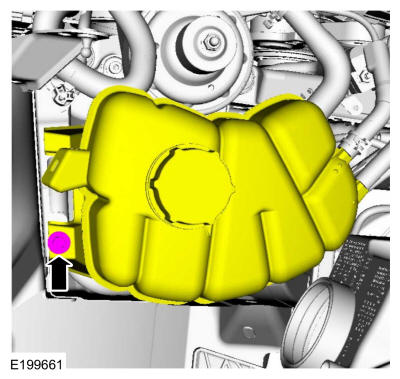

- Remove the bolt and position aside the degas bottle.
- Remove and discard the engine mount nuts.
-
- Remove and discard the nut and bolts.
- Remove the engine mount.
