Engine Mount: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-

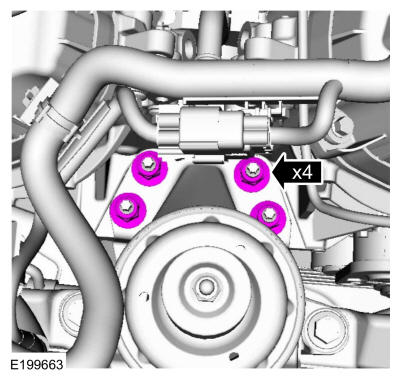

- Install the engine mount and the bolts.
Torque: 81 lb.ft (110 Nm)
- Install the engine mount nut.
Torque: 66 lb.ft (90 Nm)

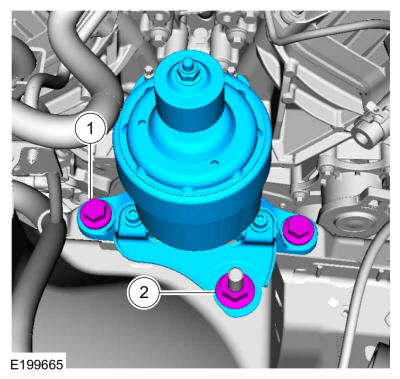

- Install the engine mount and the bolts.
- Install the engine mount nuts.
Torque: 59 lb.ft (80 Nm)
- Position back the degas bottle and install the bolt.
Torque: 80 lb.in (9 Nm)
- Remove the floor jack and the wooden block. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack
- Install the underbody shield and the retainers.
