Engine Front Cover: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

    GFD279078Courtesy of FORD MOTOR COMPANY

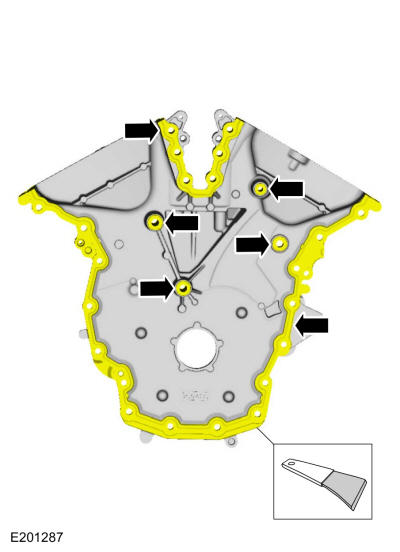

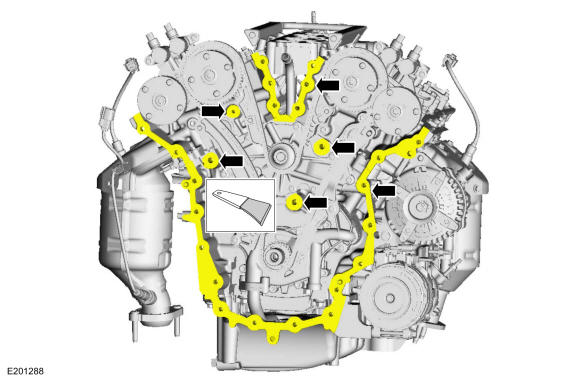

  2. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD279079Courtesy of FORD MOTOR COMPANY

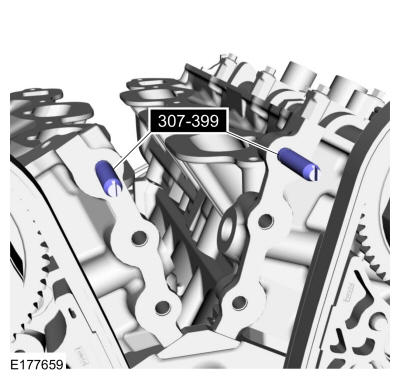

  3. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD279131Courtesy of FORD MOTOR COMPANY
  4. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22 must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

    • Apply a 3.0 (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

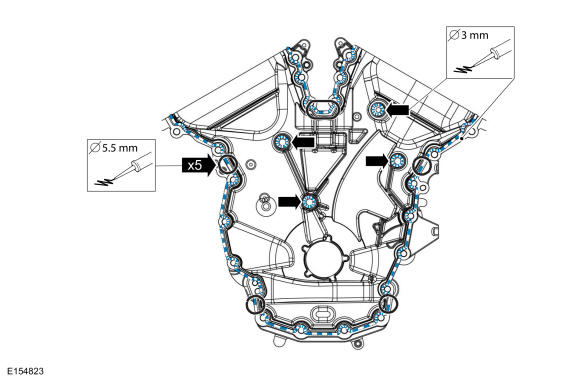

    • Apply a 5.5 (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder block joint areas of the engine front cover in the places indicated.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD279132Courtesy of FORD MOTOR COMPANY

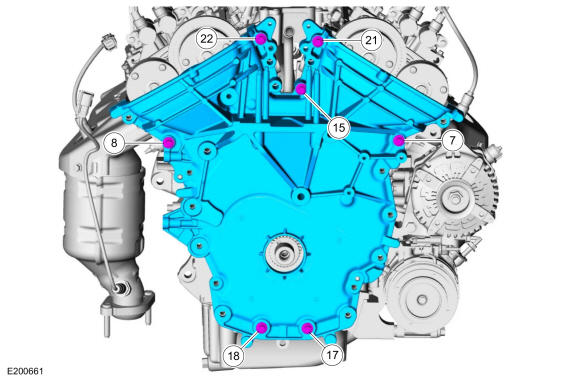

  5. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque: 27 lb.in (3 Nm)

    GFD279242Courtesy of FORD MOTOR COMPANY

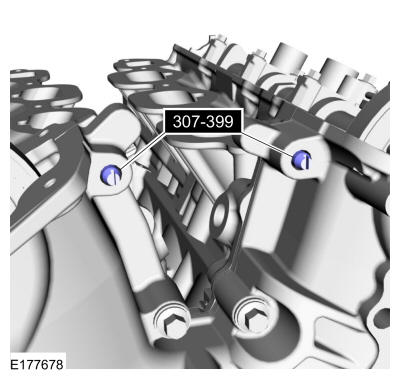

  6. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD279134Courtesy of FORD MOTOR COMPANY

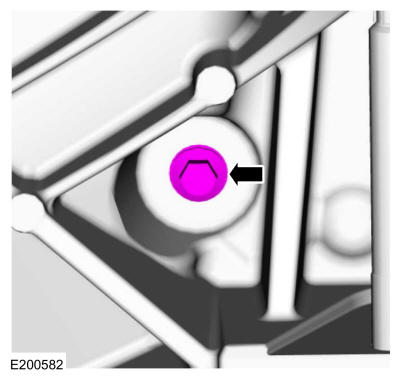

  7. NOTE: Do not tighten the bolt at this time.

    Install the M6 engine front cover bolt.

    GFD279240Courtesy of FORD MOTOR COMPANY

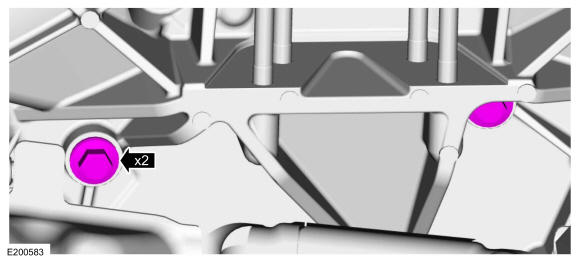

  8. NOTE: Do not tighten the bolts at this time.

    Install the M10 engine front cover bolts.

    GFD279239Courtesy of FORD MOTOR COMPANY
    • NOTE: Do not allow the A/C compressor to contact the subframe. Failure to follow this direction may result in damage to the A/C compressor.
      NOTE: Do not tighten the bolt at this time.

      Using the floor jack, lower the engine to allow installation of the M10 engine front cover bolt.

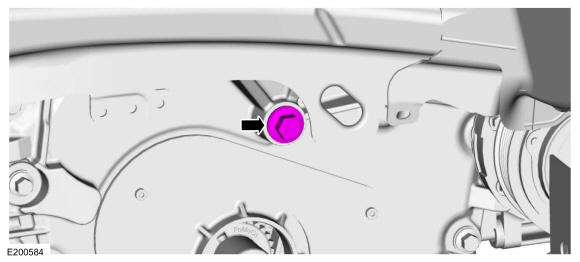

    • Install the lower M10 engine front cover bolt.

    GFD279238Courtesy of FORD MOTOR COMPANY
  10. NOTE: Do not expose the Motorcraft® High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow this instruction may cause oil leakage.

    Install the remaining engine front cover bolts.

    Torque: Stage 1: Tighten bolts 1 thru 22 to: 89 lb.in (10 Nm) Stage 2: Tighten bolts 23, 24 and 25 to: 133 lb.in (15 Nm) Stage 3: Tighten bolt 26 to: 89 lb.in (10 Nm) Stage 4: Loosen bolt 26: 1turn(s) Stage 5: Tighten bolts 23, 24 and 25 to 30 Nm (22 lb-ft) plus an additional: 90 deg. Stage 6: Tighten bolts 1 thru 22 to 20 Nm (177 lb-in) plus an additional: 45 deg. Stage 7: Tighten bolt 26 to 10 Nm (89 lb-in) plus an additional: 45 deg.

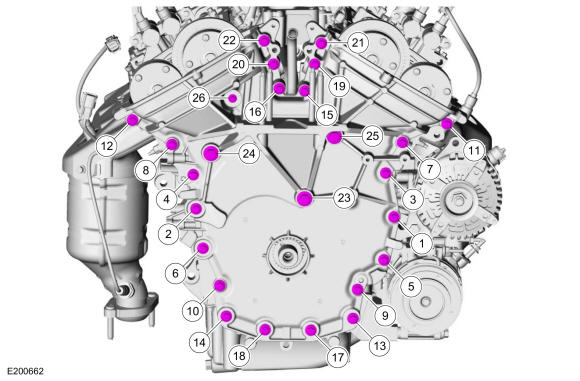

    Fig 1: Engine Front Cover Tightening Sequence
    GFD279243Courtesy of FORD MOTOR COMPANY
  11. Install the crankshaft front seal. Refer to: Crankshaft Front Seal .

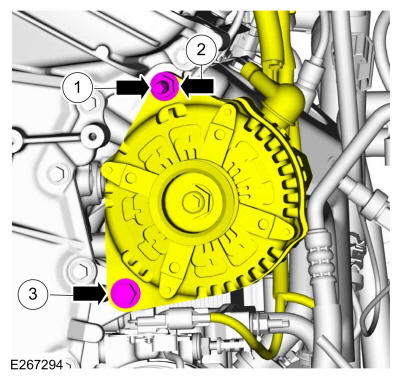

    1. Position back the generator and install the stud.

      Torque: 71 lb.in (8 Nm)

    2. Install the nut.

      Torque: 35 lb.ft (48 Nm)

    3. Install the bolt.

      Torque: 35 lb.ft (48 Nm)

    GFD279244Courtesy of FORD MOTOR COMPANY

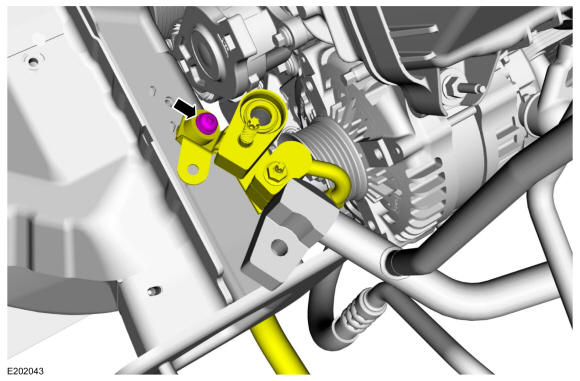

  13. Position back the evaporator inlet and outlet manifold and install the bolt.

    Torque: 106 lb.in (12 Nm)

    GFD279236Courtesy of FORD MOTOR COMPANY
  14. Using a new O-ring, connect the A/C tube fitting and install the nut.

    Torque: 159 lb.in (18 Nm)

    GFD279013Courtesy of FORD MOTOR COMPANY

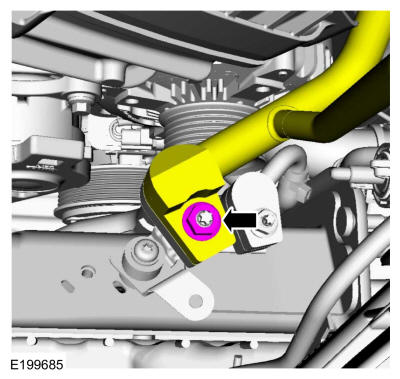

    • Using a new O-ring, position back the A/C tube and install the nut.

      Torque: 159 lb.in (18 Nm)

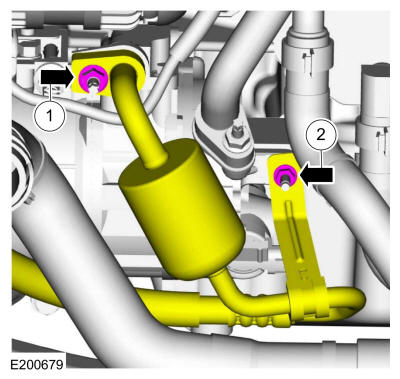

    • Install the A/C bracket nut.

      Torque: 71 lb.in (8 Nm)

    GFD279245Courtesy of FORD MOTOR COMPANY

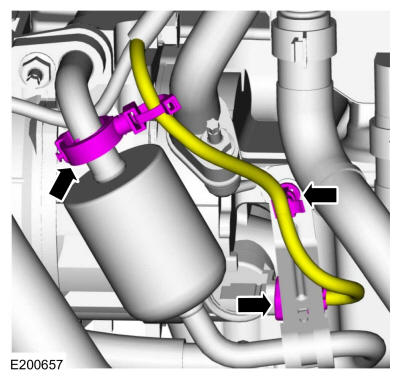

  16. Connect the A/C electrical connector and wire retainers.
    GFD279234Courtesy of FORD MOTOR COMPANY

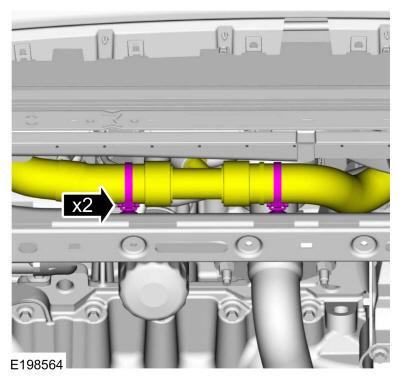

  17. Position back and connect the coolant hose retainers.
    GFD279027Courtesy of FORD MOTOR COMPANY

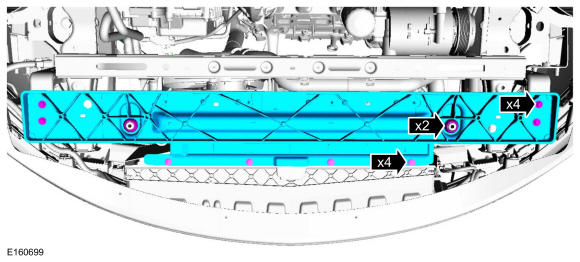

  18. Install the cooling module support panel and the retainers.

    Torque: 18 lb.ft (24 Nm)

    GFD279026Courtesy of FORD MOTOR COMPANY

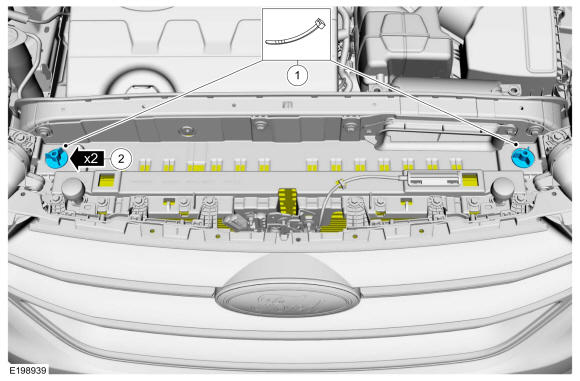

    • Remove the cable ties or the mechanics wire.

    • Install the upper cooling support brackets.

    GFD279162Courtesy of FORD MOTOR COMPANY

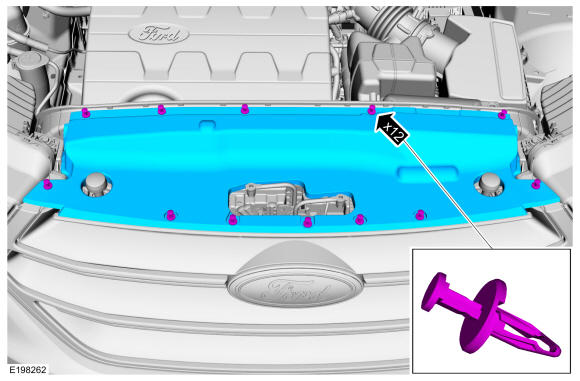

  20. Install the upper air deflector and the retainers.
    GFD279018Courtesy of FORD MOTOR COMPANY

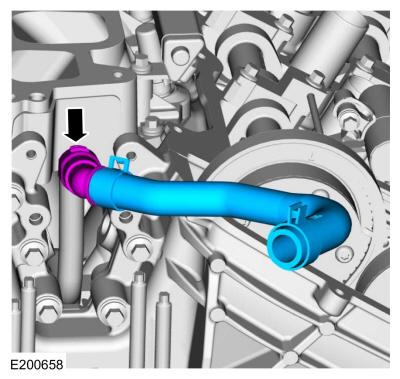

  21. Install the degas bottle hose.
    GFD279233Courtesy of FORD MOTOR COMPANY

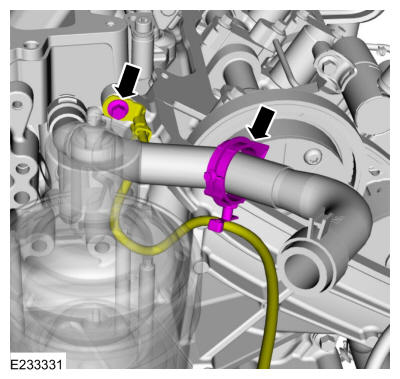

  22. Position back the ground wire and install the bolt. Connect the wire retainer.

    Torque: 89 lb.in (10 Nm)

    GFD279232Courtesy of FORD MOTOR COMPANY

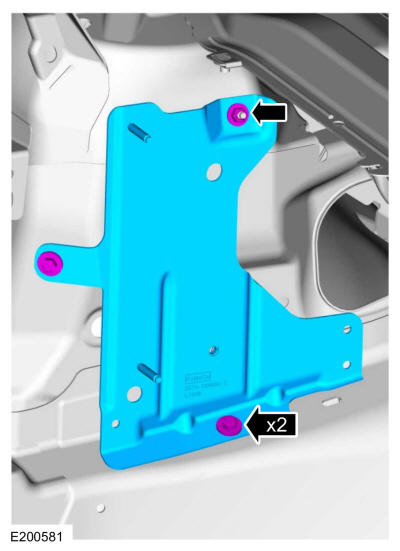

  23. Install the PCM bracket, nut and the bolts.
    GFD279231Courtesy of FORD MOTOR COMPANY

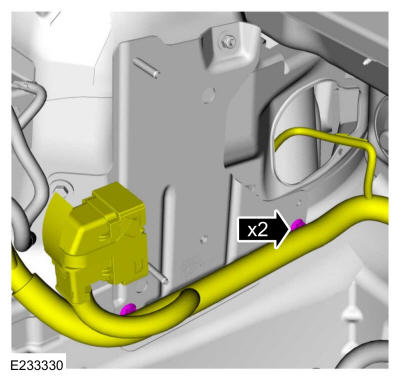

  24. Attach the wiring harness retainers to the PCM bracket.
    GFD279230Courtesy of FORD MOTOR COMPANY

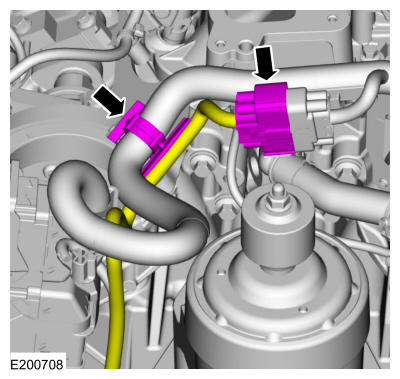

  25. Connect the electrical connector and the wire harness retainer.
    GFD279229Courtesy of FORD MOTOR COMPANY
  26. Install the following items:

    1. Install the PCM. Refer to: Powertrain Control Module (PCM) .
    2. Install the RH valve cover. Refer to: Valve Cover RH .
    3. Install the LH valve cover. Refer to: Valve Cover LH .

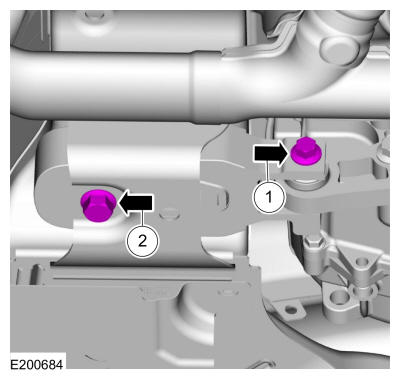

    • Tighten the roll restrictor bolt.

      Torque: 85 lb.ft (115 Nm)

    • Tighten the roll restrictor bolt.

      Torque: 129 lb.ft (175 Nm)

    GFD279246Courtesy of FORD MOTOR COMPANY

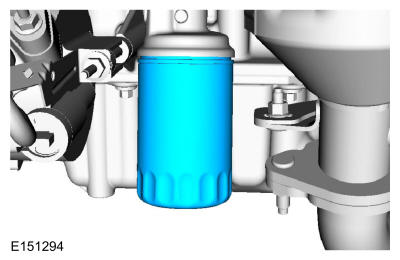

  28. NOTE: Do not lubricate the engine oil filter seal.

    Install a new engine oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

    GFD279247Courtesy of FORD MOTOR COMPANY
  29. Install the following items:

    1. Install the RH half shaft. Refer to: Front Halfshaft RH - FWD . Refer to: Front Halfshaft RH - 3.5L Duratec (212kW/278PS), All-Wheel Drive (AWD) .
    2. Install the accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner .
    3. Install the degas bottle. Refer to: Degas Bottle .
    4. Install the cowl panel. Refer to: Cowl Panel .

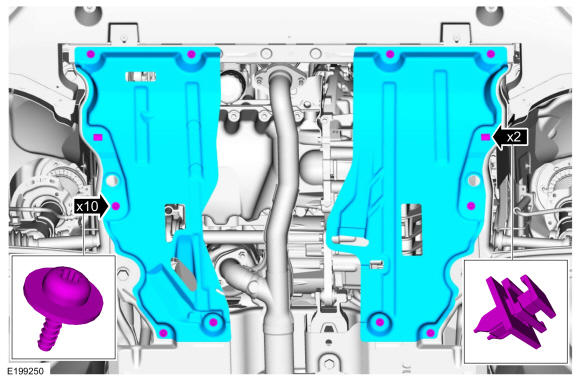

  30. Install the underbody shields and the retainers.
    GFD279020Courtesy of FORD MOTOR COMPANY
  31. NOTE: Do not expose the Motorcraft® High performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow these instructions may cause engine oil leakage.

    Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

  32. Fill the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  33. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  34. Evacuate and recharge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
  35. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
