Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

Install the RH cylinder head and new bolts.

Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 26 lb.ft (35 Nm) Stage 3: 90 deg. Stage 4: 90 deg. Stage 5: 45 deg.

Fig 1: RH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the M6 bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The valve tappets must be installed in their original positions.

Coat the valve tappets with clean engine oil and install.

Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
Install the RH timing chain guide and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the CHT jumper harness.

Courtesy of FORD MOTOR COMPANY
Install a new thermostat housing gasket.

Courtesy of FORD MOTOR COMPANY
Install the new lower intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

NOTE: Make sure that the fuel rail and the fuel injectors do not come out of the lower intake manifold.

Install the lower intake manifold and the bolts.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the thermostat housing bolts.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 90 deg.

Courtesy of FORD MOTOR COMPANY
- Tighten the cylinder block drain plug to:
  Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 720 deg.
- If equipped, tighten the block heater to:
  Torque: 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY
Install the LH block coolant drain plug.
Torque: Stage 1: 142 lb.in (16 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
- Install the new studs.
  Torque: 106 lb.in (12 Nm)
- Install the new exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

Install the RH catalytic converter and new nuts.

Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the heat shield and the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Align the bracket with the index mark made during removal.

Install the upper intake manifold bracket and the bolt.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the ground cable and install the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the O-ring seals with clean engine oil.

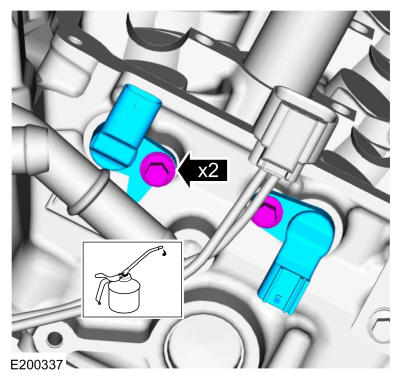

Install the CMP sensor and the bolts.

Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the CMP electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the RH camshafts. Refer to: Camshafts .
