Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Remove the accessory drive belt. Refer to: Accessory Drive Belt .
    2. Remove the engine mount. Refer to: Engine Mount .

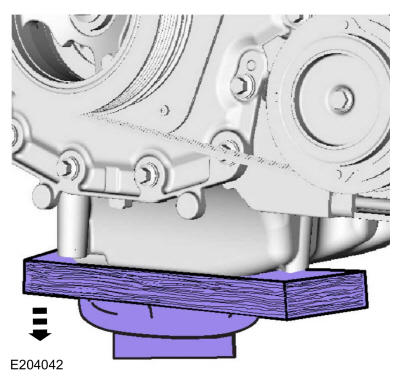

  3. Using the floor jack, lower the front of the engine to access the crankshaft pulley. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack
    GFD279166Courtesy of FORD MOTOR COMPANY
    • Remove the crankshaft pulley bolt and washer.

    • Discard the bolt.

    GFD279043Courtesy of FORD MOTOR COMPANY
  5. Using a 3 Jaw Puller, remove the crankshaft pulley. Use the General Equipment: Puller
    GFD279044Courtesy of FORD MOTOR COMPANY
  6. Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
GFD279045Courtesy of FORD MOTOR COMPANY
