Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

LH cylinder head

NOTE: If replacing the cylinder head, do not reuse the secondary timing chain tensioners, they must be replaced or damage to the engine may occur. Refer to Exploded View Of Timing Drive Components .

Remove the timing chain guide pin.

Courtesy of FORD MOTOR COMPANY
NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.

NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

Remove the spark plugs.

Courtesy of FORD MOTOR COMPANY

RH cylinder head
Remove the timing chain tensioner arm and timing chain guide pins.

Courtesy of FORD MOTOR COMPANY

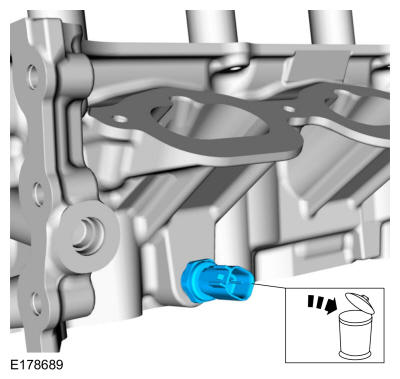

Remove and discard the CHT sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.

NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

Remove the spark plugs.

Courtesy of FORD MOTOR COMPANY

All cylinder heads
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

Using the special tools, remove the valve collet, valve spring retainer and the valve spring. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1249 Valve Spring Compressor., 303-1418 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY

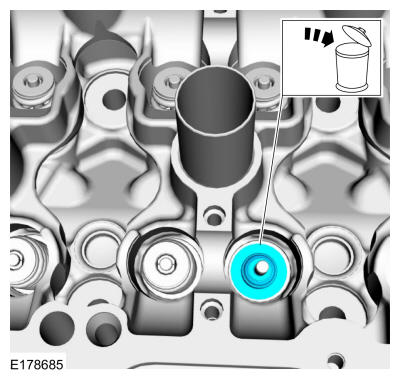

Remove the valve stem seal.

Courtesy of FORD MOTOR COMPANY
Remove the valve.

Courtesy of FORD MOTOR COMPANY
Repeat the above steps for each valve.
