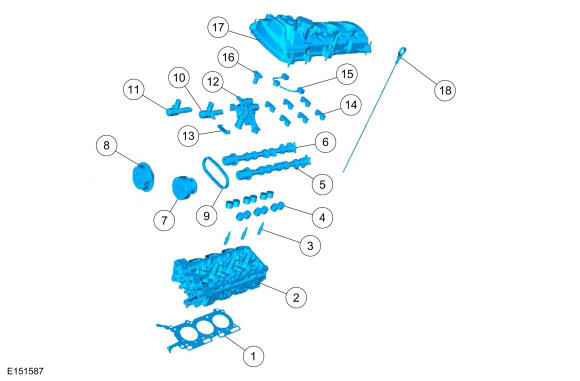

Exploded View Of Engine Upper - LH Cylinder Head
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6083 | LH cylinder head gasket |
| 2 | 6050 | LH cylinder head |
| 3 | 12405 | Spark plug (3 required) |
| 4 | 6500 | Valve tappet (12 required) |
| 5 | 6A269 | LH exhaust camshaft |
| 6 | 6A267 | LH intake camshaft |
| 7 | 6C525 | Exhaust camshaft Variable Camshaft Timing (VCT) Unit |
| 8 | 6C524 | Intake camshaft VCT unit |
| 9 | 6C256 | LH secondary timing chain |
| 10 | 6B297 | Exhaust camshaft VCT oil control solenoid |
| 11 | 6B297 | Intake camshaft VCT oil control solenoid |
| 12 | 6B280 | Camshaft mega cap |
| 13 | 6K297 | LH secondary tensioner shoe |
| 14 | 6A258 | LH camshaft cap (6 required) |
| 15 | 6K602 | Valve train oil feed tube |
| 16 | 6C270 | LH secondary timing chain tensioner |
| 17 | 6K273 | LH valve cover |
| 18 | 6750 | Oil level indicator |
