Lubrication System

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

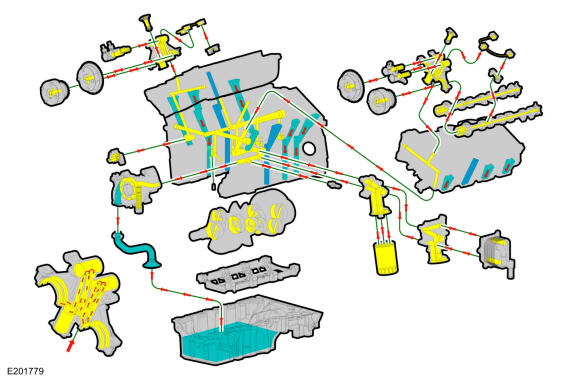

GFD278986Courtesy of FORD MOTOR COMPANY
Item Description
Yellow High pressure oil flow
Blue Oil return/low pressure oil flow
