Valve Cover RH: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
    1. Remove the nut.
    2. Remove the bolt.

    • Remove the engine appearance cover.

    • If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the intake manifold.

      Torque: 62 lb.in (7 Nm)

    GFD278211Courtesy of FORD MOTOR COMPANY
  2. Remove the following items:

    1. Refer to: Cowl Panel .
    2. Refer to: Air Cleaner Outlet Pipe RH .
    3. RH charge air cooler intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

    1. Disconnect the PCV tube quick release couplings and remove the tube. Refer to: Quick Release Coupling .
    2. Disconnect the throttle body electrical connector.
    GFD278265Courtesy of FORD MOTOR COMPANY
  4. Detach the wiring harness retainer.

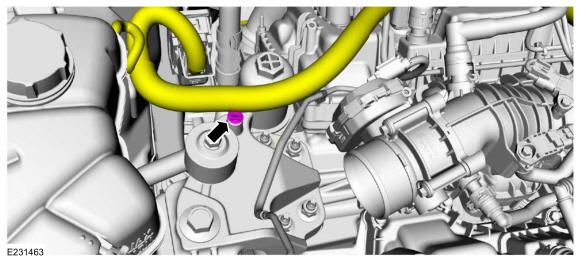

    GFD278550Courtesy of FORD MOTOR COMPANY
    • Disconnect the engine harness electrical connector and retainer.

    • Disconnect the PCM electrical connector.

    GFD278173Courtesy of FORD MOTOR COMPANY
    • Disconnect the engine wiring harness electrical connector and retainers.

    • Detach the vacuum tube and coolant tube retainers.

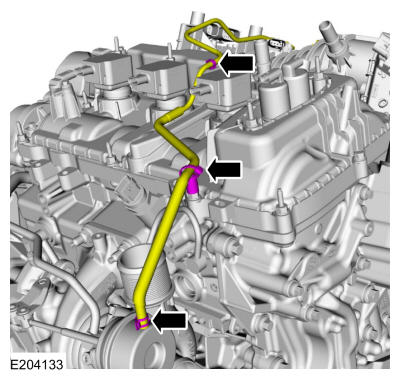

    GFD278268Courtesy of FORD MOTOR COMPANY
    • Disconnect the TC vacuum supply tube. Use the General Equipment: Hose Clamp Remover/Installer

    • Detach the vacuum tube retainers.

    GFD278269Courtesy of FORD MOTOR COMPANY
  8. Remove the RH coil-on-plugs. Refer to: Ignition Coil-On-Plug .

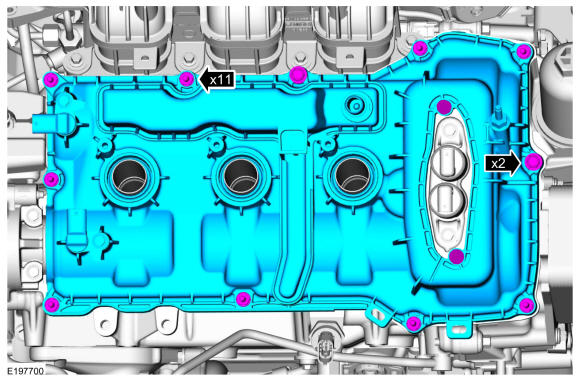

  9. Loosen the fasteners and remove the valve cover.
    GFD278271Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the gasket.

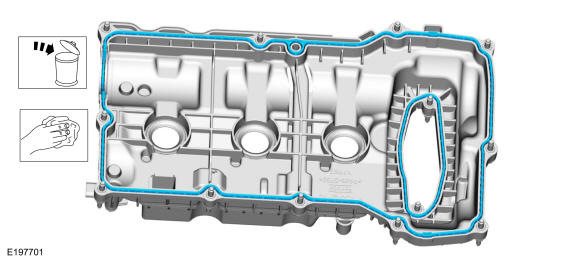

    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    GFD278272Courtesy of FORD MOTOR COMPANY

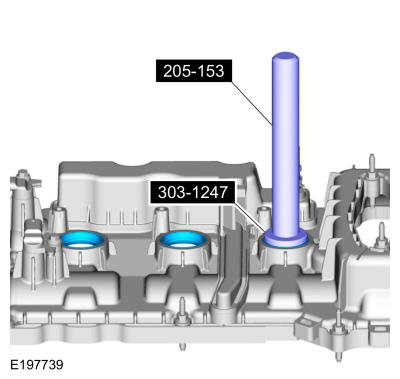

  11. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD278273Courtesy of FORD MOTOR COMPANY

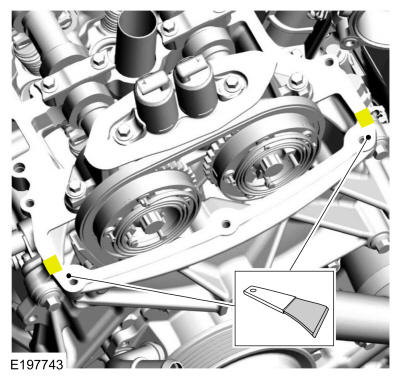

  12. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
GFD278274Courtesy of FORD MOTOR COMPANY
