Timing Chain: Installation

LH timing chain

1. NOTE: A timing mark is stamped on both faces of the crankshaft sprocket. The sprocket can be installed with either of the faces positioned outward.

   Install the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

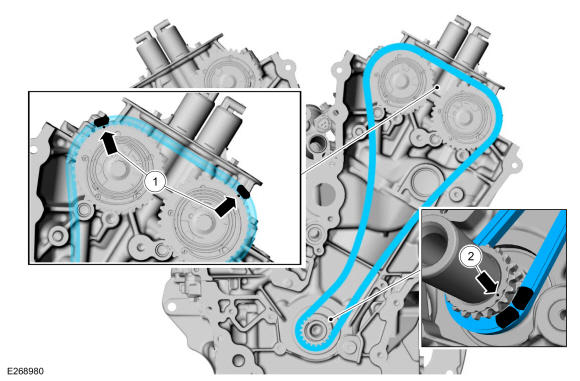

2. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
   1. Install the LH timing chain with the single colored links aligned with the circle  timing marks on the VCT units.
   2. Install the double colored links so they straddle the timing mark on the outward face of the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

3. Install the LH timing chain guide and bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Install the LH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

5. Slide the tensioner cylinder out of the LH timing chain tensioner housing.

   Courtesy of FORD MOTOR COMPANY

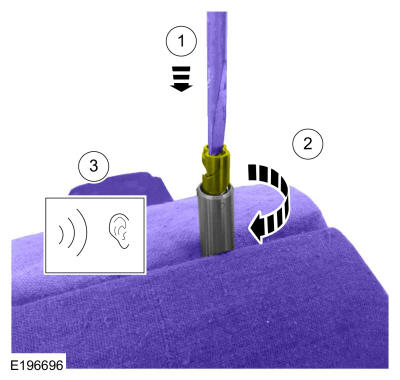

6. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

   Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

   1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise. Use the General Equipment: Vise Jaw Protectors. Use the General Equipment: Flat-Bladed Screwdriver
   2. Rotate the screwdriver clockwise approximately one turn.
   3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

   Courtesy of FORD MOTOR COMPANY

7. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

   Courtesy of FORD MOTOR COMPANY

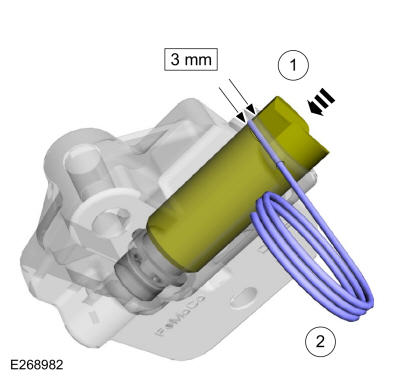

8. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0.125 in) below the top of the housing.
   2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

   Courtesy of FORD MOTOR COMPANY

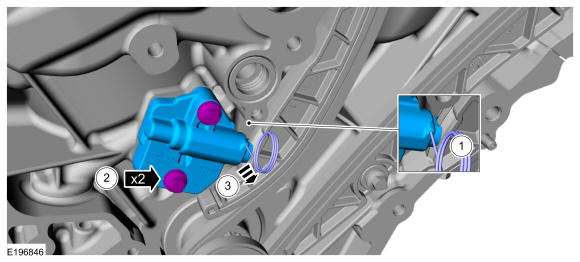

9. 1. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
   2. Install the bolts.

      Torque: 89 lb.in (10 Nm)

   3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

10. Install the oil pump drive chain.

    Courtesy of FORD MOTOR COMPANY

11. Install oil pump drive chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

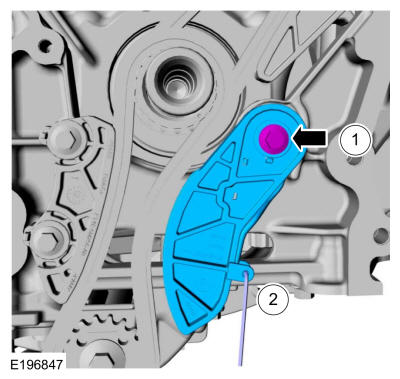

12. 1. Install the oil pump drive chain tensioner and bolt.

       Torque: 89 lb.in (10 Nm)

    2. Remove the pin.

    Courtesy of FORD MOTOR COMPANY

13. Install the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

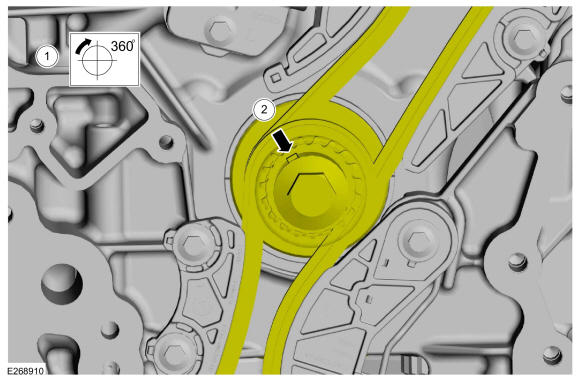

14. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.

    Courtesy of FORD MOTOR COMPANY

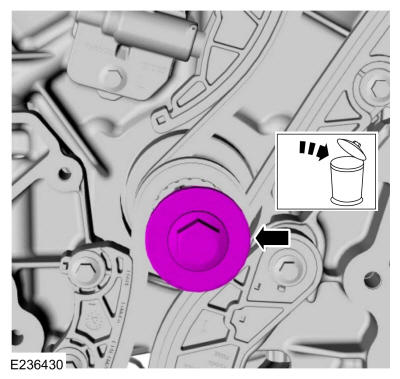

15. Remove and discard the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

    RH and LH timing chains

16. NOTE: A timing mark is stamped on both faces of the crankshaft sprocket. The sprocket can be installed with either of the faces positioned outward.

    Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

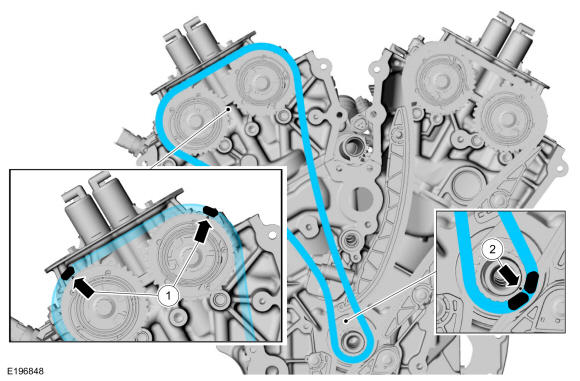

17. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
    1. Install the RH timing chain with the single colored links aligned with the triangle  timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

18. Install the RH timing chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

20. Slide the tensioner cylinder out of the RH timing chain tensioner housing.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise. Use the General Equipment: Vise Jaw Protectors. Use the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    Courtesy of FORD MOTOR COMPANY

22. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

    Courtesy of FORD MOTOR COMPANY

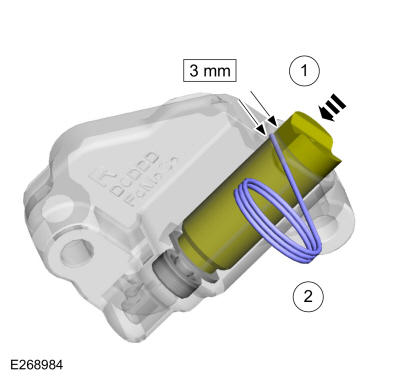

23. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0.125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

    Courtesy of FORD MOTOR COMPANY

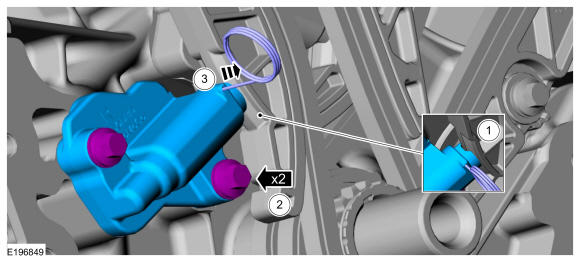

24. 1. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

       Torque: 89 lb.in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

25. Install the engine front cover. Refer to: Engine Front Cover .
