Oil Pan: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the accessory drive belt. Refer to: Accessory Drive Belt .
  3. NOTE: Use a shop towel when removing the oil filter housing to prevent oil from spilling on the engine or accessory components.

    1. Loosen the oil filter housing and allow the oil to drain out of the housing and down into the engine.
    2. Remove the oil filter housing and discard the oil filter element.
    3. Remove and discard the O-ring seals.

    GFD278195Courtesy of FORD MOTOR COMPANY
  4. Remove the oil level indicator.
    GFD278539Courtesy of FORD MOTOR COMPANY
  5. Remove the retainers and the upper air deflector.
    GFD278162Courtesy of FORD MOTOR COMPANY
  6. NOTE: Make sure the cooling module is secure before removing the bottom cooling module support panel.

    1. Remove the upper cooling module support brackets.
    2. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

    GFD278208Courtesy of FORD MOTOR COMPANY
  7. Remove the RH front wheel and tire. Refer to: Wheel and Tire .
  8. Remove the retainers and the underbody shield.
    GFD278209Courtesy of FORD MOTOR COMPANY
  9. Remove the retainers and the front underbody shield.
    GFD278158Courtesy of FORD MOTOR COMPANY
  10. Remove the retainers and the underbody shields.
    GFD278210Courtesy of FORD MOTOR COMPANY
  11. Remove the RH splash shield. Refer to: Fender Splash Shield .
  12. NOTE: The drain plug should be removed and installed by hand, do not use tools.

    1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

    GFD278196Courtesy of FORD MOTOR COMPANY
  13. Remove the RH roll restrictor. Refer to: Roll Restrictor RH - 2.7L EcoBoost (238kW/324PS) .
  14. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    GFD278233Courtesy of FORD MOTOR COMPANY
  15. Remove the nuts and the subframe support bracket.
    GFD278234Courtesy of FORD MOTOR COMPANY
  16. Mark the subframe location.
    GFD278240Courtesy of FORD MOTOR COMPANY
  17. Mark the subframe location.
    GFD278241Courtesy of FORD MOTOR COMPANY
  18. Position adjustable stands under the sides of the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD278504Courtesy of FORD MOTOR COMPANY
  19. NOTE: Make sure the cooling module is secure.

    Remove the fasteners and the cooling module support panel.

    GFD278505Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the subframe bolts.
    2. Remove the bolts and the subframe brackets.
    GFD278249Courtesy of FORD MOTOR COMPANY

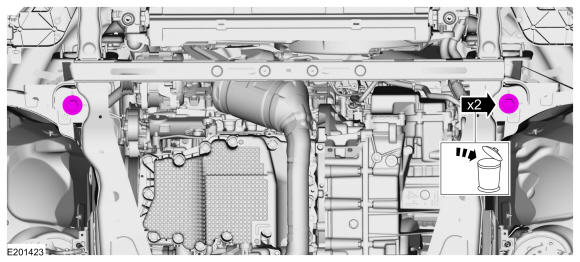

  21. Remove and discard the subframe bolts.
    GFD278540Courtesy of FORD MOTOR COMPANY
  22. Using the adjustable stands lower the LH side of the subframe 20 mm (0.75 in) and lower the RH 65 mm (2.5 in). Use the General Equipment: Vehicle/Axle Stands
    GFD278507Courtesy of FORD MOTOR COMPANY
  23. Remove the oil pan bolts.
    GFD278508Courtesy of FORD MOTOR COMPANY
  24. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine. Use the General Equipment: Flat-Bladed Screwdriver
    GFD278509Courtesy of FORD MOTOR COMPANY
  25. NOTE: Suspension components and jackstand removed from graphic for clarity.

    1. Rotate the front of the oil pan slightly toward the front of the vehicle.
    2. Position the front of the oil pan to the RH side of the vehicle above the subframe.
    3. Lower the rear of the oil pan to clear the exhaust and remove the oil pan.
    4. NOTE: Do not reuse the oil pans sealed by Motorcraft® High Performance Engine RTV Silicone. Oil pans sealed by Motorcraft® High Performance Engine RTV Silicone are to be removed and discarded. The replacement oil pan will have a press-in-place gasket.

      Discard the oil pan if it is sealed with Motorcraft® High Performance Engine RTV Silicone.

    GFD278510Courtesy of FORD MOTOR COMPANY
  26. If equipped, remove and discard the oil pan press-in-place gasket.
    GFD278237Courtesy of FORD MOTOR COMPANY
  27. Remove and discard the oil pump seal.
    GFD278238Courtesy of FORD MOTOR COMPANY
  28. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
GFD278239Courtesy of FORD MOTOR COMPANY
