Oil Pan: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

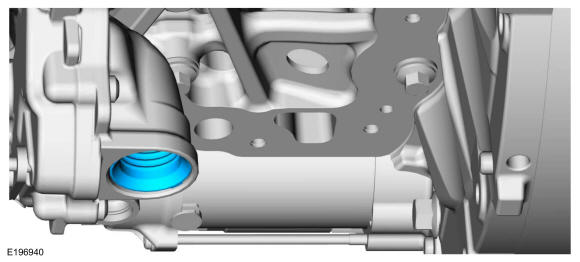

  1. Install a new oil pump seal.
    GFD278379Courtesy of FORD MOTOR COMPANY
  2. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 minutes of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

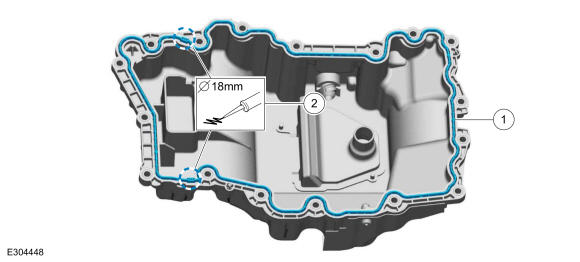

    1. Install a new oil pan press-in-place gasket.
    2. Apply a 18 mm (0.708 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder block joint areas on the oil pan.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD278380Courtesy of FORD MOTOR COMPANY
  3. Install the oil pan and the bolts.

    Torque: Stage 1: 31 lb.in (3.5 Nm) Stage 2: 89 lb.in (10 Nm)

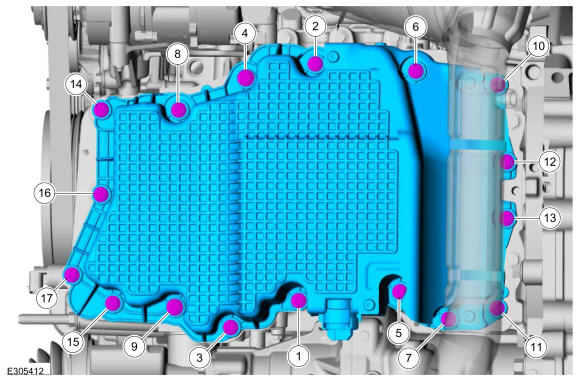

    Fig 1: Oil Pan Tightening Sequence
    GFD278381Courtesy of FORD MOTOR COMPANY

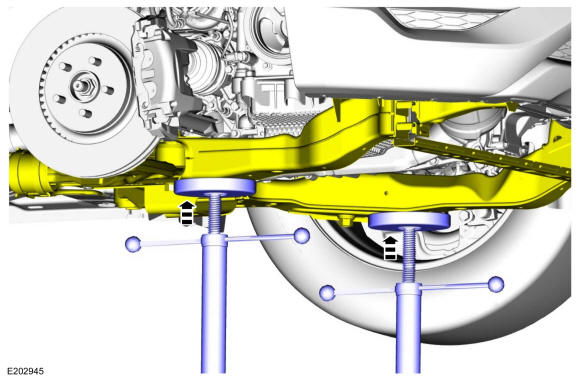

  4. Using the adjustable stands raise the subframe into the installed position. Use the General Equipment: Vehicle/Axle Stands
    GFD278522Courtesy of FORD MOTOR COMPANY
  5. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.

    Install the new subframe bolts.

    GFD278506Courtesy of FORD MOTOR COMPANY
  6. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.

    1. Install the subframe brackets and the new subframe bolts.
    2. Install the subframe bracket bolts.

    GFD278377Courtesy of FORD MOTOR COMPANY
  7. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    Tighten the subframe bolts.

    Torque: 173 lb.ft (235 Nm)

    GFD278506Courtesy of FORD MOTOR COMPANY
    1. Tighten.

      Torque: Stage 1: 76 lb.ft (103 Nm) Stage 2: 270 deg.

    2. Tighten.

      Torque: 35 lb.ft (48 Nm)

    GFD278377Courtesy of FORD MOTOR COMPANY
  9. Remove. Use the General Equipment: Vehicle/Axle Stands
    GFD278504Courtesy of FORD MOTOR COMPANY
  10. Install the cooling module support panel and the fasteners.

    Torque: 177 lb.in (20 Nm)

    GFD278505Courtesy of FORD MOTOR COMPANY
  11. Install the subframe support bracket and the nuts.

    Torque: 33 lb.ft (45 Nm)

    GFD278234Courtesy of FORD MOTOR COMPANY

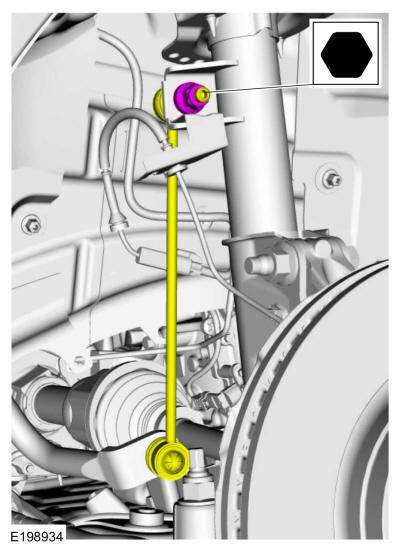

  12. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 85 lb.ft (115 Nm)

    GFD278138Courtesy of FORD MOTOR COMPANY
  13. Install the following items:

    1. RH roll restrictor. Refer to: Roll Restrictor RH - 2.7L EcoBoost (238kW/324PS) .
    2. RH splash shield. Refer to: Fender Splash Shield .

  14. Install the underbody shields and the retainers.
    GFD278210Courtesy of FORD MOTOR COMPANY

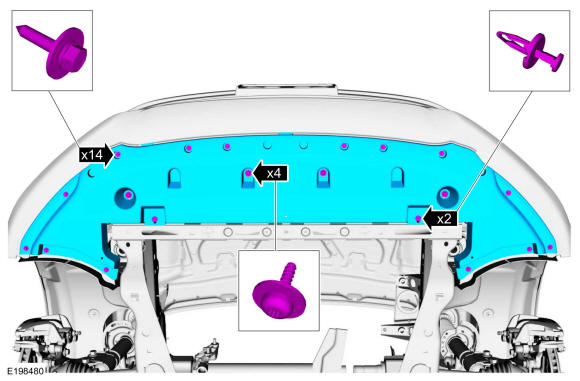

  15. Install the front underbody shield and the retainers.
    GFD278158Courtesy of FORD MOTOR COMPANY

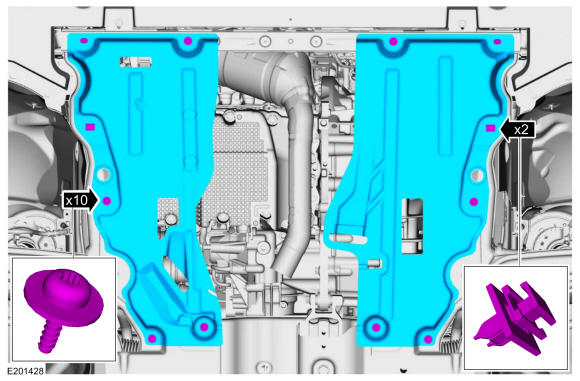

  16. Install the underbody shields and the retainers.
    GFD278209Courtesy of FORD MOTOR COMPANY
  17. Install the RH front wheel and tire. Refer to: Wheel and Tire .

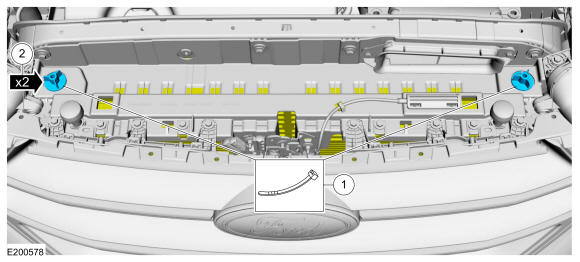

    1. Remove.
    2. Install.
    GFD278161Courtesy of FORD MOTOR COMPANY
  19. Install the upper air deflector and the retainers.
    GFD278162Courtesy of FORD MOTOR COMPANY

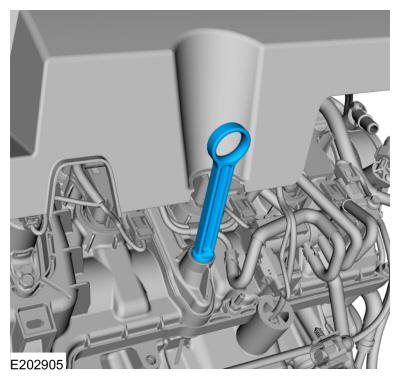

  20. Install the oil level indicator.
    GFD278539Courtesy of FORD MOTOR COMPANY

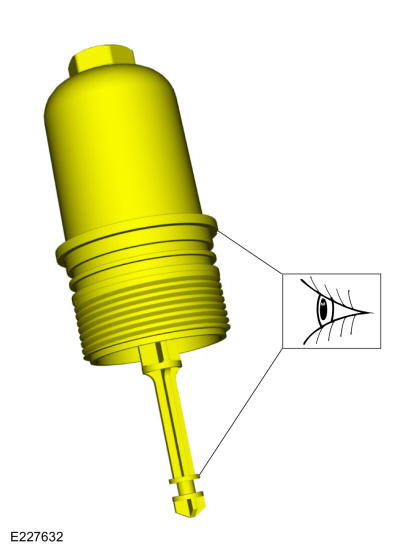

  21. NOTE: If the filter housing stem is damaged or missing the oil will flow through the reservoir drain port and a loss  of engine oil pressure will occur.

    Inspect the oil filter housing and stem for damage including cracks or separation of the stem from the housing. If damaged, a new oil filter housing assembly must be installed.

    GFD278197Courtesy of FORD MOTOR COMPANY

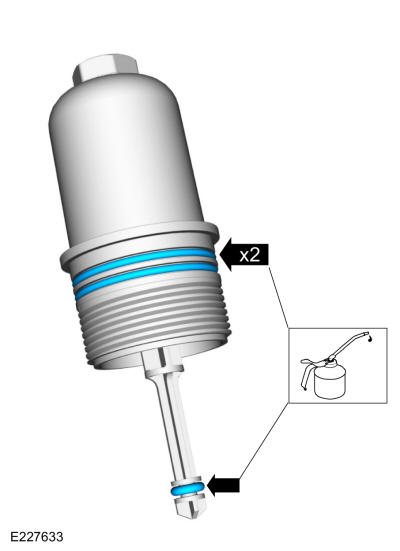

    • NOTE: Failure to install new oil filter housing-to-engine front cover seals may result in oil leakage.

      Install new oil filter housing-to-engine front cover seals and lubricate with clean engine oil.

      Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    • NOTE: Failure to install a new oil filter housing stem-to-oil reservoir drain port seal will result with the oil flowing through the reservoir drain port and a loss  of engine oil pressure.

      Install a new oil filter housing stem-to-oil reservoir drain port seal and lubricate with clean engine oil.

      Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD278198Courtesy of FORD MOTOR COMPANY

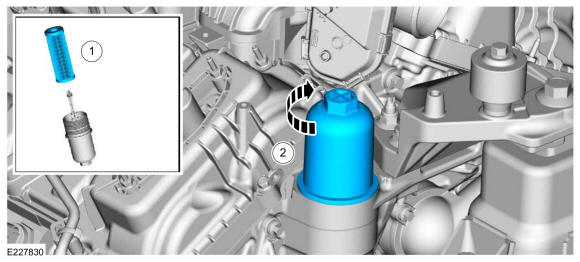

    1. Install a new oil filter element.
    2. Install the oil filter housing.

      Torque: 18 lb.ft (24 Nm)

    GFD278199Courtesy of FORD MOTOR COMPANY

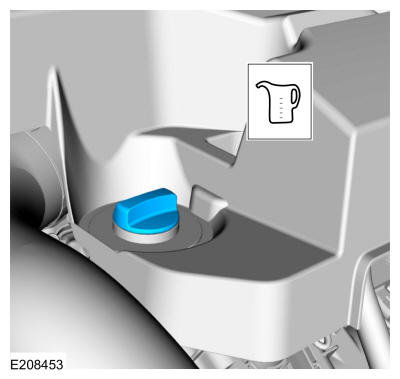

  24. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD278200Courtesy of FORD MOTOR COMPANY
  25. Install the accessory drive belt. Refer to: Accessory Drive Belt .
