Engine Mount: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

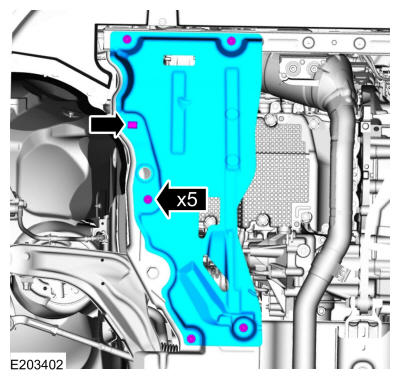

Remove the retainers and the RH underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

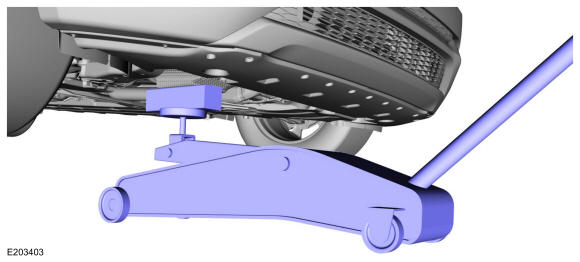

Support the engine with a floor jack and a wooden block. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY
1. Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
2. Remove the bolt.
  Torque: 93 lb.in (10.5 Nm)
- Remove the engine appearance cover.
- If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the intake manifold.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY
Loosen the clamps and remove the upper CAC outlet pipe.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

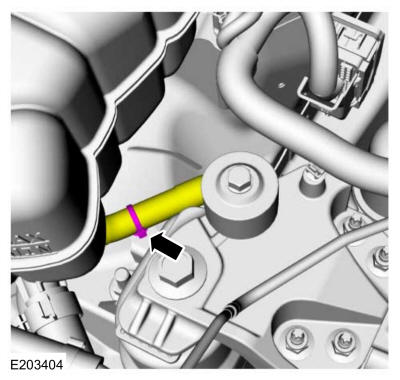

Detach the retainer and position the coolant hose aside.

Courtesy of FORD MOTOR COMPANY

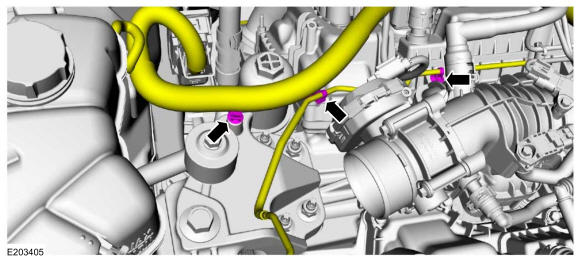

- Detach the retainers and position the coolant tube aside.
- Detach the retainer and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY
NOTE: The engine mount and bracket are serviced as an assembly. Do not remove the engine mount bracket-to-engine mount bolt, this fastener is not serviceable.
1. Remove and discard the engine mount bracket-to-engine nuts.
  Torque: 59 lb.ft (80 Nm)
2. Remove and discard the engine mount-to-frame nut.
  Torque: 66 lb.ft (90 Nm)
3. Remove and discard the engine mount-to-frame bolts.
  Torque: 81 lb.ft (110 Nm)
4. Remove the engine mount and bracket assembly.
Courtesy of FORD MOTOR COMPANY
Clean, inspect, and cover all open ports.
