Cylinder Head LH: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the LH camshafts. Refer to: Camshaft LH .
  3. Remove the bolts and the TC heat shield.
    GFD278434Courtesy of FORD MOTOR COMPANY
  4. Remove the nut, the bolt and the bracket.
    GFD278435Courtesy of FORD MOTOR COMPANY
  5. Remove the stud bolt and the ground wire.
    GFD278436Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the TC oil supply tube.
    GFD278437Courtesy of FORD MOTOR COMPANY
  7. Remove and discard the TC oil supply tube oil filter and the O-ring seals.
    GFD278438Courtesy of FORD MOTOR COMPANY
  8. Remove the bolts and the TC oil return tube.
    GFD278439Courtesy of FORD MOTOR COMPANY
  9. Remove and discard the TC oil return tube O-ring seal.
    GFD278440Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the TC oil return tube-to-engine block gasket.
    GFD278441Courtesy of FORD MOTOR COMPANY
  11. Release the clamp and disconnect the TC coolant return hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD278442Courtesy of FORD MOTOR COMPANY

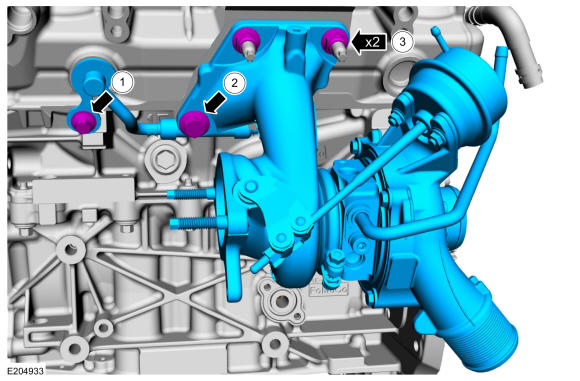

  12. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

    • Remove the TC coolant supply tube bolt.

    • Remove the TC bolt.

    • Remove the nuts and the TC.

    GFD278443Courtesy of FORD MOTOR COMPANY
  13. Remove and discard the TC coolant supply tube O-ring seal.
    GFD278444Courtesy of FORD MOTOR COMPANY
    • Remove and discard the TC gasket.

    • Remove and discard the TC mounting studs.

    GFD278445Courtesy of FORD MOTOR COMPANY
  15. Detach the wiring harness retainers.
    GFD278446Courtesy of FORD MOTOR COMPANY
  16. Remove the nuts and the starter motor bracket.
    GFD278447Courtesy of FORD MOTOR COMPANY
    • Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    • NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

      Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

    GFD278448Courtesy of FORD MOTOR COMPANY
  18. Loosen the bolts and remove the intake manifold.
    GFD278449Courtesy of FORD MOTOR COMPANY
    • Loosen the fuel rail-to-fuel rail high-pressure fuel tube flare nuts.

    • Remove and discard the high-pressure fuel tube.

    GFD278450Courtesy of FORD MOTOR COMPANY

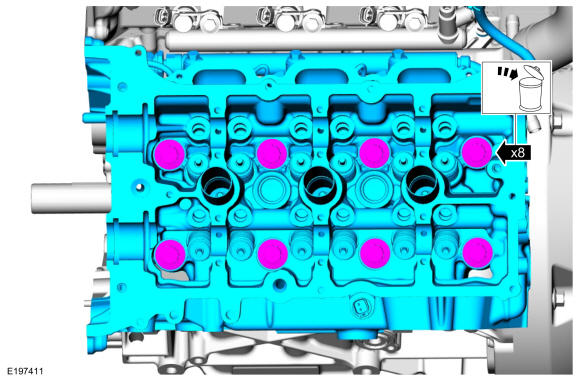

    • Remove and discard the cylinder head bolts.

    • Remove the cylinder head.

    GFD278451Courtesy of FORD MOTOR COMPANY
  21. Remove and discard the cylinder head gasket.
    GFD278452Courtesy of FORD MOTOR COMPANY
    • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.

GFD278453Courtesy of FORD MOTOR COMPANY
