Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

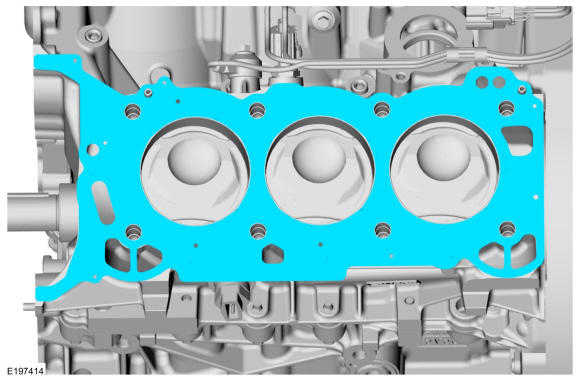

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
- Install the cylinder head.
- Install new cylinder head bolts.
  Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: Loosen: 2 turn(s) Stage 3: 37 lb.ft (50 Nm) Stage 4: 180 deg.

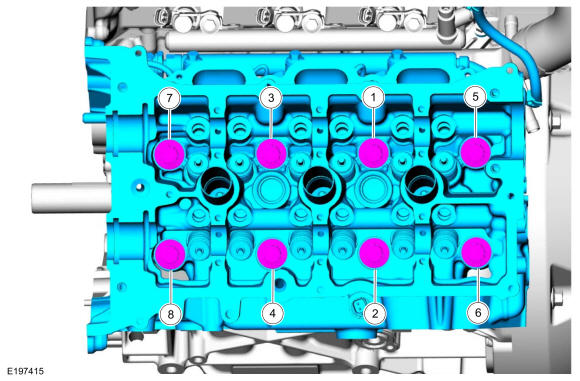

Fig 1: LH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
- Final tighten the flare nuts.
  Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 89 lb.in (10 Nm) Stage 3: 25 deg.
Courtesy of FORD MOTOR COMPANY
Inspect the intake manifold gaskets and replace as necessary.

Courtesy of FORD MOTOR COMPANY
Install the manifold and tighten the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the O-ring and replace if necessary.

Courtesy of FORD MOTOR COMPANY
- Install the cylinder head to coolant outlet connector hose assembly and the bolt.
  Torque: 89 lb.in (10 Nm)
- Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

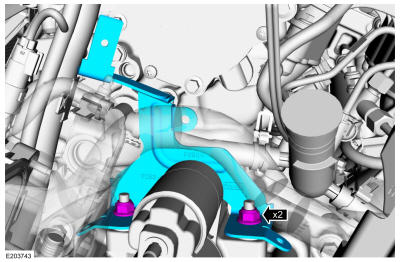

Install the starter motor bracket and the nuts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

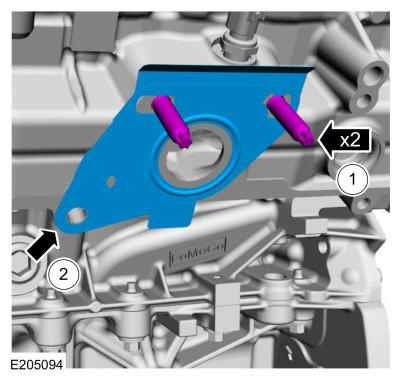

- Install new TC mounting studs.
  Torque: 102 lb.in (11.5 Nm)
- Install a new TC gasket.
Courtesy of FORD MOTOR COMPANY
Install a new TC coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant.
Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

Courtesy of FORD MOTOR COMPANY
Install the new TC oil supply tube O-ring seals and the new oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
Install the TC oil supply tube and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to damage the new filter when installing the oil supply tube into the engine block.

Position the TC assembly onto the studs. Install the coolant supply and oil supply tubes into the engine block while installing the TC.

Courtesy of FORD MOTOR COMPANY
Install the nuts and bolt.
Torque: 1: 44 lb.ft (60 Nm) 2: 44 lb.ft (60 Nm) 3: 27 lb.ft (37 Nm) Re-tighten 1: 44 lb.ft (60 Nm) Re-tighten 2: 44 lb.ft (60 Nm) Re-tighten 3: 27 lb.ft (37 Nm)

Courtesy of FORD MOTOR COMPANY
Install the TC coolant supply and oil supply tube bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

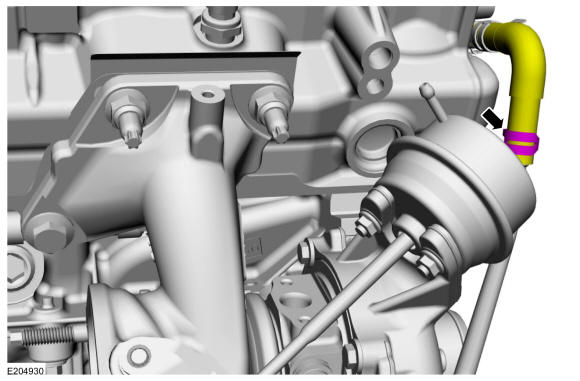

Connect the TC coolant return hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Install the new TC oil return tube-to-engine block gasket.

Courtesy of FORD MOTOR COMPANY
Install a new TC oil return tube O-ring seal and then lubricate with clean engine oil.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

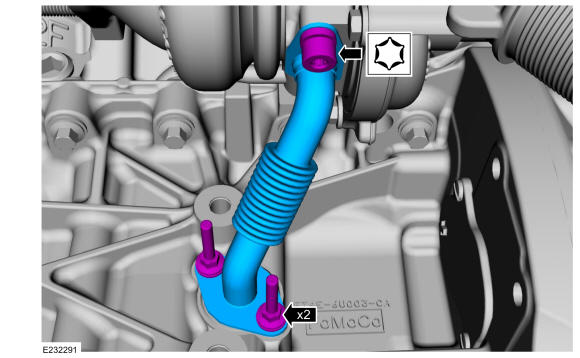

Install the TC oil return tube, then install and tighten the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

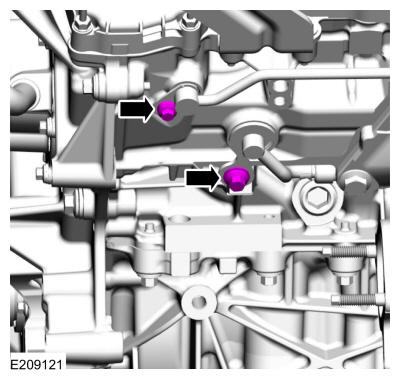

Install the ground wire and the stud bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bracket, the nut and the bolt.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the TC heat shield and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH camshafts. Refer to: Camshaft LH .
