Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

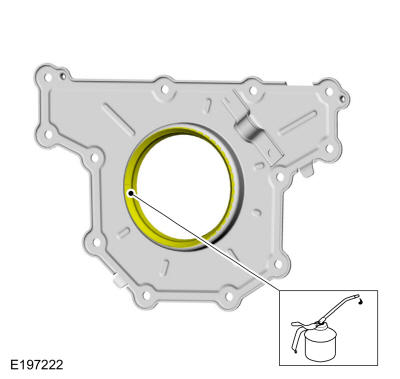

Lubricate the crankshaft rear seal lips with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft rear seal and retainer plate must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

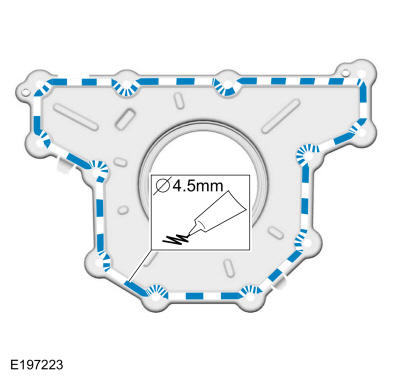

Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the crankshaft rear seal and retainer plate.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

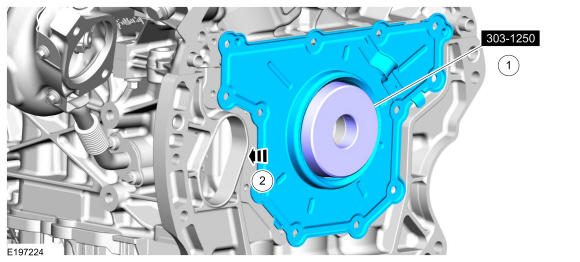

- Position the special tool onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.
- Slide the new crankshaft rear seal and retainer plate onto the tool and into the installed position.
Courtesy of FORD MOTOR COMPANY
Install the crankshaft rear seal retainer plate bolts. Remove Special Service Tool: 303-1250 Seal Installer, Rear Main.
Torque: 89 lb.in (10 Nm)

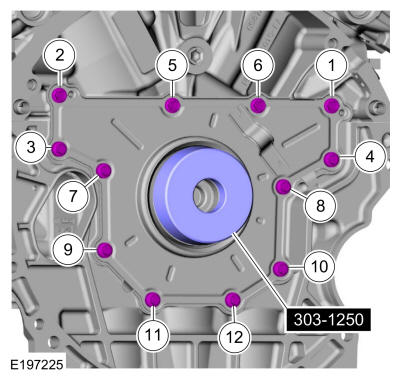

Fig 1: Crankshaft Rear Seal Retainer Plate Tightening Sequence
Courtesy of FORD MOTOR COMPANY

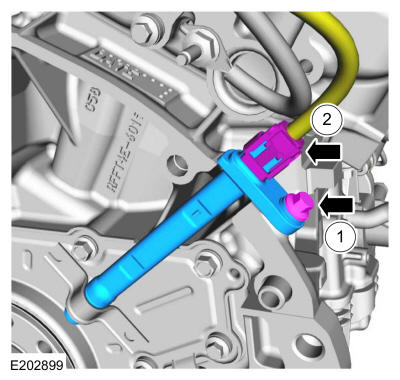

1. Install the CKP sensor and the bolt.
  Torque: 89 lb.in (10 Nm)
2. Connect the CKP sensor electrical connector.
Courtesy of FORD MOTOR COMPANY

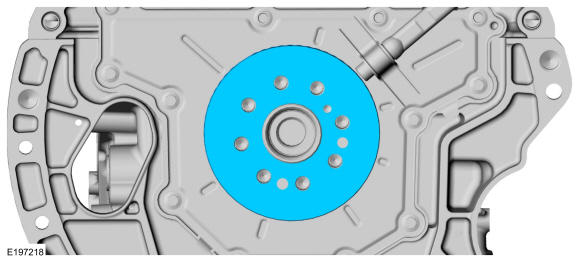

Install the crankshaft sensor ring.

Courtesy of FORD MOTOR COMPANY
Install the flexplate. Refer to: Flexplate .
