Camshaft RH: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: If the RH camshafts are being serviced at the same time as the LH camshafts, remove the RH camshafts first. Refer to the procedure in this article.
NOTE: If the components are to be reinstalled, they must be installed in their original locations.

2WD/4WD

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
  3. Release the fuel pressure. Refer to: Fuel System Pressure Release .
  4. NOTE: Use a steering wheel holding device (such as Hunter® 28-75-1 or equivalent).

    Using a suitable holding tool, hold the steering wheel in the straight-ahead position.

    GFD278184Courtesy of FORD MOTOR COMPANY
  5. NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. Refer to Clockspring or Clockspring - Vehicles With: Adaptive Steering .

    • Remove and discard the steering intermediate shaft bolt.

    • Separate the steering intermediate shaft from the steering gear.

    GFD278207Courtesy of FORD MOTOR COMPANY
  6. Remove the retainers and the upper air deflector.
    GFD278162Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure the cooling module is secure before removing the bottom cooling module support panel.

    1. Remove the upper cooling module support brackets.
    2. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

    GFD278208Courtesy of FORD MOTOR COMPANY
  8. Remove the front wheels and tires. Refer to: Wheel and Tire .
  9. Remove the retainers and the underbody shield.
    GFD278209Courtesy of FORD MOTOR COMPANY
  10. Remove the retainers and the front underbody shield.
    GFD278158Courtesy of FORD MOTOR COMPANY
  11. Remove the retainers and the underbody shields.
    GFD278210Courtesy of FORD MOTOR COMPANY
  12. NOTE: RH side shown, LH side similar.

    Remove the fasteners and position the splash shield aside on both sides.

    GFD278148Courtesy of FORD MOTOR COMPANY
  13. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
    1. Remove the nut.
    2. Remove the bolt.

    • Remove the engine appearance cover.

    • If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the intake manifold.

      Torque: 62 lb.in (7 Nm)

    GFD278211Courtesy of FORD MOTOR COMPANY
  15. Remove the following items:

    1. Refer to: Degas Bottle .
    2. Refer to: Air Cleaner .
    3. Refer to: Air Cleaner Outlet Pipe LH .
    4. Refer to: Air Cleaner Outlet Pipe RH .
    5. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    6. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    7. Refer to: Accessory Drive Belt Tensioner .
    8. Refer to: Battery Tray .

  16. Remove the stud bolt and position aside the ground cable.
    GFD278180Courtesy of FORD MOTOR COMPANY
    1. Release the tabs.
    2. Lift and position top part of junction box aside.
    GFD278212Courtesy of FORD MOTOR COMPANY
  18. Release the tab and open cover.
    GFD278213Courtesy of FORD MOTOR COMPANY
  19. Remove the nuts and disconnect the electrical connector.
    GFD278388Courtesy of FORD MOTOR COMPANY
  20. Remove the bolt and detach the wiring harness retainers.
    GFD278215Courtesy of FORD MOTOR COMPANY
  21. Disconnect the vacuum tube quick release couplings and position the tube aside. Refer to: Quick Release Coupling .
    GFD278216Courtesy of FORD MOTOR COMPANY
    1. Detach the cable from the transmission control lever.
    2. Remove the bolt and position the cable aside.
    GFD278217Courtesy of FORD MOTOR COMPANY
    1. Detach the heater hose retainer.
    2. Loosen the radiator hose clamp.
    3. Lift the radiator hose off of the retaining tab and position the hose aside.
    GFD278218Courtesy of FORD MOTOR COMPANY
    1. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Release the clamp and disconnect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
    3. Detach the heater hose retainer.
    4. Remove the bolt and position the heater hose aside.
    GFD278219Courtesy of FORD MOTOR COMPANY
    1. Remove the ground wire bolt.
    2. Detach the retainers and position the ground wire aside.
    GFD278220Courtesy of FORD MOTOR COMPANY
    • Disconnect the engine harness electrical connector and retainer.

    • Disconnect the PCM electrical connector.

    GFD278173Courtesy of FORD MOTOR COMPANY
    1. Disconnect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .
    2. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
    GFD278221Courtesy of FORD MOTOR COMPANY
  28. Detach the retainer and position the wiring harness aside.
    GFD278222Courtesy of FORD MOTOR COMPANY
  29. NOTE: Use a shop towel when removing the oil filter housing to prevent oil from spilling on the engine or accessory drive belt.

    1. Loosen the oil filter housing and allow the oil to drain out of the housing and down into the engine.
    2. Remove the oil filter housing and discard the oil filter element.
    3. Remove and discard the O-ring seals.

    GFD278195Courtesy of FORD MOTOR COMPANY
  30. Remove the transmission fluid cooler tube secondary latches.
    GFD278223Courtesy of FORD MOTOR COMPANY
  31. Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler thermal bypass valve. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
    GFD278224Courtesy of FORD MOTOR COMPANY
  32. Detach and disconnect the engine harness electrical connector.
    GFD278225Courtesy of FORD MOTOR COMPANY
  33. Remove the generator nut.
    GFD278226Courtesy of FORD MOTOR COMPANY
    1. Detach the wiring harness retainer.
    2. Position the A/C line bracket from the generator stud.
    GFD278227Courtesy of FORD MOTOR COMPANY
  35. Detach the wiring harness retainers, slide up the insulator and disconnect the electrical connectors.
    GFD278228Courtesy of FORD MOTOR COMPANY
  36. NOTE: Make sure that all openings are sealed.

    Remove the A/C compressor inlet and outlet line nuts and disconnect the fittings.

    GFD278229Courtesy of FORD MOTOR COMPANY
  37. Remove the bolts, stud bolt and the A/C compressor.
    GFD278230Courtesy of FORD MOTOR COMPANY
    1. Remove the M8 x 50mm bolt.
    2. Remove the M10 x 43mm bolt.
    3. Remove the M8 x 30mm bolt and the A/C compressor mounting bracket.
    GFD278231Courtesy of FORD MOTOR COMPANY
  39. NOTE: The drain plug should be removed and installed by hand, do not use tools.

    1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

    GFD278196Courtesy of FORD MOTOR COMPANY
  40. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed. Using compressed air, clean the sensor housing area.

    Remove the bolt and the LH anti-lock sensor.

    GFD278141Courtesy of FORD MOTOR COMPANY
  41. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed. Using compressed air, clean the sensor housing area.

    Remove the bolt and the RH anti-lock sensor.

    GFD278140Courtesy of FORD MOTOR COMPANY
  42. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove and discard the nut and position the LH sway bar link aside.

    GFD278232Courtesy of FORD MOTOR COMPANY
  43. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove and discard the nut and position the RH sway bar link aside.

    GFD278233Courtesy of FORD MOTOR COMPANY
  44. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove the front brake discs. Refer to: Brake Disc .

  45. Remove the nuts and the subframe support bracket.
    GFD278234Courtesy of FORD MOTOR COMPANY
  46. Remove the following items:

    1. Exhaust flexible pipes. Refer to: Exhaust Flexible Pipe .
    2. LH catalytic convertor. Refer to: Catalytic Converter LH .

    4WD

  47. Remove the driveshaft. Refer to: Rear Driveshaft .

    2WD/4WD

  48. Remove the oil pan bolts.
    GFD278235Courtesy of FORD MOTOR COMPANY
    1. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine.
    2. NOTE: Do not reuse the oil pans sealed by Motorcraft® High Performance Engine RTV Silicone. Oil pans sealed by Motorcraft® High Performance Engine RTV Silicone are to be removed and discarded. The replacement oil pan will have a press-in-place gasket.

      Remove the oil pan. Discard the oil pan if it is sealed with Motorcraft® High Performance Engine RTV Silicone.

    GFD278236Courtesy of FORD MOTOR COMPANY
  50. If equipped, remove and discard the oil pan press-in-place gasket.
    GFD278237Courtesy of FORD MOTOR COMPANY
  51. Remove and discard the oil pump seal.
    GFD278238Courtesy of FORD MOTOR COMPANY
  52. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
    GFD278239Courtesy of FORD MOTOR COMPANY
  53. Mark the subframe location.
    GFD278240Courtesy of FORD MOTOR COMPANY
  54. Mark the subframe location.
    GFD278241Courtesy of FORD MOTOR COMPANY
  55. NOTE: The boards must be positioned to properly support the engine, transmission and subframe, and allow clearance between the powertrain jack and the exhaust components to prevent damage.

    Position lengths of 2 x 6 boards on the powertrain jack to support the powertrain and subframe. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block

    GFD278242Courtesy of FORD MOTOR COMPANY
  56. Remove the engine-to-transmission bolt.
    GFD278243Courtesy of FORD MOTOR COMPANY
    1. NOTE: Position a board under the cylinder block rail.

      Position the powertrain jack and boards under the powertrain and subframe. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block

    2. Install. Use the General Equipment: Adjustable Mounting Arm
    GFD278244Courtesy of FORD MOTOR COMPANY
  58. Remove and discard the nuts and bolts.

    • Separate the LH knuckle from the strut.

    GFD278245Courtesy of FORD MOTOR COMPANY
  59. Remove and discard the nuts and bolts.

    • Separate the RH knuckle from the strut.

    GFD278246Courtesy of FORD MOTOR COMPANY
  60. NOTE: The engine mount and bracket are serviced as an assembly. Do not remove the engine mount bracket-to-engine mount bolt, this fastener is not serviceable.

    • Remove and discard the nut and bolts.

    • Remove the engine mount and bracket assembly.

    GFD278247Courtesy of FORD MOTOR COMPANY
  61. Remove and discard the transmission mount bolts.
    GFD278248Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the subframe bolts.
    2. Remove the bolts and the subframe brackets.
    GFD278249Courtesy of FORD MOTOR COMPANY
  63. Remove and discard the subframe bolts.
    GFD278250Courtesy of FORD MOTOR COMPANY
  64. Using the powertrain jack, lower the powertrain and subframe as an assembly. Use the General Equipment: Powertrain Jack
    GFD278251Courtesy of FORD MOTOR COMPANY
    • Disconnect the crankcase pressure sensor electrical connector.

    • Detach the PCV tube retainer.

    GFD278252Courtesy of FORD MOTOR COMPANY
    1. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
    2. Disconnect the EVAP purge valve electrical connector.
    3. Lift the EVAP purge valve off of the intake manifold mounting tab.
    GFD278253Courtesy of FORD MOTOR COMPANY
  67. Disconnect the engine wiring harness electrical connectors and retainers.
    GFD278254Courtesy of FORD MOTOR COMPANY
    1. Remove the vacuum harness pressure sensor bolt.
    2. Disconnect the wiring harness electrical connectors.
    3. Detach the wiring harness and vacuum harness retainers.
    GFD278255Courtesy of FORD MOTOR COMPANY
  69. Detach the wiring harness retainers.
    GFD278256Courtesy of FORD MOTOR COMPANY
  70. Disconnect the CMP electrical connectors.
    GFD278257Courtesy of FORD MOTOR COMPANY
    • Slide the insulator up to access the CHT electrical connector.

    • Disconnect the engine wiring harness electrical connectors and detach the harness and vacuum hose retainers.

    GFD278258Courtesy of FORD MOTOR COMPANY
  72. Remove the bolts and position TC boost solenoid aside.
    GFD278259Courtesy of FORD MOTOR COMPANY
  73. Disconnect the TC vacuum supply hose.
    GFD278260Courtesy of FORD MOTOR COMPANY
  74. Remove the oil level indicator.
    GFD278261Courtesy of FORD MOTOR COMPANY
  75. Disconnect the oil pressure control solenoid electrical connector.
    GFD278262Courtesy of FORD MOTOR COMPANY
  76. Remove the retainer and the oil pressure control solenoid.
    GFD278263Courtesy of FORD MOTOR COMPANY
  77. Detach the wiring harness retainers.
    GFD278264Courtesy of FORD MOTOR COMPANY
    1. Disconnect the PCV tube quick release couplings and remove the tube. Refer to: Quick Release Coupling .
    2. Disconnect the throttle body electrical connector.
    GFD278265Courtesy of FORD MOTOR COMPANY
  79. Remove the bolts and the throttle body.
    GFD278266Courtesy of FORD MOTOR COMPANY
  80. Inspect the throttle body gasket and replace as needed.
    GFD278267Courtesy of FORD MOTOR COMPANY
    • Disconnect the high pressure fuel pump electrical connector.

    • Detach the wiring harness retainers.

    GFD278389Courtesy of FORD MOTOR COMPANY
    • Disconnect the engine wiring harness electrical connector and retainers.

    • Detach the vacuum tube and coolant tube retainers.

    GFD278268Courtesy of FORD MOTOR COMPANY
    • Disconnect the TC vacuum supply tube. Use the General Equipment: Hose Clamp Remover/Installer

    • Detach the vacuum tube retainers.

    GFD278269Courtesy of FORD MOTOR COMPANY
  84. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the bolts and the coil-on-plug assemblies.

    GFD278270Courtesy of FORD MOTOR COMPANY
  85. Loosen the fasteners and remove the valve cover.
    GFD278271Courtesy of FORD MOTOR COMPANY
  86. Remove and discard the gasket.

    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    GFD278272Courtesy of FORD MOTOR COMPANY
  87. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD278273Courtesy of FORD MOTOR COMPANY
  88. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
    GFD278274Courtesy of FORD MOTOR COMPANY
  89. Loosen the fasteners and remove the valve cover.
    GFD278275Courtesy of FORD MOTOR COMPANY
  90. Remove and discard the gasket.

    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    GFD278276Courtesy of FORD MOTOR COMPANY
  91. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD278277Courtesy of FORD MOTOR COMPANY
  92. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
    GFD278278Courtesy of FORD MOTOR COMPANY
  93. Remove the bolt and the idler pulley.
    GFD278279Courtesy of FORD MOTOR COMPANY
  94. Remove the bolt, the stud and position the generator aside.
    GFD278280Courtesy of FORD MOTOR COMPANY
  95. Remove the crankshaft pulley bolt.
    GFD278281Courtesy of FORD MOTOR COMPANY
  96. Using the 3 Leg Puller and a step plate, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
    GFD278282Courtesy of FORD MOTOR COMPANY
  97. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

      Remove the crankshaft pulley bolt.

    GFD278283Courtesy of FORD MOTOR COMPANY
  98. Remove the fasteners and the insulator.
    GFD278284Courtesy of FORD MOTOR COMPANY
  99. Remove the bolts and the coolant pump pulley.
    GFD278285Courtesy of FORD MOTOR COMPANY
  100. Remove the bolts and the coolant pump.
    GFD278286Courtesy of FORD MOTOR COMPANY
  101. Remove and discard the coolant pump gasket and seal.
    GFD278287Courtesy of FORD MOTOR COMPANY

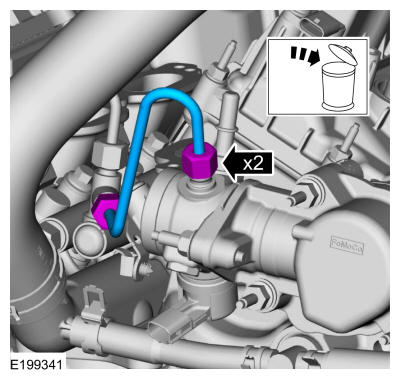

  102. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.

    • Loosen the high-pressure fuel pump-to-fuel rail high-pressure fuel tube flare nuts.

    • Remove and discard the high-pressure fuel tube.

    GFD278390Courtesy of FORD MOTOR COMPANY
  103. NOTE: Alternately loosen the high-pressure fuel pump nuts one revolution at a time.

    Remove the nuts and the high-pressure fuel pump.

    GFD278391Courtesy of FORD MOTOR COMPANY
  104. Remove and discard the high-pressure fuel pump O-ring seal.
    GFD278392Courtesy of FORD MOTOR COMPANY
  105. Remove the high-pressure fuel pump tappet.
    GFD278393Courtesy of FORD MOTOR COMPANY

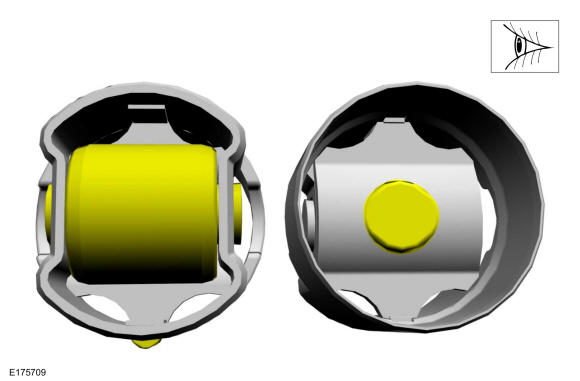

  106. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as necessary.
    GFD278394Courtesy of FORD MOTOR COMPANY
  107. Remove the stud bolts and the high-pressure fuel pump drive unit.
    GFD278395Courtesy of FORD MOTOR COMPANY

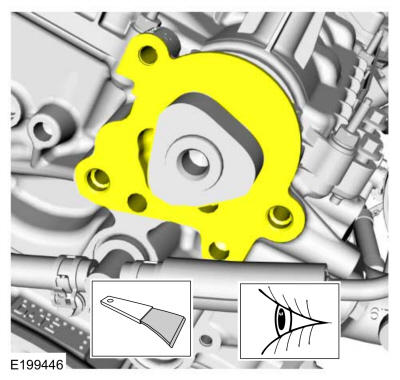

  108. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
    GFD278396Courtesy of FORD MOTOR COMPANY
  109. NOTE: There are 4 different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    GFD278290Courtesy of FORD MOTOR COMPANY
  110. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver
    GFD278291Courtesy of FORD MOTOR COMPANY
  111. Remove and discard the engine front cover gaskets.
    GFD278292Courtesy of FORD MOTOR COMPANY
  112. Remove and discard the oil gallery seal (6G068).
    GFD278293Courtesy of FORD MOTOR COMPANY
  113. GFD278294Courtesy of FORD MOTOR COMPANY
  114. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
    GFD278295Courtesy of FORD MOTOR COMPANY
  115. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

    Install the original crankshaft pulley bolt.

    GFD278296Courtesy of FORD MOTOR COMPANY
  116. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.

    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

    GFD278297Courtesy of FORD MOTOR COMPANY
  117. Remove the bolts and the RH timing chain tensioner.
    GFD278298Courtesy of FORD MOTOR COMPANY
  118. Remove the RH timing chain tensioner arm.
    GFD278299Courtesy of FORD MOTOR COMPANY
  119. Remove the bolts and the RH timing chain guide.
    GFD278300Courtesy of FORD MOTOR COMPANY
  120. Remove the RH timing chain.
    GFD278301Courtesy of FORD MOTOR COMPANY
    1. Install Special Service Tool: 303-1248 Camshaft holding tools.
    2. Remove and discard the VCT unit bolts.
    3. Remove the VCT units.
    4. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD278397Courtesy of FORD MOTOR COMPANY

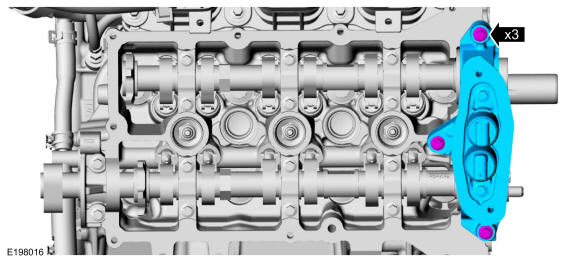

  122. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

    Remove the bolts and the front camshaft bearing mega cap.

    GFD278398Courtesy of FORD MOTOR COMPANY
  123. Remove the bolts and the camshaft bearing caps.
    GFD278399Courtesy of FORD MOTOR COMPANY
  124. Remove the intake and exhaust camshafts.
    GFD278400Courtesy of FORD MOTOR COMPANY
    1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
    2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
    3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.
GFD278401Courtesy of FORD MOTOR COMPANY
scientia non olet · About LEMON Manuals
