Engine Block Skirt Stiffener
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Special Tool(s) / General Equipment
| 205-153 (T80T-4000-W) Handle | |
|---|---|
| 303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW | |
| 303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW | |
| 303-1250 Seal Installer, Rear Main TKIT-2006UFFLM | |
| 303-1531 Installer, Front Crank Seal and Damper | |
| 303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW | |
| 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal TKIT-1988-FLM TKIT-1988-F | |
| Floor Crane | |
| Mounting Stand | |
| Flat-Bladed Screwdriver | |
| Vise | |
| Vise Jaw Protectors |
Materials
| Name | Specification |
|---|---|
| Motorcraft® High Performance Engine RTV Silicone TA-357 | WSE-M4G323-A6 |
| Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil XO-5W30-Q1SP | WSS-M2C946-B1 |
| Motorcraft® Orange Concentrated Antifreeze/Coolant VC-3-B | WSS-M97B44-D |
-
NOTE: If the engine block skirt stiffener is not installed, aligned and the bolts tightened to minimum specification within 10 minutes, the sealant must be removed and the sealing area cleaned.

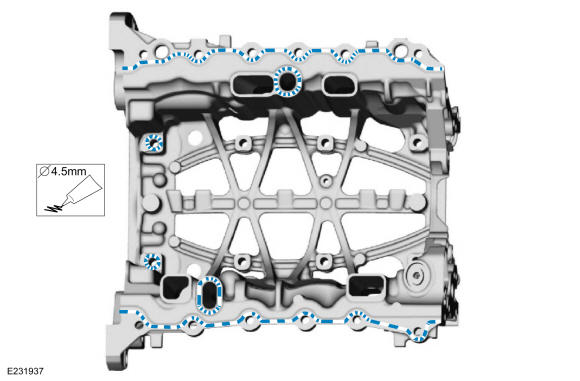

Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine block skirt stiffener.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
-
- Position the oil seal.

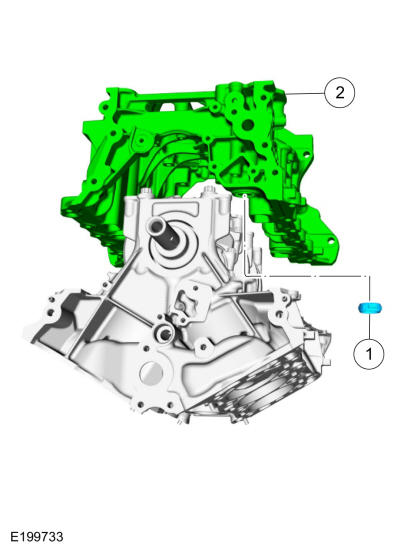

- Install the engine block skirt stiffener.
-
- Install the bolts finger tight.

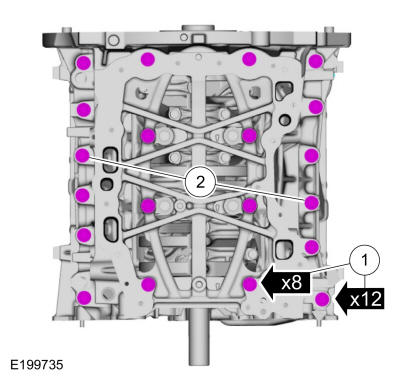

- Tighten the 2 bolts.
Torque: Stage 1: 35 lb.in (4 Nm) Stage 2: Loosen: 360 deg.
-

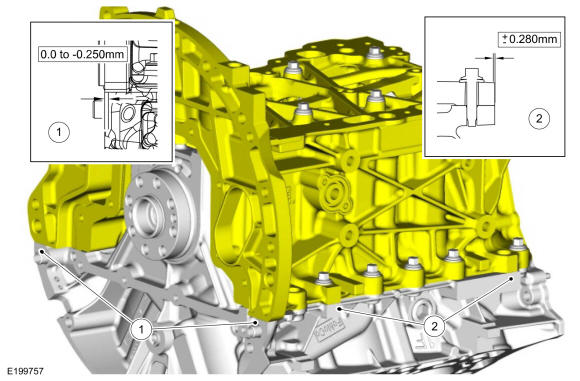

- Using a straight edge, align the rear face of the engine block skirt stiffener to the rear face of the engine block, flush or up to 0.250 mm (0.01 in) underflush.
- Using a straight edge, align the machined bosses on the left side of the engine block skirt stiffener to the machined bosses on the left side of the engine block flush or within 0.280 mm (0.011) of flush.
-
NOTE: If the engine block skirt stiffener bolts minimal torque is not completed within 10 minutes of sealant application, or if final torque is not met within 60 minutes of sealant application the parts must be removed and the sealant must be removed and the sealing area cleaned.

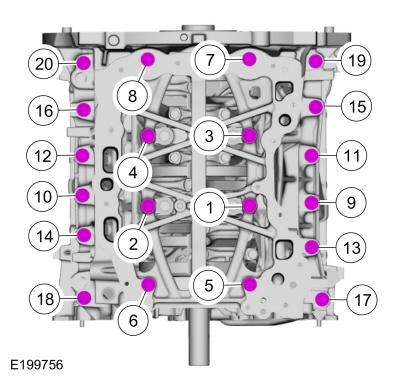

Tighten the engine block skirt stiffener bolts.
Torque: Stage 1: 35 lb.in (4 Nm) Stage 2: 18 lb.ft (24 Nm)

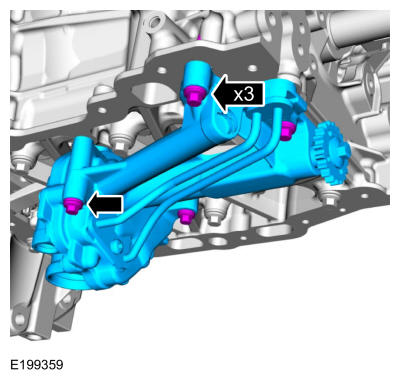

- Install the oil pump and the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

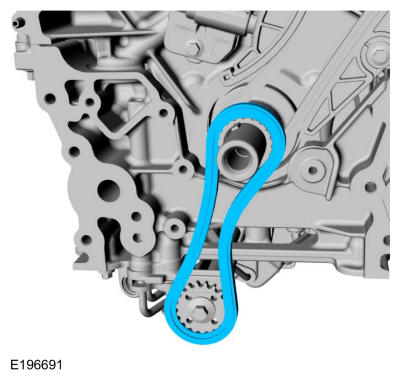

- Install the oil pump drive chain.
- Install the oil pump drive chain guide and bolts.
Torque: 89 lb.in (10 Nm)
-

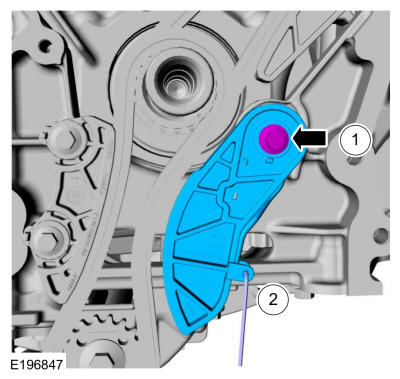

- Install the oil pump drive chain tensioner and bolt.
Torque: 89 lb.in (10 Nm)
- Remove the pin.
- Install the oil pump drive chain tensioner and bolt.
-
NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.

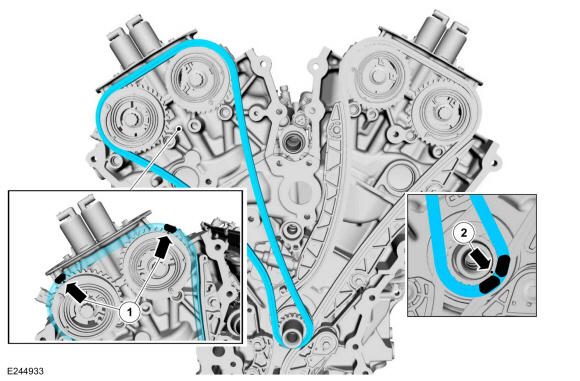

- Install the RH timing chain with the single colored links aligned with the triangle timing marks on the VCT units.
- Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

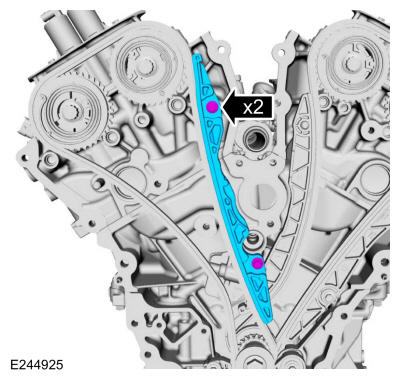

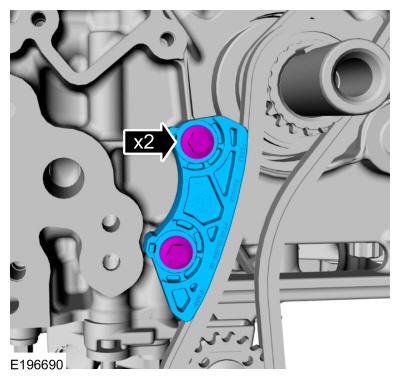

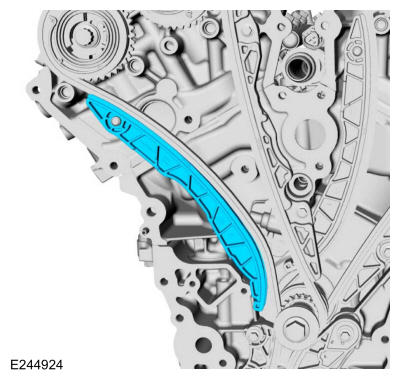

- Install the RH timing chain guide and bolts.
Torque: 89 lb.in (10 Nm)
- Install the RH timing chain tensioner arm.

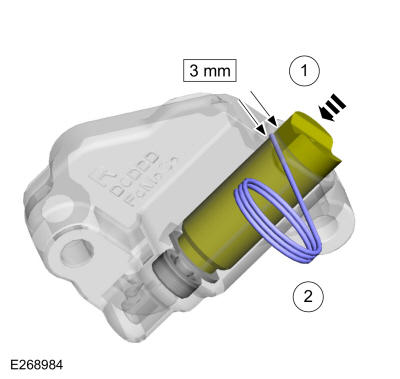

- Slide the tensioner cylinder out of the RH timing chain tensioner housing.
-
NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.
Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

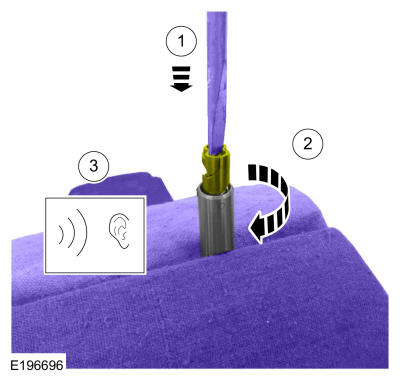

- Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise. Use the General Equipment: Vise Jaw Protectors. Use the General Equipment: Flat-Bladed Screwdriver
- Rotate the screwdriver clockwise approximately one turn.
- An audible click will be heard when the tensioner ratchet mechanism locks into place.
- Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.
-
- Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0.125 in) below the top of the housing.

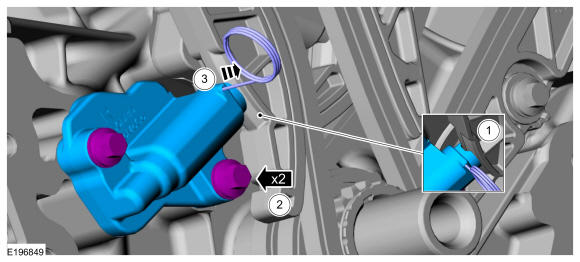

- Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.
-
- Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
- Install the bolts.
Torque: 89 lb.in (10 Nm)
- Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.
- Install new engine front cover gaskets.

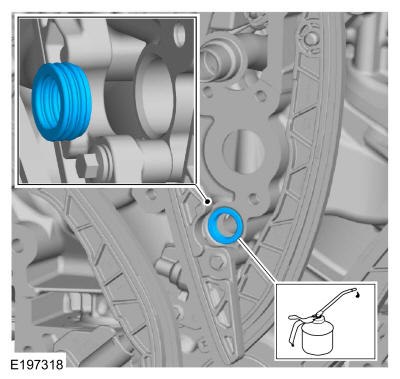

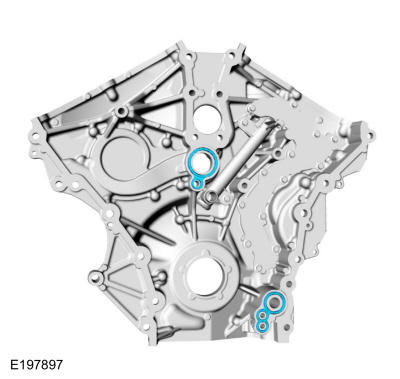

- Lubricate and install a new oil gallery seal (6G068).
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
-
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

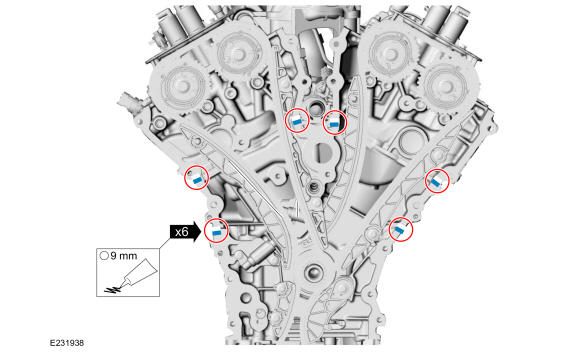

Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the cylinder block skirt-to-cylinder block joint and the cylinder head-to-cylinder block joint areas as indicated.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
-
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

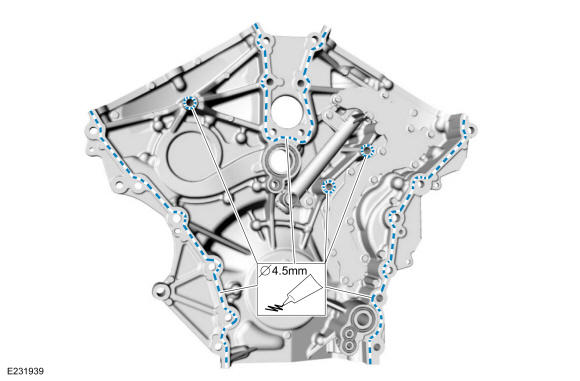

Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Install the engine front cover and the fasteners.

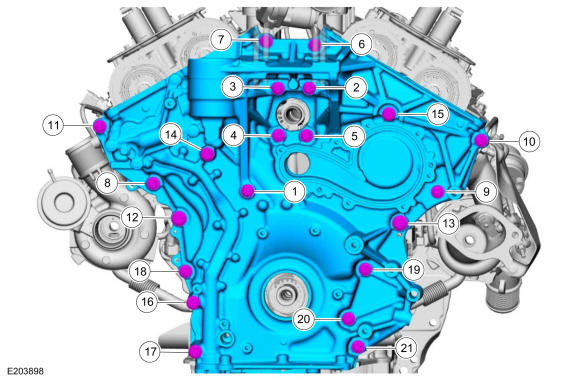

Torque: Stage 1: Tighten bolts 1 through 11 to: 18 lb.ft (24 Nm) Stage 2: Tighten bolts 12 through 13 to: 35 lb.ft (48 Nm) Stage 3: Tighten bolts 14 through 21 to: 18 lb.ft (24 Nm)

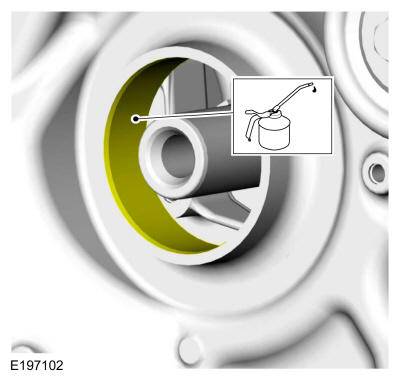

- Lubricate the engine front cover bore with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

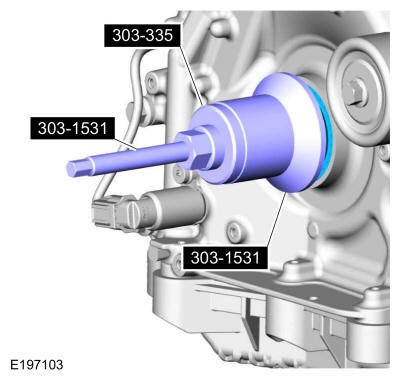

- Using the special tools, install the new crankshaft front oil seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1531 Installer, Front Crank Seal and Damper.

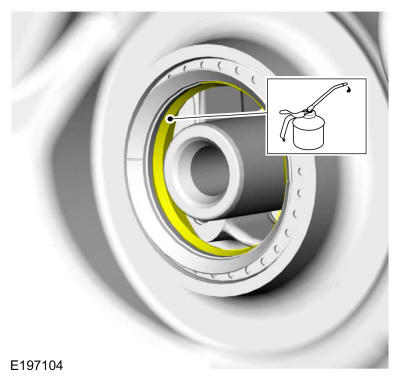

- Lubricate the crankshaft front seal inner lip with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

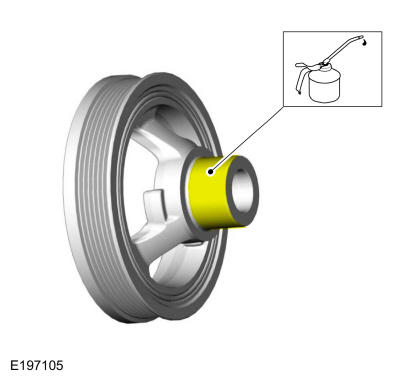

- Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

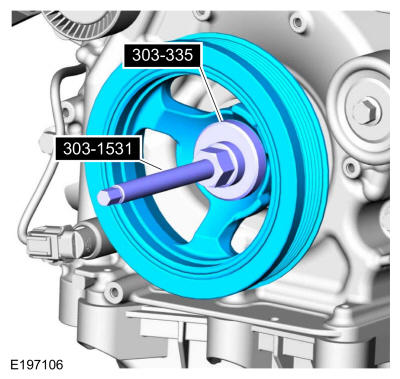

- Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1531 Installer, Front Crank Seal and Damper.
-
NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

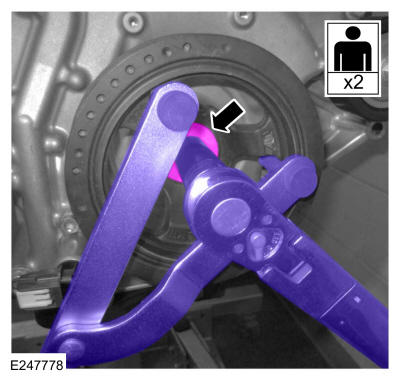

Using a universal pulley holder, install and tighten a new crankshaft pulley bolt.
Torque: Stage 1: 166 lb.ft (225 Nm) Stage 2: Loosen: 360 deg. Stage 3: 26 lb.ft (35 Nm) Stage 4: 270 deg.

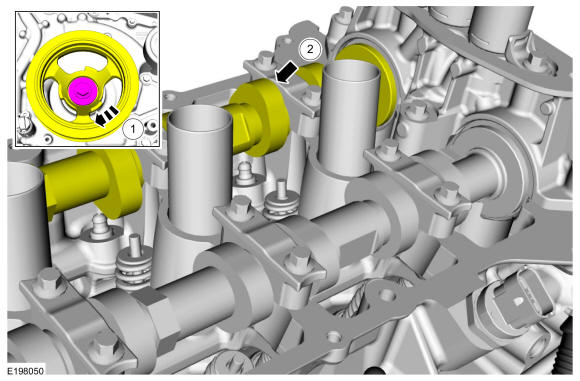

- Rotate the crankshaft pulley bolt clockwise to position the camshaft lobe upward for the camshaft roller follower to be installed.
-
NOTE: Installation of new seals is only required if damaged seals were removed.

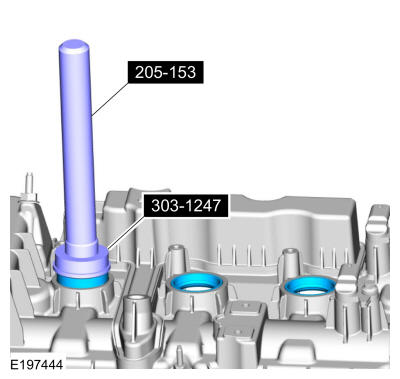

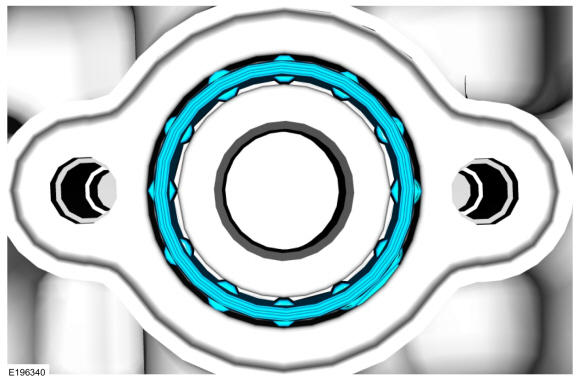

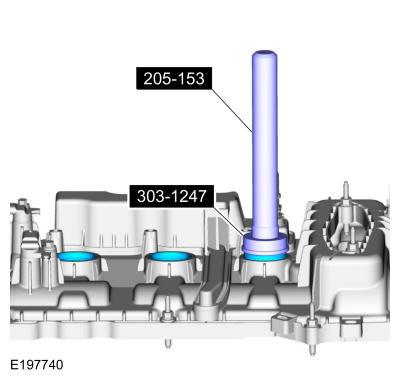

Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
- Install a new gasket.

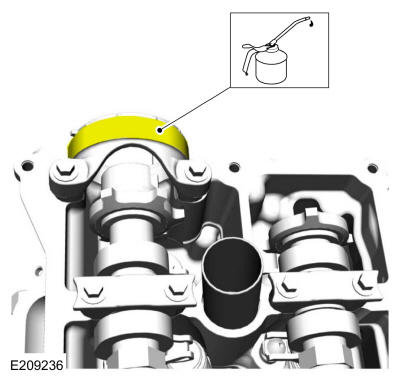

- Apply clean engine oil to the surface.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
-
NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

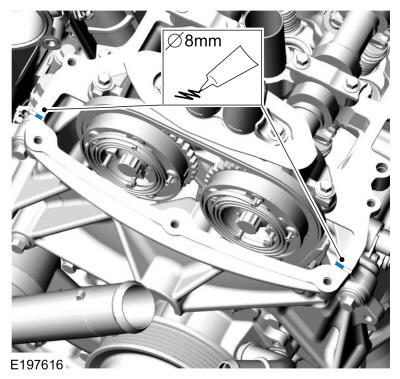

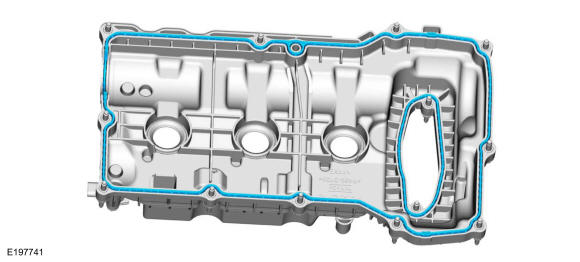

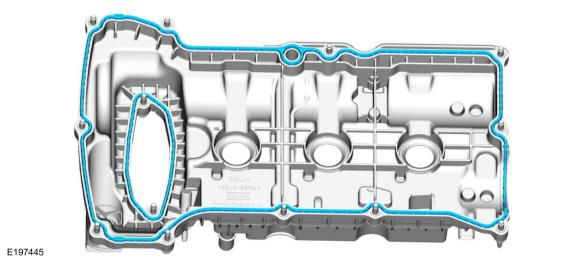

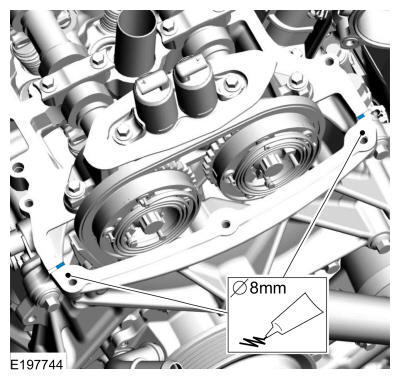

Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

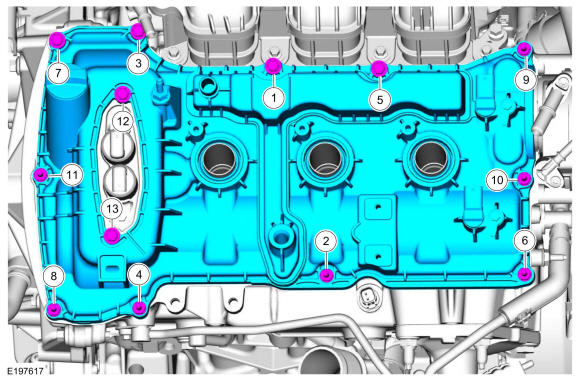

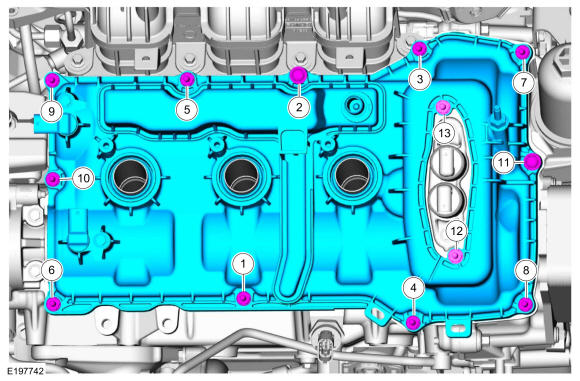

- Install the valve cover and tighten the bolts.
Torque: 89 lb.in (10 Nm)
-
NOTE: Installation of new seals is only required if damaged seals were removed.
Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
- Install a new gasket.
- Apply clean engine oil to the surface.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
-
NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.
Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Install the valve cover and tighten the bolts.
Torque: 89 lb.in (10 Nm)
- Install a new oil pump seal.
-
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 minutes of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
- Install a new oil pan press-in-place gasket.

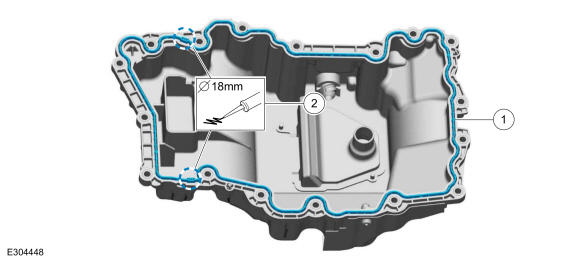

- Apply a 18 mm (0.708 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder block joint areas on the oil pan.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

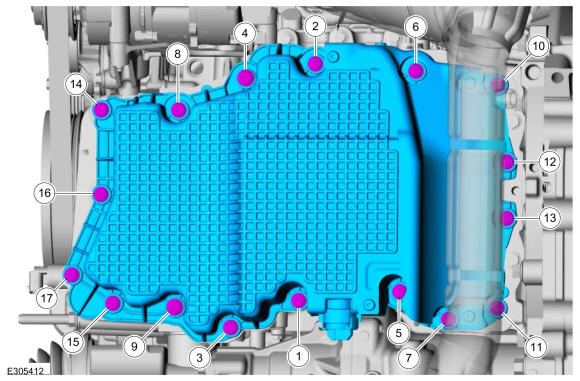

- Install the oil pan and the bolts.
Torque: Stage 1: 31 lb.in (3.5 Nm) Stage 2: 89 lb.in (10 Nm)

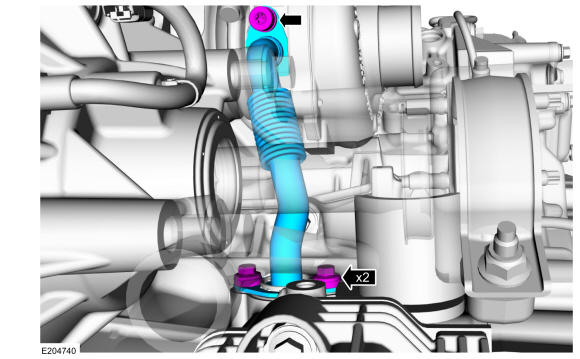

- Install the new TC oil return tube-to-engine block gasket.
- Install a new TC oil return tube O-ring seal and then lubricate with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
-
NOTE: AWD shown FWD is similar.

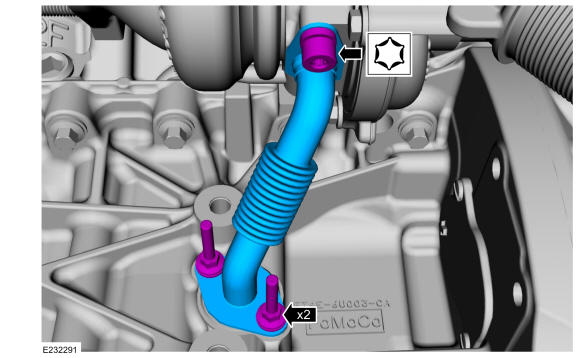

Install the TC oil return tube and the bolts.
Torque: 89 lb.in (10 Nm)
- Install the new TC oil return tube-to-engine block gasket.
- Install a new TC oil return tube O-ring seal and then lubricate with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
- Install the TC oil return tube, then install and tighten the bolts.
Torque: 89 lb.in (10 Nm)
-

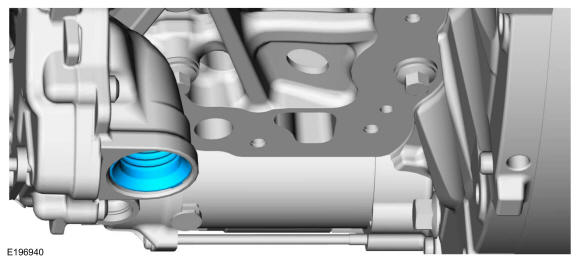

- Lubricate the inside and the outside diameter of the grommet with clean engine coolant.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
- Install the grommet so it is flush with the rear of the coolant pump housing.

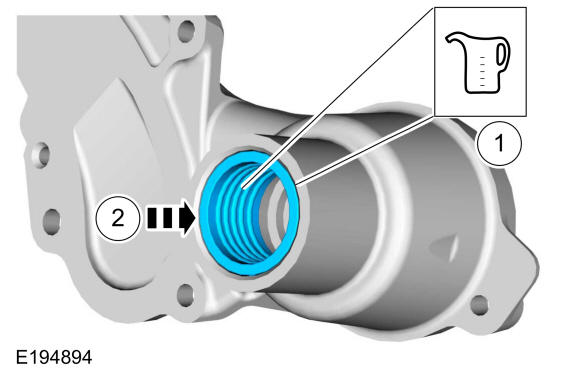

- Lubricate the inside and the outside diameter of the grommet with clean engine coolant.
-
NOTE: Verify the front cover dowel pins are aligned to the coolant pump and that the coolant pump is fully seated prior to installing the fasteners.

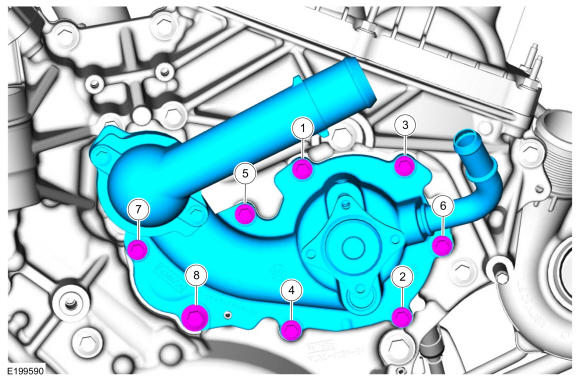

- Using a new gasket, install the coolant pump and the fasteners.
Torque: Fasteners 1-7: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.
- Torque: Fastener 8: 18 lb.ft (24 Nm)
- Using a new gasket, install the coolant pump and the fasteners.

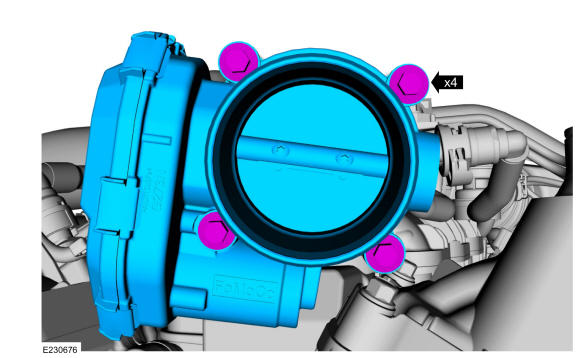

- Install the gasket, the throttle body and the bolts.
Torque: 89 lb.in (10 Nm)
- Inspect and replace any ignition coil-on-plugs that have rubber boots with cracks, rips or tears.
-

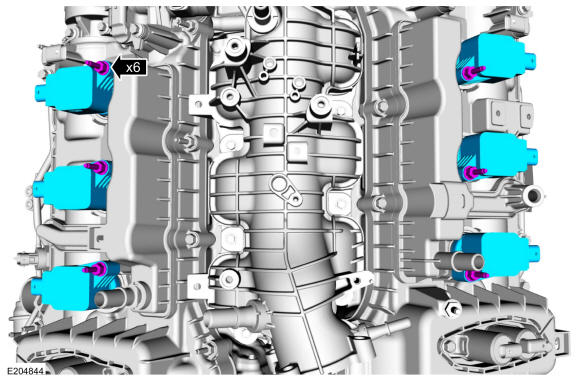

- Install the ignition coil-on-plugs.
- Install and tighten the ignition coil-on-plug stud bolts.
Torque: 53 lb.in (6 Nm)

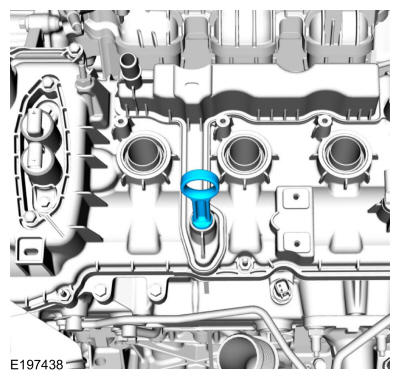

- Install the oil level indicator.

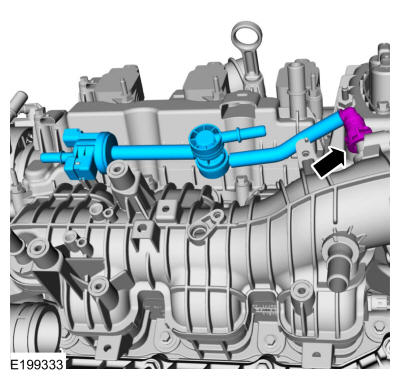

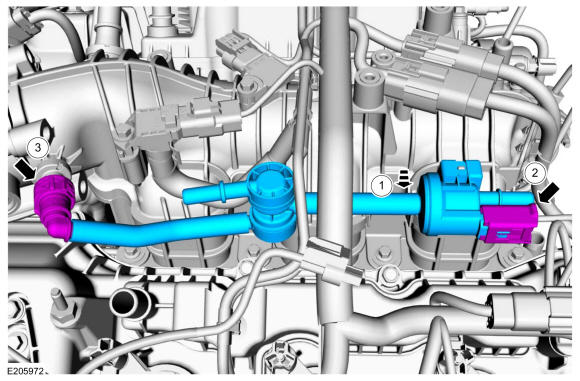

- Install the EVAP purge valve and connect the quick release coupling. Refer to: Quick Release Coupling
.
-

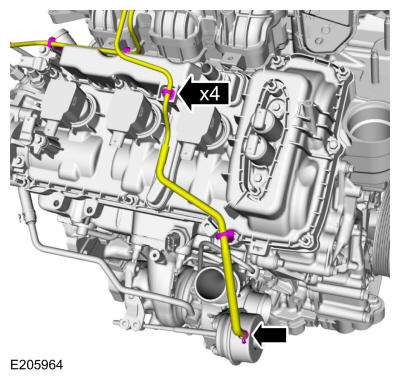

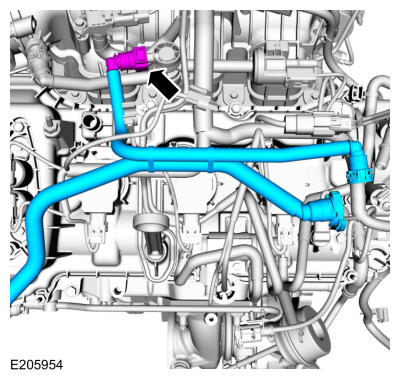

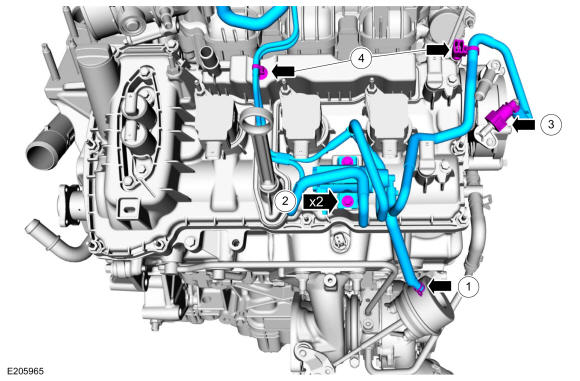

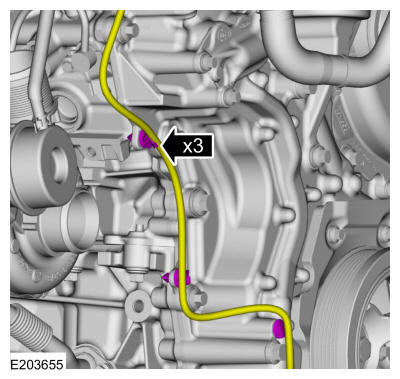

- Install the vacuum tube assembly onto the engine and connect the vacuum hose and clamp to the TC.
- Install the vacuum control solenoid bolts.
Torque: 62 lb.in (7 Nm)

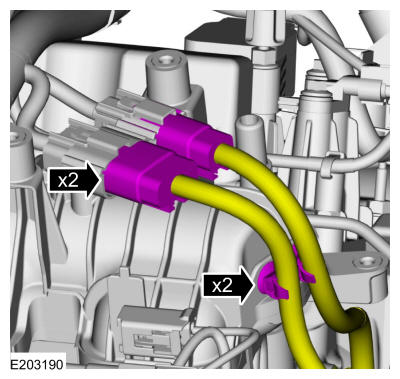

- Connect the vacuum tube quick release coupling. Refer to: Quick Release Coupling .
- Attach the vacuum hose retainers.
- Connect the vacuum hose and clamp to the TC.
- Attach the vacuum hose retainers.

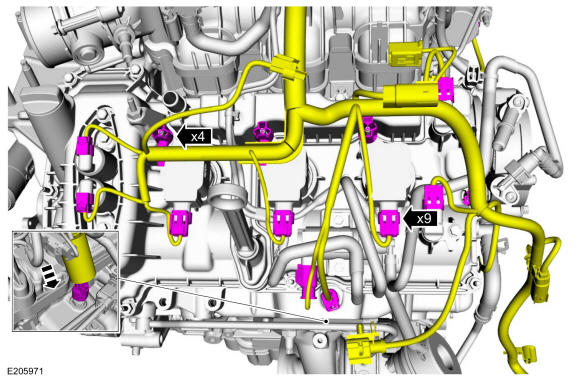

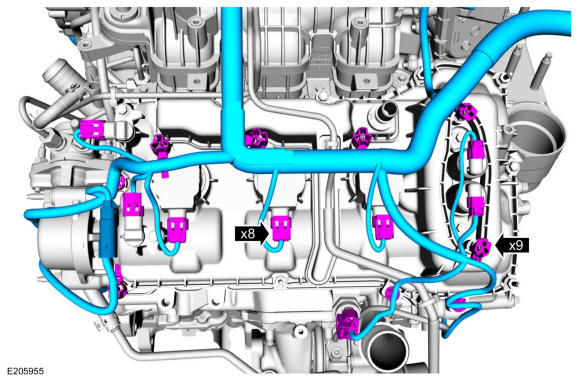

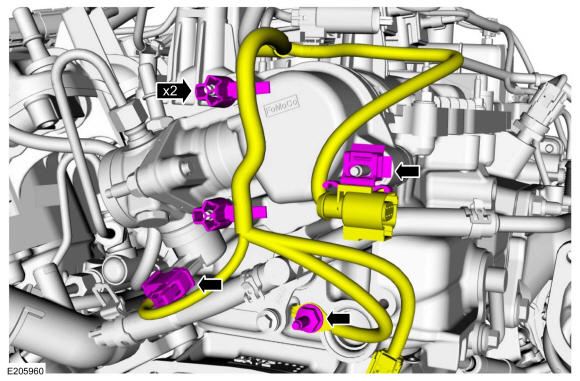

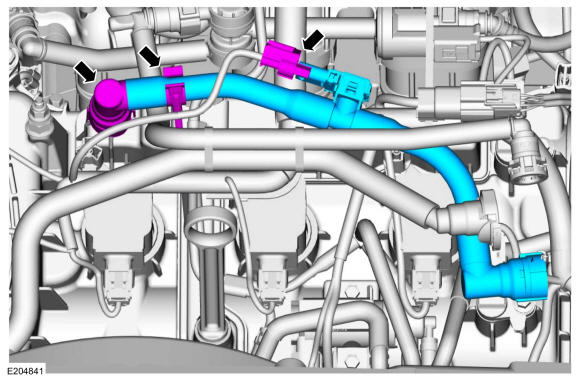

- Install the engine wiring harness onto the engine.
- Connect the engine wiring harness electrical connectors and attach the retainers.
-
- Connect the engine wiring harness electrical connectors and attach the wiring harness retainers.
- Slide the insulator down over the CHT electrical connector.
-
- Install the vacuum harness pressure sensor bolt.
Torque: 62 lb.in (7 Nm)

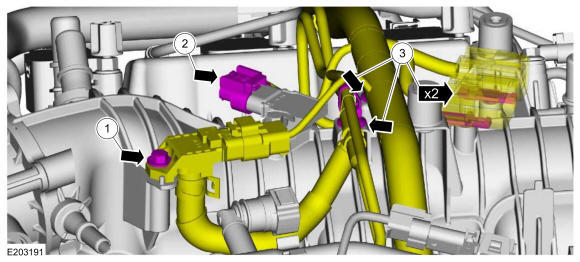

- Connect the MAP sensor electrical connector.
- Attach the wiring harness and vacuum harness retainers.
- Install the vacuum harness pressure sensor bolt.
- Connect the engine wiring harness electrical connectors and attach the retainers.
-
- Install the EVAP purge valve onto the intake manifold mounting tab.
- Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
- Connect the EVAP purge valve electrical connector.
- Install the EVAP tube and connect the quick release coupling. Refer to: Quick Release Coupling
.
-
- Install the PCV tube and connect the quick release coupling. Refer to: Quick Release Coupling .
- Connect the crankcase pressure sensor electrical connector.
- Attach the PCV tube retainer.
-
- Install the PCV tube and connect the quick release couplings. Refer to: Quick Release Coupling .
- Connect the throttle body electrical connector and attach the wiring harness retainer.
-

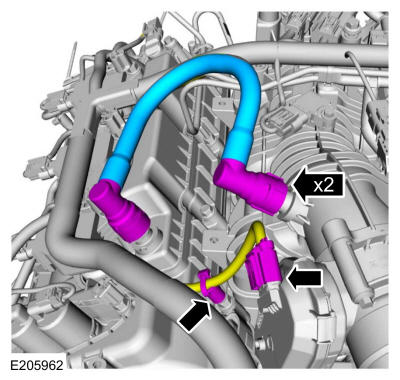

- Install the ground wire and stud bolt.
Torque: 89 lb.in (10 Nm)
- Connect the high pressure fuel pump electrical connector.
- Attach the wiring harness retainers.
- Install the ground wire and stud bolt.
- Attach the wiring harness retainers.
-
- Install the oil pressure control solenoid and the retainer.
Torque: 97 lb.in (11 Nm)
- Disconnect the oil pressure control solenoid electrical connector.
- Install the oil pressure control solenoid and the retainer.
-
- Install the generator stud.
Torque: 71 lb.in (8 Nm)
- Install the generator and the bolt.
Torque: 35 lb.ft (47 Nm)

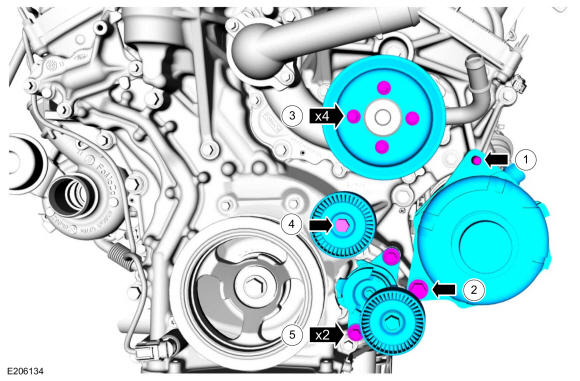

- Install the coolant pump pulley and the bolts.
Torque: 89 lb.in (10 Nm)
- Install the idler pulley and bolt.
Torque: 35 lb.ft (48 Nm)
- Install the accessory drive belt tensioner and the bolts.
Torque: 18 lb.ft (25 Nm)
- Install the generator stud.

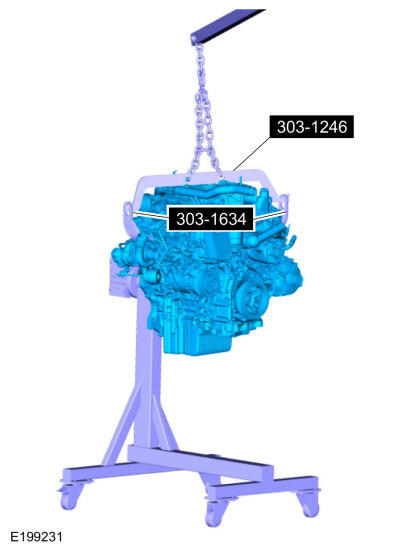

- Using a floor crane, remove the engine from the mounting stand. Install Special Service Tool: 303-1634 Lift Eyes (2)., 303-1246 Engine Spreader Bar. Use the General Equipment: Floor Crane. Use the General Equipment: Mounting Stand

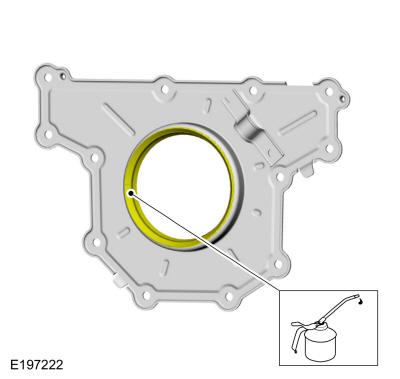

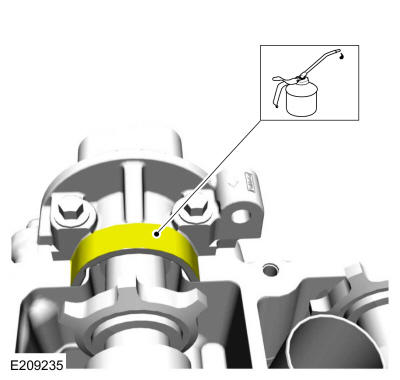

- Lubricate the crankshaft rear seal lips with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
-
NOTE: The crankshaft rear seal and retainer plate must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

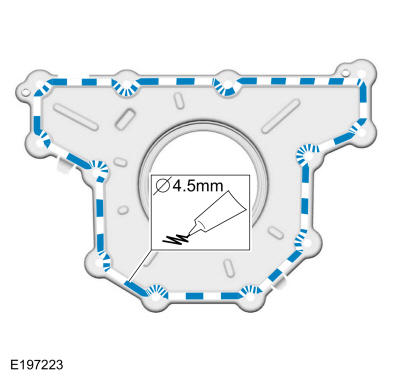

Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the crankshaft rear seal and retainer plate.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
-

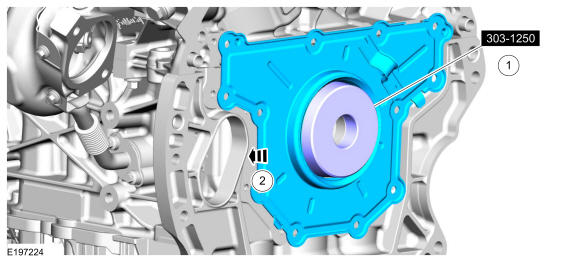

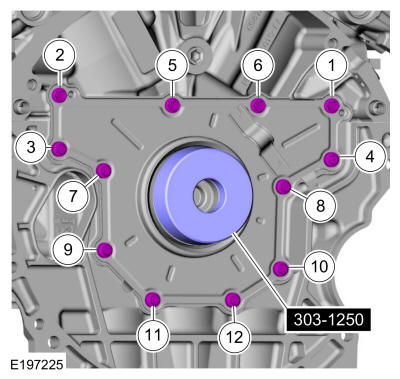

- Position the special tool onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.
- Slide the new crankshaft rear seal and retainer plate onto the tool and into the installed position.
- Install the crankshaft rear seal retainer plate bolts. Remove Special Service Tool: 303-1250 Seal Installer, Rear Main.
Torque: 89 lb.in (10 Nm)
-

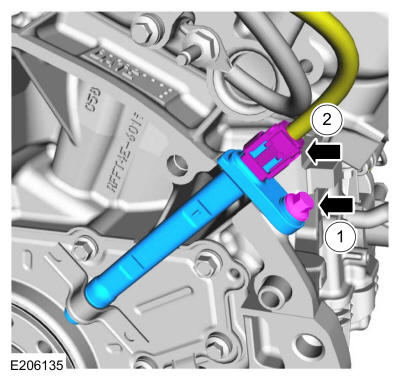

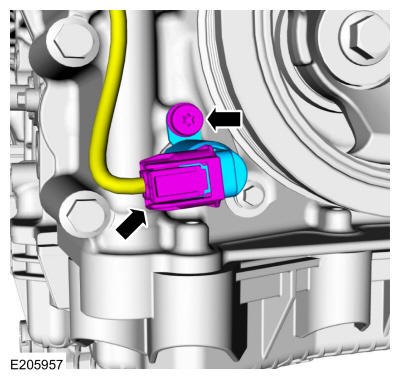

- Install the CKP sensor and the bolt.
Torque: 89 lb.in (10 Nm)
- Connect the CKP sensor electrical connector.
- Install the CKP sensor and the bolt.

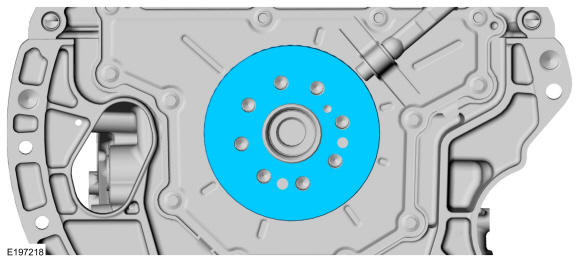

- Install the crankshaft sensor ring.
-
- Position the flexplate on the crankshaft.

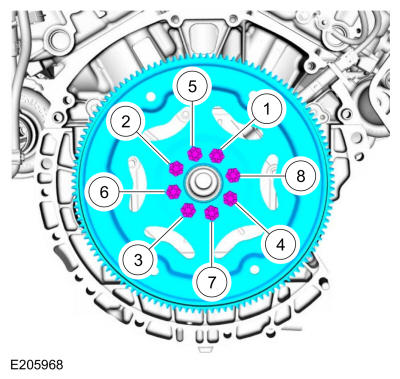

- Install the bolts then rundown the bolts one turn at a time in sequence shown until the flexplate is snug against the rear face of the crankshaft.
- Final tighten the bolts in sequence shown.
Torque: 59 lb.ft (80 Nm)
- Install the engine into the vehicle. Refer to: Engine .
