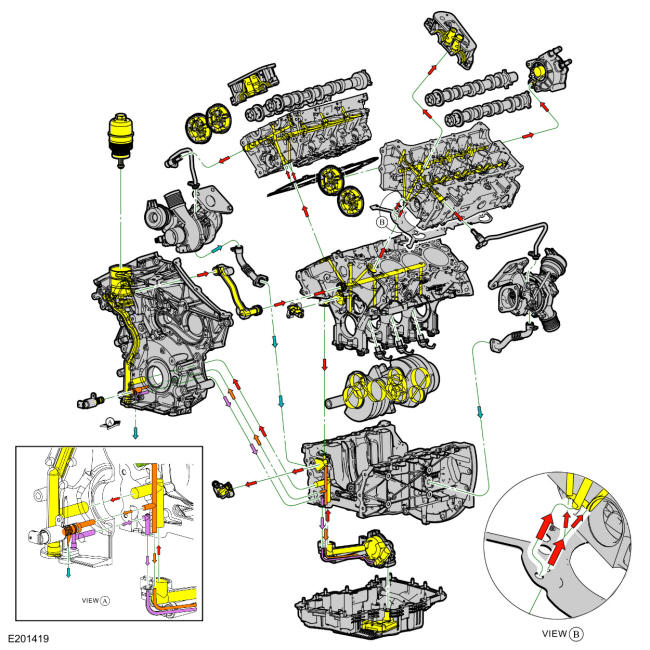

Oil Flow
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| Yellow |
High pressure oil |
| Orange |
Constant high pressure feedback (55 psi) |
| Purple |
Low pressure (25 psi) control |
| Blue |
Oil return low pressure |
