Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

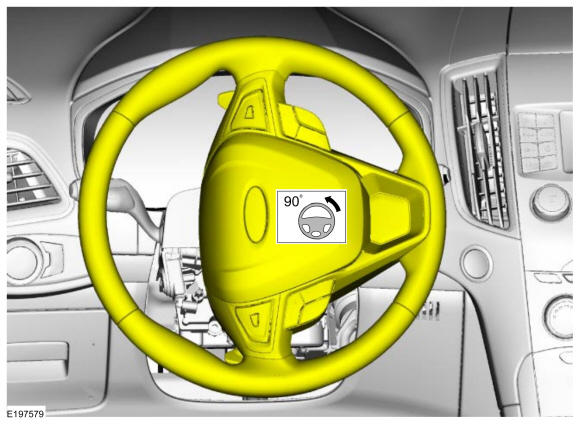

  2. Turn the steering wheel 90 degrees left.
    GFD277416Courtesy of FORD MOTOR COMPANY

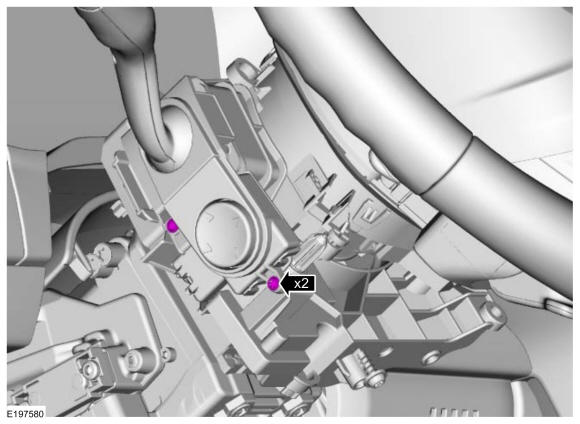

  3. Remove the screws.

    Torque: 27 lb.in (3 Nm)

    GFD277417Courtesy of FORD MOTOR COMPANY

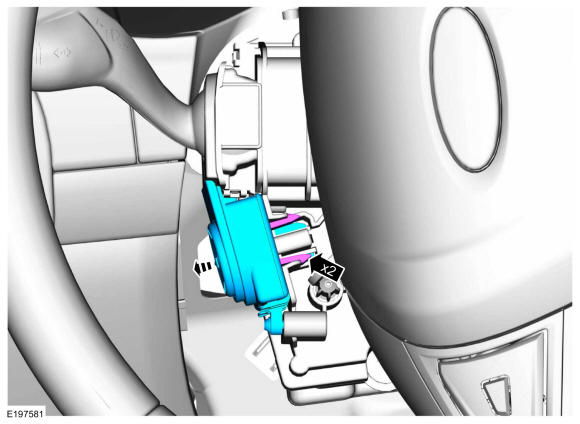

  4. Squeeze the tabs and remove the steering column control switch.
GFD277418Courtesy of FORD MOTOR COMPANY
