Steering Column Control Module (SCCM) - Vehicles With: Active Steering: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the steering wheel. Refer to: Steering Wheel - Vehicles With: Adaptive Steering .

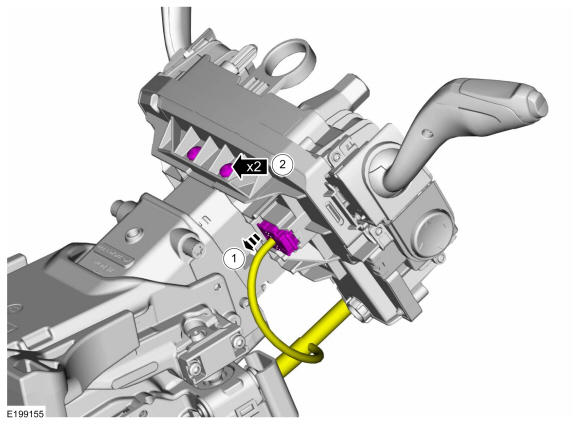

1. Disconnect the SCCM electrical connector.
2. Remove the SCCM screws.
  Torque: 27 lb.in (3 Nm)
Courtesy of FORD MOTOR COMPANY

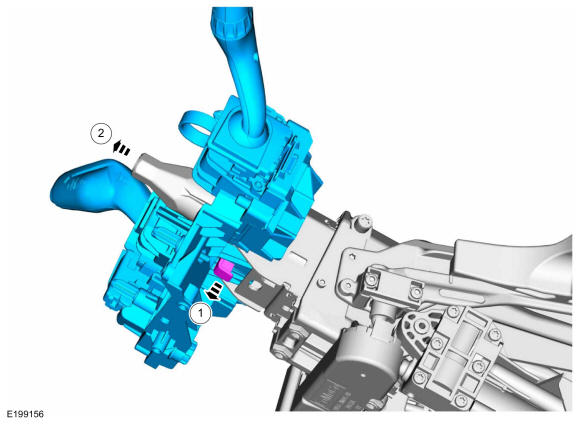

1. Release the SCCM retaining clip.
2. Remove the SCCM.

Courtesy of FORD MOTOR COMPANY
