Ignition Switch - Vehicles With: Keyless Vehicle System: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH center register. Refer to: Center Registers .

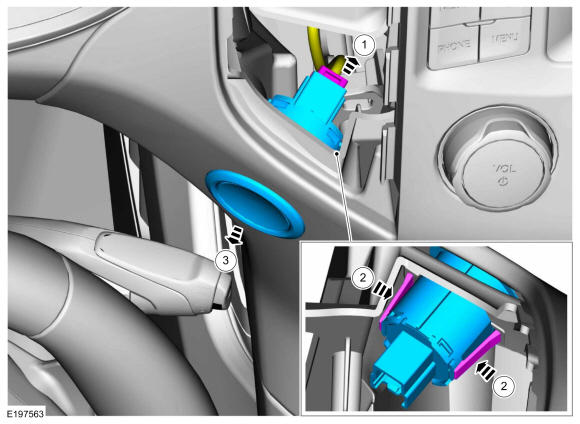

  2. Remove the push button ignition switch.

    1. Disconnect the push button ignition switch electrical connector.
    2. Release the push button ignition switch tabs.
    3. Push the push button ignition switch out of the instrument panel assembly.

GFD277415Courtesy of FORD MOTOR COMPANY
