Heated Steering Wheel Module (HSWM): Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current HSWM installed. If the current HSWM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the HSWM following the on-screen instructions.
Remove the driver knee airbag. Refer to: Driver Knee Airbag .
Remove the steering column shrouds. Refer to: Steering Column Shrouds .

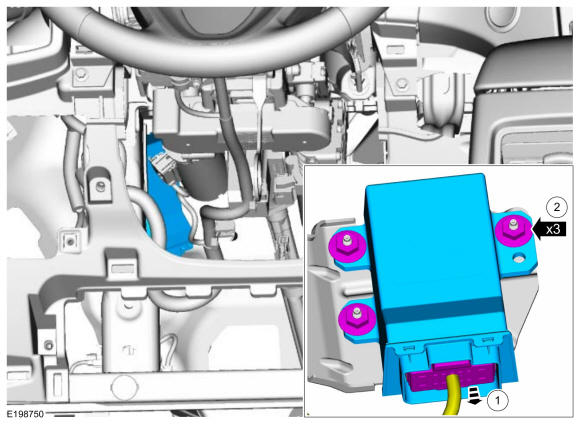

1. Disconnect the HSWM electrical connector.
2. Remove the HSWM mounting bolts and the HSWM.
  Torque: 80 lb.in (9 Nm)
