System Diagram - Steering Column Lock (if equipped)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

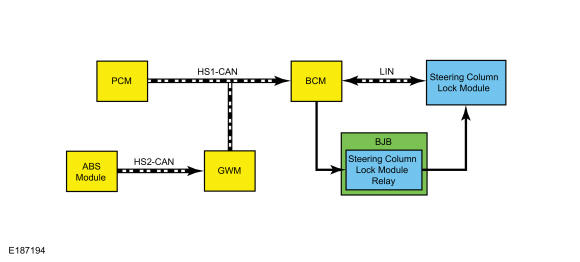

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
HS1-CAN |
| 2 |
LIN |
| 3 |
HS2-CAN |
| 4 |
BCM |
| 5 |
PCM |
| 6 |
Steering Column Lock Module |
| 7 |
BJB |
| 8 |
Steering Column Lock Module Relay |
| 9 |
ABS Module |
| 10 |
GWM |
