System Diagram - Push Button Ignition Switch

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

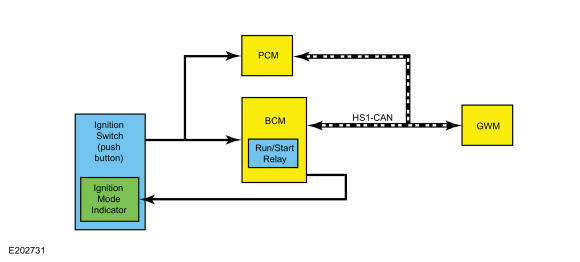

GFD277403Courtesy of FORD MOTOR COMPANY
GFD277404Courtesy of FORD MOTOR COMPANY
Item Description
1 HS1-CAN
2 Ignition Switch (push button)
3 GWM
4 PCM
5 Ignition Mode Indicator
6 BCM
7 Run/Start Relay
