System Diagram - Heated Steering Wheel (vehicles not equipped with adaptive steering)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

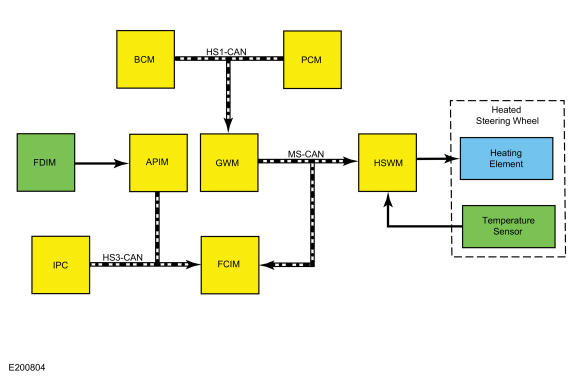

GFD277405Courtesy of FORD MOTOR COMPANY

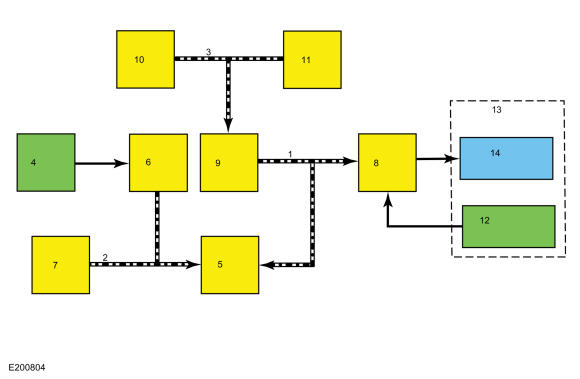

GFD277406Courtesy of FORD MOTOR COMPANY
Item Description
1 MS-CAN
2 HS3-CAN
3 HS1-CAN
4 FDIM
5 FCIM
6 APIM
7 IPC
8 HSWM
9 GWM
10 BCM
11 PCM
12 Temperature Sensor
13 Heated Steering Wheel
14 Heating Element
