Steering Column Tilt Motor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .

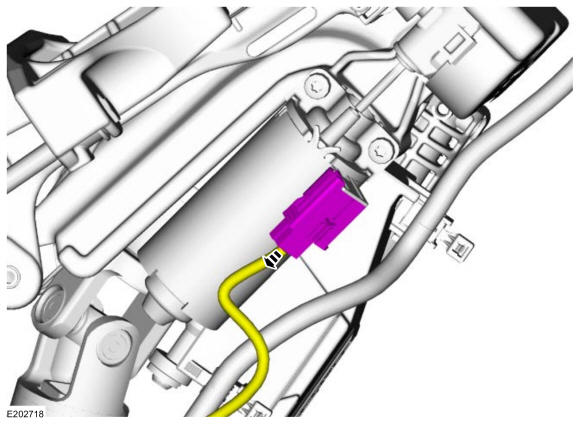

- Detach the tilt motor electrical connector.

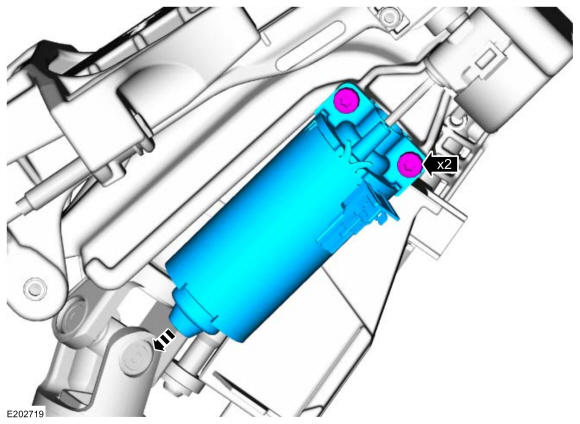

- Remove the screws and the tilt motor.
Torque: 62 lb.in (7 Nm)
