Rear Wheel Speed Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the wheel and tire. Refer to: Wheel and Tire .

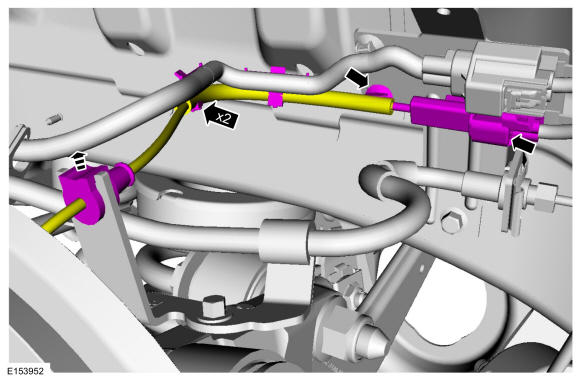

- Disconnect the electrical connector and detach the wiring retainers
All wheel drive (AWD) vehicles
-
NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

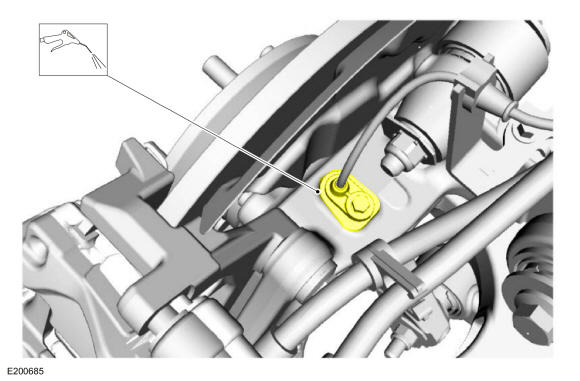

Using compressed air, clean the sensor housing area.

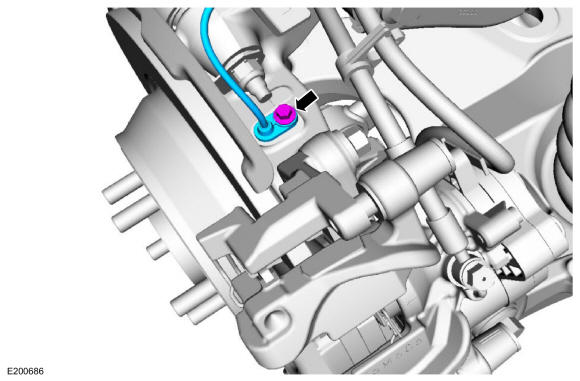

- Remove the bolt and the rear wheel speed sensor.
Torque: 80 lb.in (9 Nm)
Front wheel drive (FWD) vehicles
-
NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

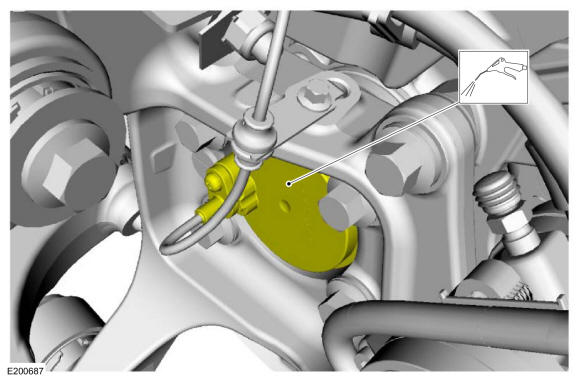

Using compressed air, clean the sensor housing area.

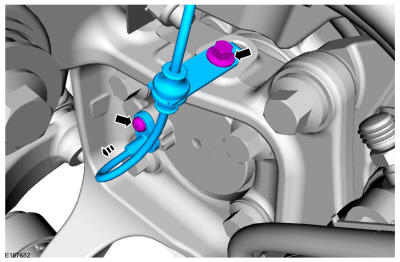

- Remove the harness bracket bolt, the sensor bolt and the rear wheel speed sensor.
Torque:
Wheel speed sensor harness bracket bolt: 80 lb.in (9 Nm)
Wheel speed sensor bolt: 48 lb.in (5.4 Nm)
