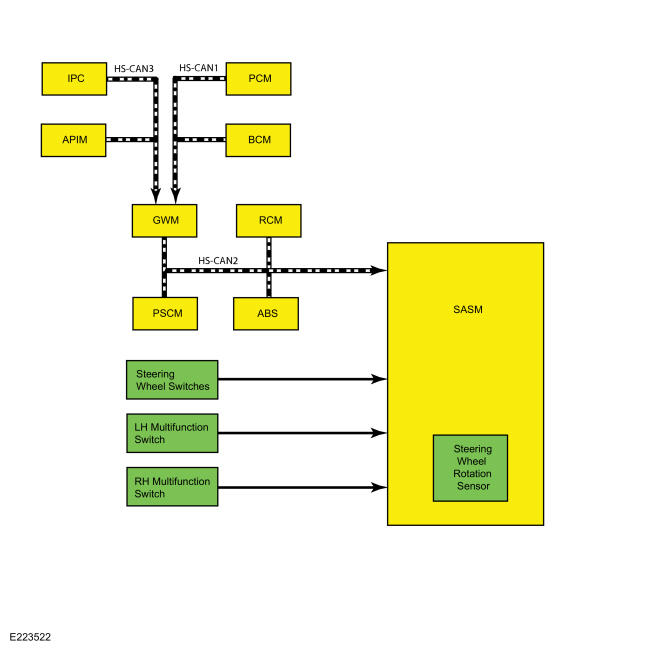

System Diagram: SASM
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

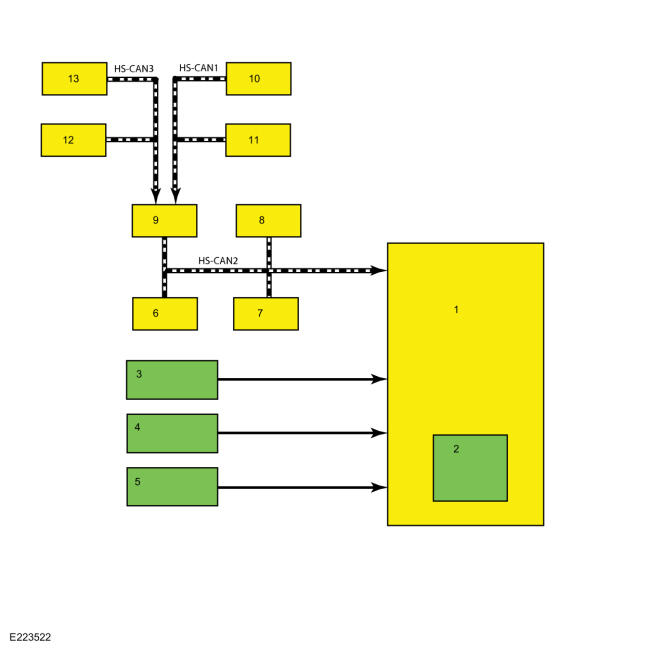

| Item |
Description |
| 1 |
SASM |
| 2 |
Steering wheel rotation sensor |
| 3 |
Steering wheel switches |
| 4 |
LH multifunction switch |
| 5 |
RH multifunction switch |
| 6 |
PSCM |
| 7 |
ABS module |
| 8 |
RCM |
| 9 |
GWM |
| 10 |
PCM |
| 11 |
BCM |
| 12 |
APIM |
| 13 |
IPC |
