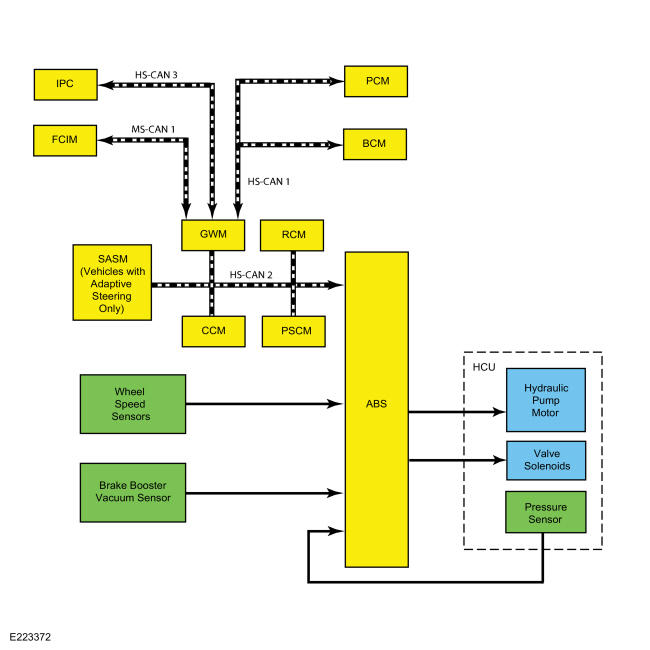

ABS Module
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Hydraulic pressure sensor |
| 2 |
HCU |
| 3 |
ABS module |
| 4 |
Hydraulic pump motor |
| 5 |
Brake booster vacuum sensor |
| 6 |
Wheel speed sensors |
| 7 |
Hydraulic valve solenoids |
| 8 |
GWM |
| 9 |
RCM |
| 10 |
PSCM |
| 11 |
BCM |
| 12 |
CCM |
| 13 |
PCM |
| 14 |
SASM (Vehicles with Adaptive Steering Only) |
| 15 |
IPC |
| 16 |
FCIM |
