Brake Vacuum Pump - 2.7L EcoBoost (238kW/324PS): Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the air cleaner outlet pipes. Refer to: Air Cleaner Outlet Pipe LH . Refer to: Air Cleaner Outlet Pipe RH .
-

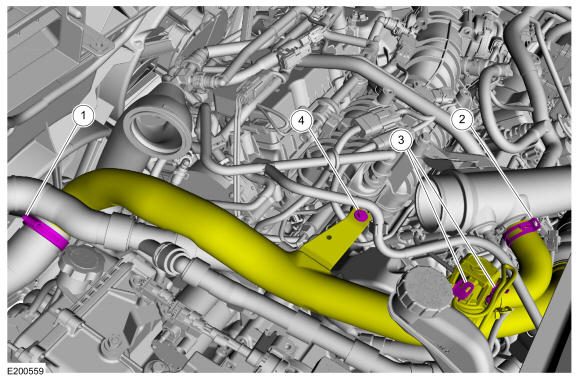

- Loosen the clamp and disconnect the pipe.
Torque: 44 lb.in (5 Nm)
- Release the clamp and disconnect the pipe.
- Disconnect the electrical connector and detach the wiring retainer.
- Remove the bolt and position the CAC intake pipe aside.
Torque: 71 lb.in (8 Nm)
- Loosen the clamp and disconnect the pipe.
- Disconnect the vacuum tubes.
- Detach the wiring retainer.

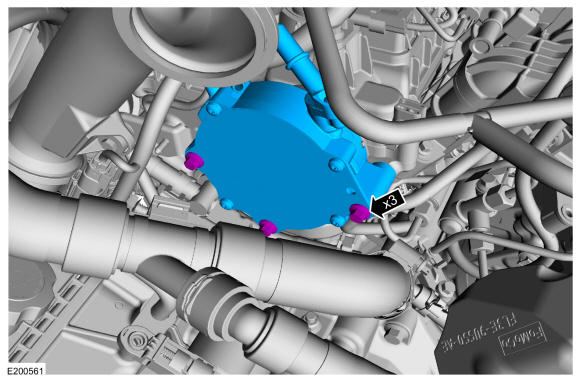

- Remove the bolts and the vacuum pump.
Torque: 89 lb.in (10 Nm)
