Brake Vacuum Pump - 2.0L EcoBoost (184kW/250PS) - MI4: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

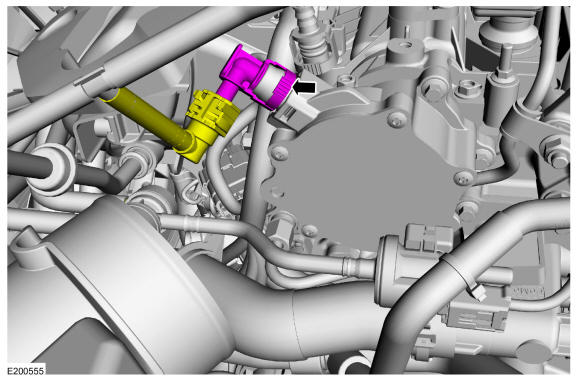

- Squeeze the sides of the coupling and disconnect the vacuum tube.

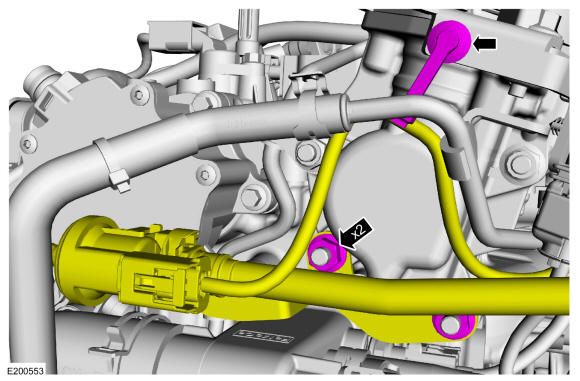

- Detach the wiring retainer, remove the nuts and position the EVAP purge valve and bracket aside.
Torque: 97 lb.in (11 Nm)

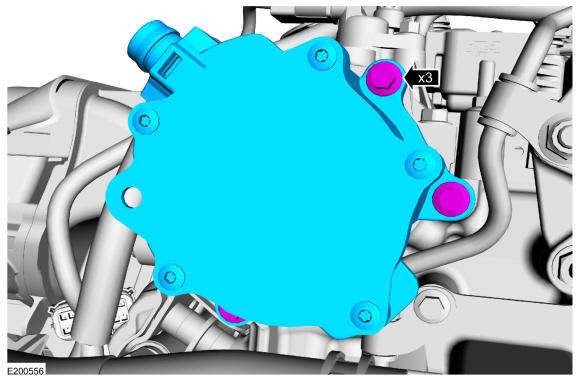

- Remove the bolts and the brake vacuum pump.
Torque: 89 lb.in (10 Nm)
