Brake Vacuum Pump - 2.0L EcoBoost (184kW/250PS) - MI4: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

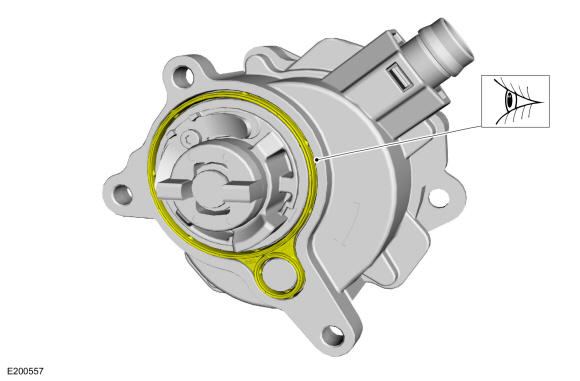

Inspect the gasket and install a new gasket as necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

To install, reverse the removal procedure.
