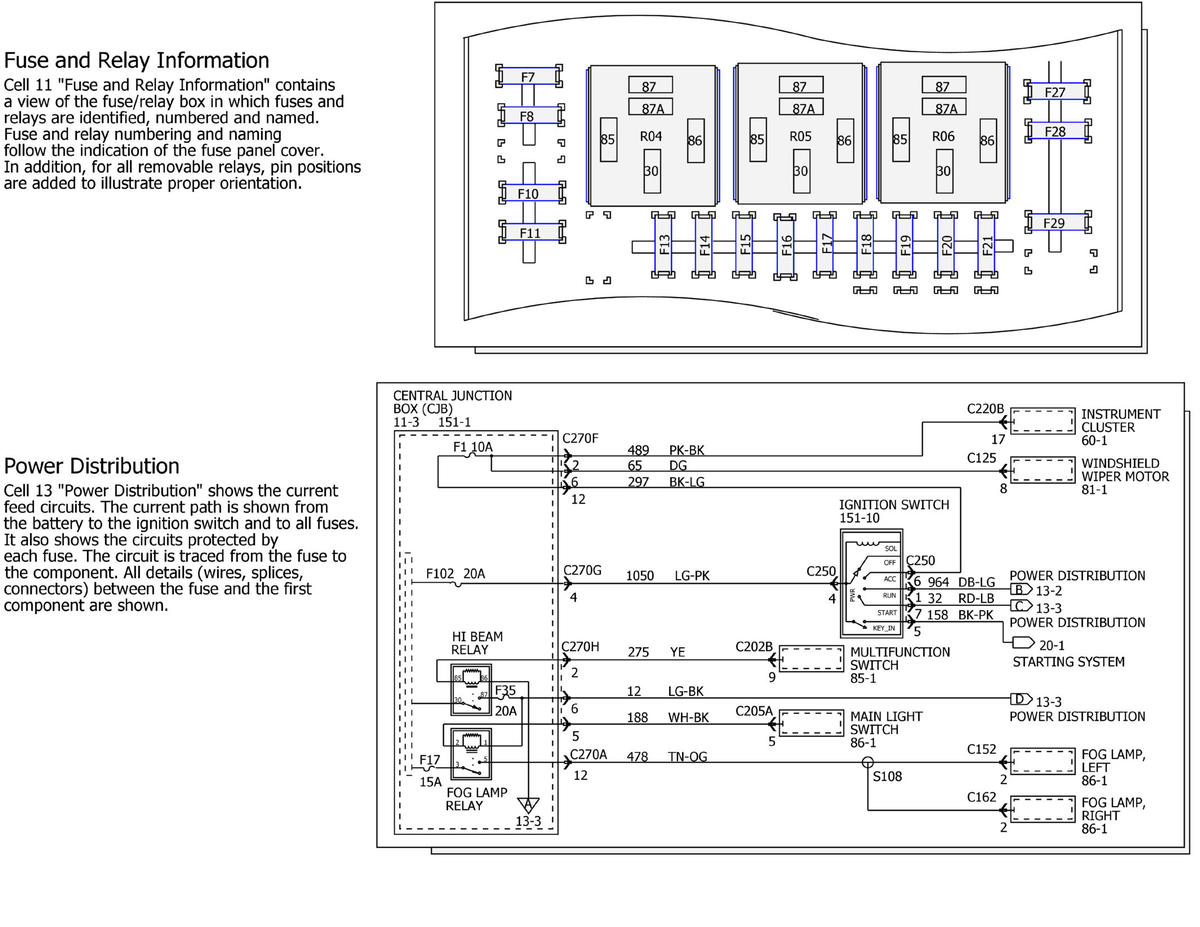

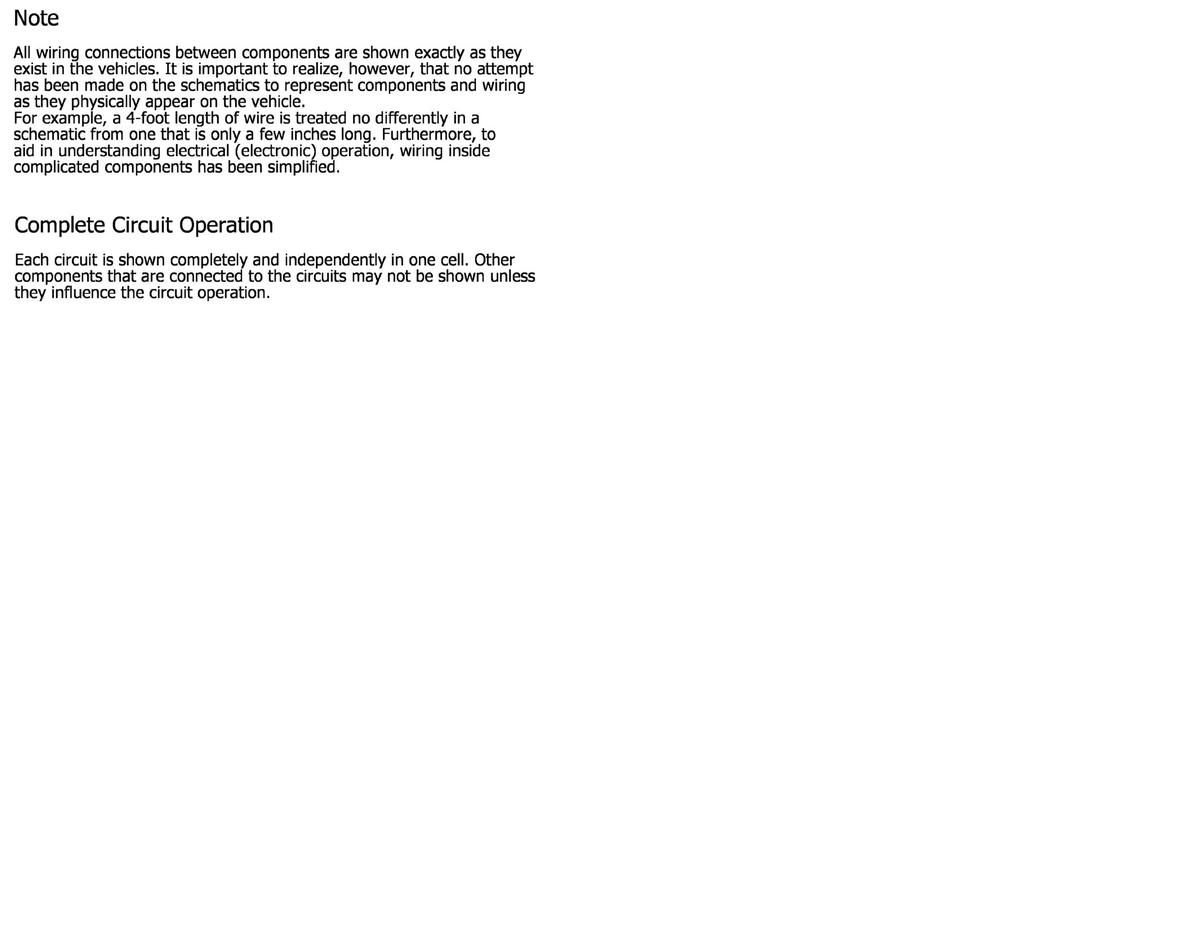

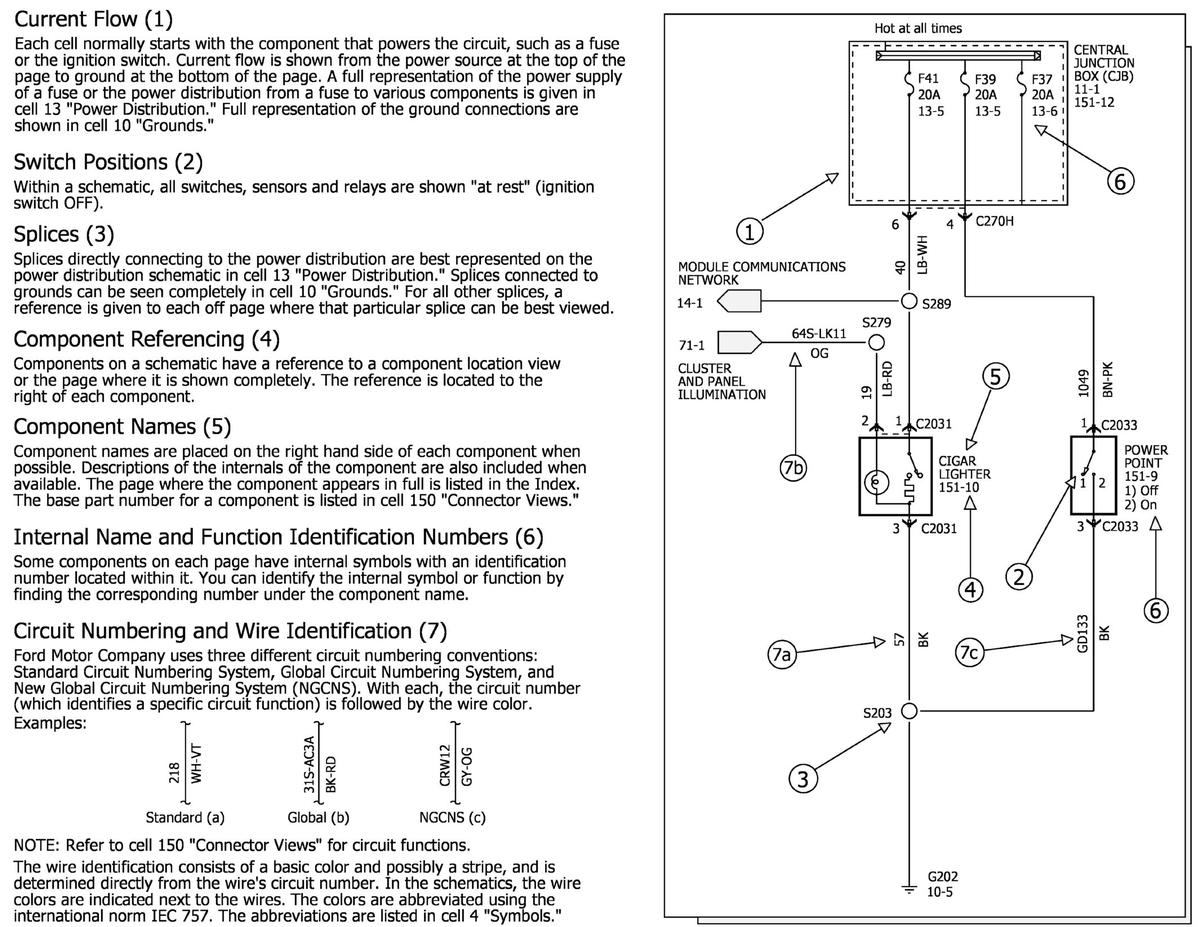

Section 3 (OEM Electrical Wiring Diagram Introduction): Introduction

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
