Brake Fluid Reservoir: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake master cylinder. Refer to: Brake Master Cylinder .

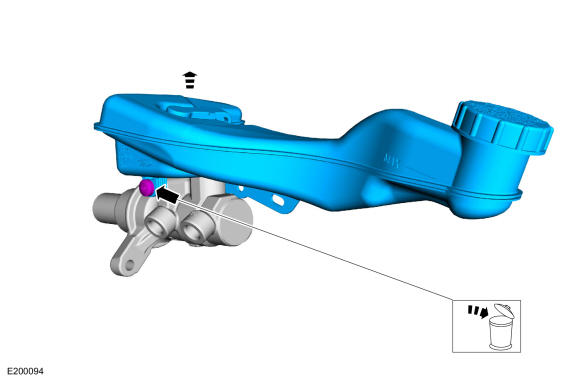

- Remove the pin and the brake fluid reservoir. Discard the pin.
Torque: 49 lb.in (5.5 Nm)
-
NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.

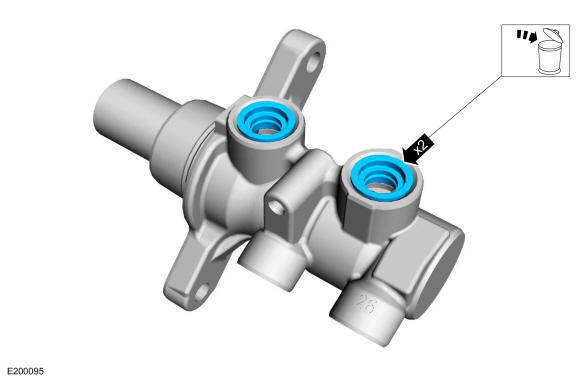

Remove and discard the brake fluid reservoir seals.
Material: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
