Parking Brake Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

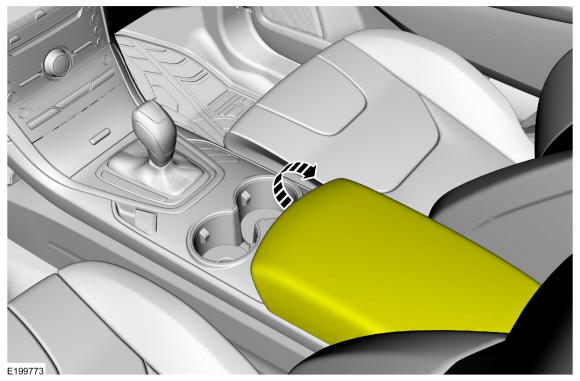

Open the floor console stowage bin lid.

Courtesy of FORD MOTOR COMPANY
On both sides. Detach the clips and remove the floor console upper finish panels.

Courtesy of FORD MOTOR COMPANY
Detach the clips and remove the lower center stack finish panel.

Courtesy of FORD MOTOR COMPANY
Detach the clips, disconnect the electrical connectors and remove the floor console upper trim panel.

Courtesy of FORD MOTOR COMPANY

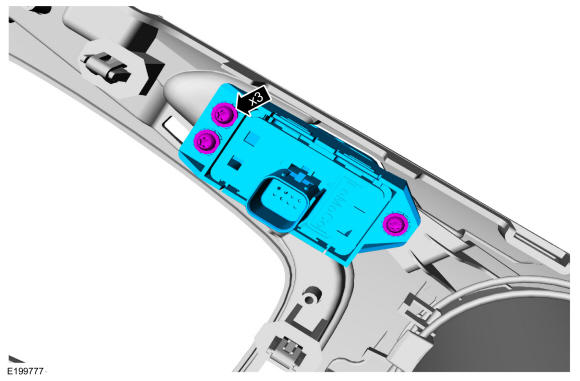

Remove the 3 screws and the EPB switch.

Courtesy of FORD MOTOR COMPANY
