Electronic Parking Brake (EPB) Manual Release

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Activation

NOTE: If the EPB cannot be released using the switch carry out the following procedure. If the battery is dead, jump start the battery to provide power and release the EPB using the switch.

NOTE: Typical parking brake actuator motor shown.

Block the wheels and tires.

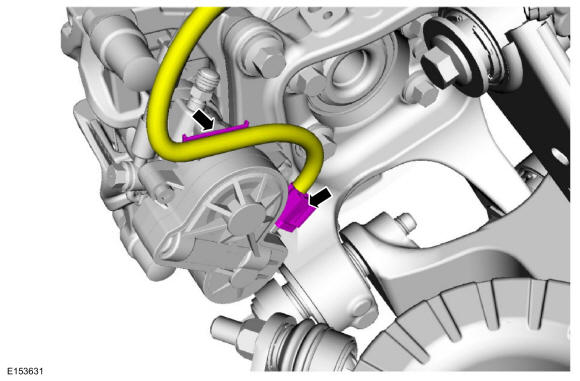

Disconnect the parking brake actuator motor electrical connector and, if equipped, detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

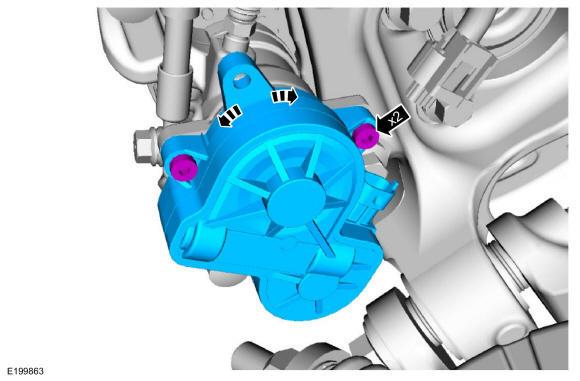

Remove the bolts and using a twisting motion, remove the parking brake actuator motor.

Courtesy of FORD MOTOR COMPANY

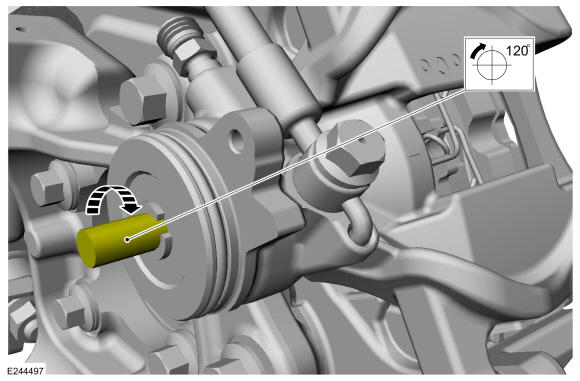

Rotate the ball screw driveshaft clockwise 120 degrees.

Courtesy of FORD MOTOR COMPANY
Repeat steps 2-4 on the opposite side of the vehicle.
Install the parking brake actuator motors. Refer to: Parking Brake Actuator Motor .
