Rear Brake Disc Shield: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake disc. Refer to: Brake Disc .

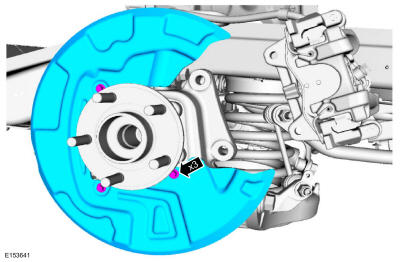

- Remove the bolts and the brake disc shield.
Torque: 106 lb.in (12 Nm)
