Front Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .

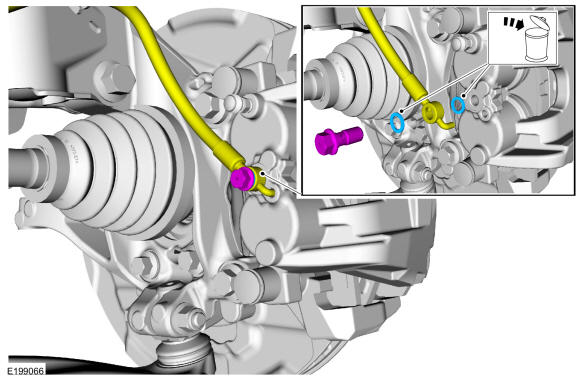

Remove the flow bolt and detach the front brake hose. Discard the washers.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

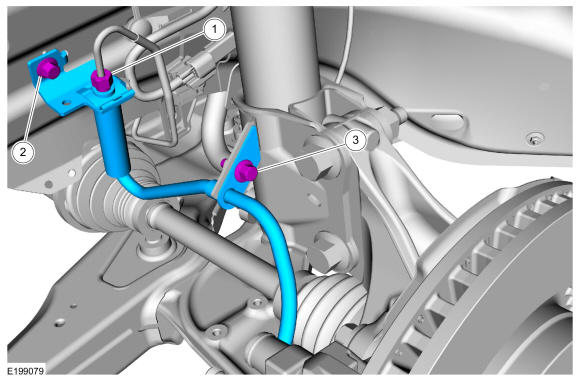

1. Disconnect the brake tube fitting.
  Torque: 159 lb.in (18 Nm)
2. Remove the bolt.
  Torque: 22 lb.ft (30 Nm)
3. Remove the bolt and the front brake flexible hose.
  Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
