Rear Halfshaft: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Never pick up or hold the halfshaft by only the inner or outer Constant Velocity (CV) joint. Damage to the CV joint will occur.

NOTE: Never use a hammer to remove or install the halfshafts. Damage to the CV joint may occur.

NOTE: Never use the halfshaft assembly as a lever to position other components. Damage to the halfshaft or CV joint may occur.

NOTE: Do not allow the boots to contact sharp edges or hot exhaust components. Damage to the halfshaft boots will occur.

NOTE: Do not drop assembled halfshafts. The impact may cut the boots from the inside without evidence of external damage.

Remove the wheel knuckle. Refer to: Wheel Knuckle - AWD .
NOTE: Slide hammer extension may be needed.

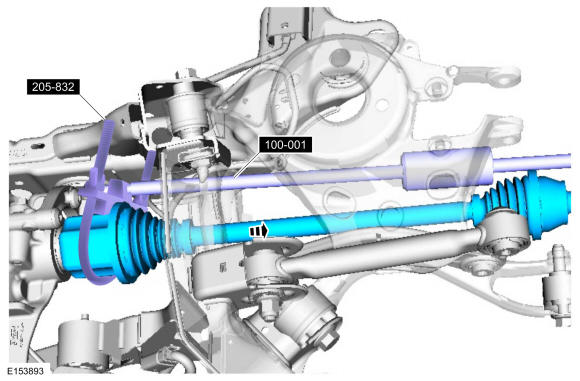

Using the special tools, remove the rear halfshaft. Use Special Service Tool: 205-832 Remover, Halfshaft, 100-001 (T50T-100-A) Slide Hammer., 205-243 Remover, Halfshaft.

Courtesy of FORD MOTOR COMPANY

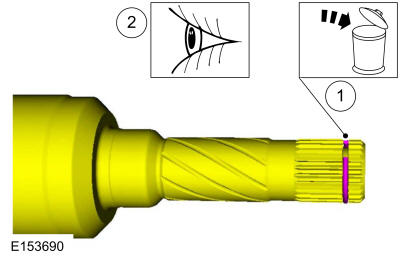

1. Remove and discard the halfshaft retaining circlip.
2. Inspect the halfshaft end for damage.

Courtesy of FORD MOTOR COMPANY
