Rear Driveshaft: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some removal steps may contain installation instructions.

All vehicles

Remove the muffler and tailpipe. For 2.0L, refer to: Muffler and Tailpipe . For 2.7L, refer to: Muffler and Tailpipe . For 3.5L, refer to: Muffler and Tailpipe .
If equipped, remove the retainers and the under body shield.

Courtesy of FORD MOTOR COMPANY

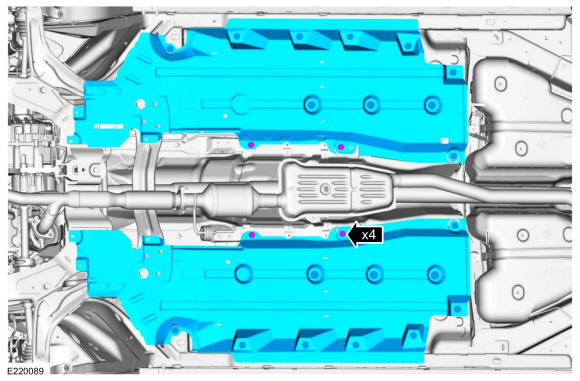

If equipped, remove the retainers and the dual under body shields.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the retainers and the center under body shield.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the underbody side shield retainers.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 4 bolt PTU flange
NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.

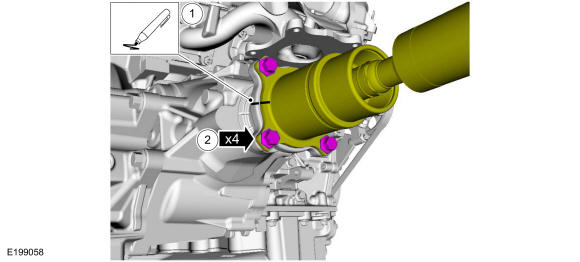

1. Mark the driveshaft and PTU flange alignment.
2. Remove the driveshaft to PTU bolts, and separate the driveshaft from the PTU.
Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 6 bolt PTU coupling flange

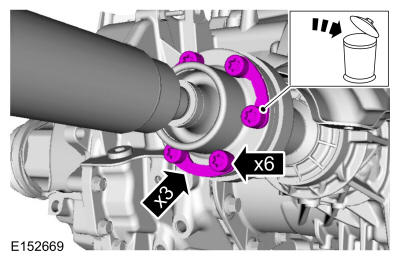

Remove and discard the driveshaft to PTU bolt and washer assemblies.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

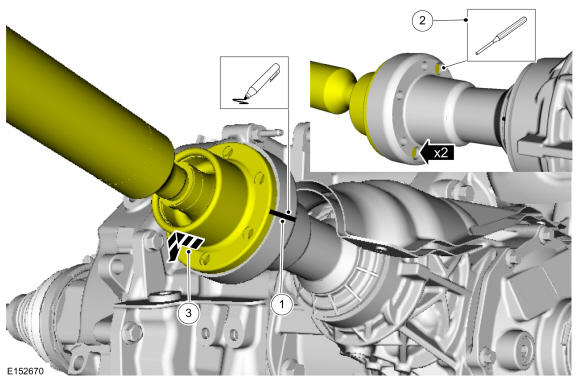

NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.
1. Mark the driveshaft and PTU flange alignment.
2. Using a punch and a copper hammer, separate the driveshaft from the PTU flange. Use the General Equipment: Punch. Use the General Equipment: Copper Hammer
3. Remove the driveshaft from the PTU flange.
Courtesy of FORD MOTOR COMPANY

All vehicles

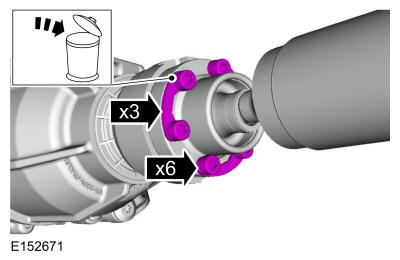

Remove and discard the driveshaft to RDU bolt and washer assemblies.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

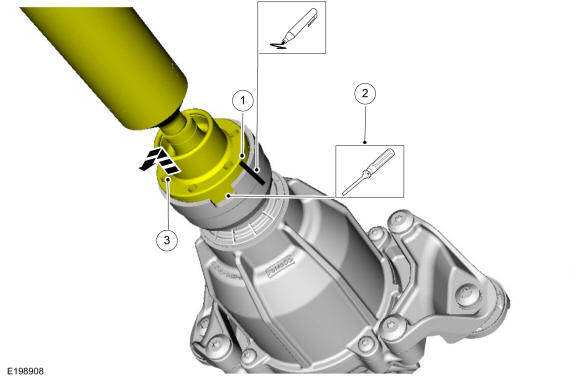

NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV-joint can result.
1. Mark the driveshaft and RDU flange alignment.
2. Using a flat blade screwdriver, separate the driveshaft from the RDU flange. Use the General Equipment: Flat-Bladed Screwdriver
3. Remove the driveshaft from the RDU flange.
Courtesy of FORD MOTOR COMPANY

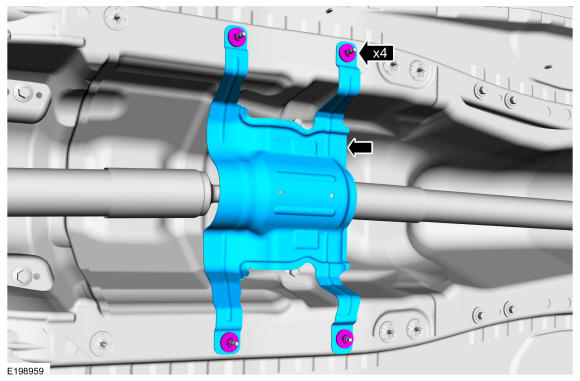

Remove the retainers and the center bearing heat shield.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

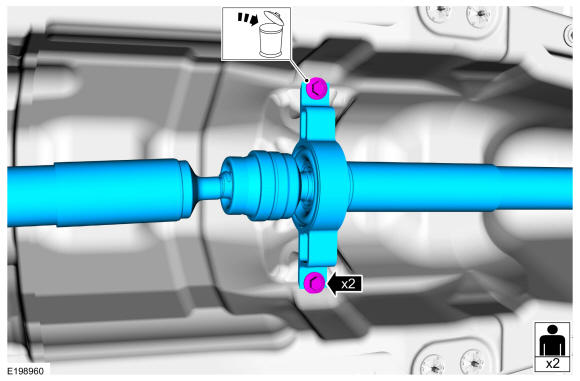

With the help from an assistant, remove and discard the center bearing bolts and remove the driveshaft.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
