Wheel Bearing and Wheel Hub - FWD: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-

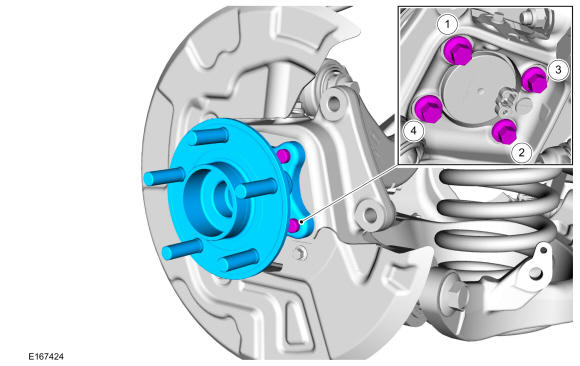

NOTE: Tighten in a cross pattern.
Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque: 98 lb.ft (133 Nm)
- Position the wheel speed sensor and install the wheel speed sensor screw.
Torque: 48 lb.in (5.4 Nm)
- Install the brake disc. Refer to: Brake Disc .
